Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit (HAK21030)
Catalog# HAK21030
Reacts with
-
Human

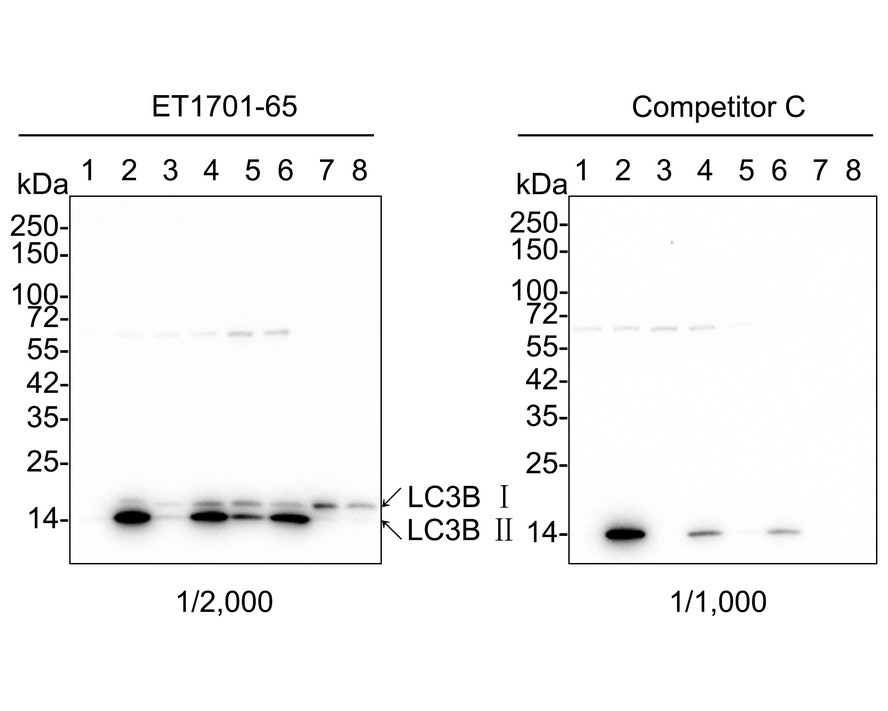

Western blot analysis of LC3B on different lysates with Rabbit anti-LC3B antibody (ET1701-65) at 1/2,000 dilution and competitor's antibody at 1/1,000 dilution.
Lane 1: HeLa cell lysate
Lane 2: HeLa treated with 50μM Chloroquine for 18 hours cell lysate
Lane 3: C2C12 cell lysate
Lane 4: C2C12 treated with 50μM Chloroquine for 18 hours cell lysate
Lane 5: C6 cell lysate
Lane 6: C6 treated with 50μM Chloroquine for 18 hours cell lysate
Lysates/proteins at 20 µg/Lane.
Predicted band size: 14/16 kDa
Observed band size: 14/16 kDa
Exposure time: 3 minutes;
4-20% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1701-65) at 1/2,000 dilution and competitor's antibody at 1/1,000 dilution were used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.
Lane 1: HeLa cell lysate
Lane 2: HeLa treated with 50μM Chloroquine for 18 hours cell lysate
Lane 3: C2C12 cell lysate
Lane 4: C2C12 treated with 50μM Chloroquine for 18 hours cell lysate
Lane 5: C6 cell lysate
Lane 6: C6 treated with 50μM Chloroquine for 18 hours cell lysate
Lysates/proteins at 20 µg/Lane.
Predicted band size: 14/16 kDa
Observed band size: 14/16 kDa
Exposure time: 3 minutes;
4-20% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1701-65) at 1/2,000 dilution and competitor's antibody at 1/1,000 dilution were used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.
