GRP78 / BIP Rabbit Polyclonal Antibody

Usd: 315

Specification

Bulk Order Quote | Customization Request

Catalog# ER40402

GRP78 / BIP Rabbit Polyclonal Antibody

Application

  • WB

  • IF-Cell

  • IHC-P

  • FC

Reactivity

  • Human

  • Mouse

  • Rat

Conjugation

  • unconjugated

This product has been cited in peer reviewed publications, see list HERE

Overview

Product Name

GRP78 / BIP Rabbit Polyclonal Antibody

Antibody Type

Rabbit Polyclonal Antibody

Immunogen

Synthetic peptide within C-terminal human GRP78.

Species Reactivity

Human, Mouse, Rat

Validated Applications

WB, IF-Cell, IHC-P, FC

Target Molecular Weight

Predicted band size: 72 kDa

Positive Control

Hela cell lysate, MCF-7 cell lysate, A549 cell lysate, mouse heart tissue lysate, rat brain tissue lysate, SK-Br-3, HepG2, Hela, rat small intestine tissue, human breast carcinoma tissue.

Conjugation

unconjugated

RRID

AB_3069578

Product Features

Form

Liquid

Concentration

1 mg/mL.(The concentration of this product may be batch-dependent)

Storage Instructions

Store at +4℃ after thawing. Aliquot store at -20℃ or -80℃. Avoid repeated freeze / thaw cycles.

Storage Buffer

1*PBS (pH7.4), 0.2% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG

Purification Method

Immunogen affinity purified.

Application Dilution

  • WB

  • 1:500-1:2,000

  • IF-Cell

  • 1:50-1:200

  • IHC-P

  • 1:50-1:200

  • FC

  • 1:100-1:200

Target

Function

Binding immunoglobulin protein (BiP) also known as 78 kDa glucose-regulated protein (GRP-78) or heat shock 70 kDa protein 5 (HSPA5) is a protein that in humans is encoded by the HSPA5 gene. BiP is a HSP70 molecular chaperone located in the lumen of the endoplasmic reticulum (ER) that binds newly synthesized proteins as they are translocated into the ER, and maintains them in a state competent for subsequent folding and oligomerization. BiP is also an essential component of the translocation machinery, as well as playing a role in retrograde transport across the ER membrane of aberrant proteins destined for degradation by the proteasome. Like many stress and heat shock proteins, BiP/GRP78 has potent immunological activity when released from the internal environment of the cell into the extracelluar space.specifically, it feeds anti-inflammatory and pro-resolutory signals into immune networks, thus helping to resolve inflammation.

Background References

1. "Human XTP3-B forms an endoplasmic reticulum quality control scaffold with the HRD1-SEL1L ubiquitin ligase complex and BiP." Hosokawa N., Wada I., Nagasawa K., Moriyama T., Okawa K., Nagata K. J. Biol. Chem. 283:20914-20924(2008)

2. "Crystal structures of the ATPase domains of four human Hsp70 isoforms: HSPA1L/Hsp70-hom, HSPA2/Hsp70-2, HSPA6/Hsp70B\', and HSPA5/BiP/GRP78." Wisniewska M., Karlberg T., Lehtio L., Johansson I., Kotenyova T., Moche M., Schuler H. PLoS ONE 5:E8625-E8625(2010)

3. "Adenosine-derived inhibitors of 78 kDa glucose regulated protein (Grp78) ATPase: insights into isoform selectivity." Macias A.T., Williamson D.S., Allen N., Borgognoni J., Clay A., Daniels Z., Dokurno P., Drysdale M.J., Francis G.L., Graham C.J., Howes R., Matassova N., Murray J.B., Parsons R., Shaw T., Surgenor A.E., Terry L., Wang Y., Wood M., Massey A.J. J. Med. Chem. 54:4034-4041(2011)

Sequence Similarity

Belongs to the heat shock protein 70 family.

Post-translational Modification

AMPylated by FICD. In unstressed cells, AMPylation at Thr-518 by FICD inactivates the chaperome activity: AMPylated form is locked in a relatively inert state and only weakly stimulated by J domain-containing proteins (By similarity). In response to endoplasmic reticulum stress, de-AMPylation by the same protein, FICD, restores the chaperone activity (By similarity).

Subcellular Location

Cytoplasm, Endoplasmic reticulum.

UNIPROT

SwissProt: P11021 Human

SwissProt: P20029 Mouse

SwissProt: P06761 Rat

Synonyms

78 kDa glucose regulated protein antibody

78 kDa glucose-regulated protein antibody

AL022860 antibody

AU019543 antibody

BIP antibody

D2Wsu141e antibody

D2Wsu17e antibody

Endoplasmic reticulum lumenal Ca(2+)-binding protein grp78 antibody

Endoplasmic reticulum lumenal Ca2+ binding protein grp78 antibody

Epididymis secretory sperm binding protein Li 89n antibody

Expand

Images

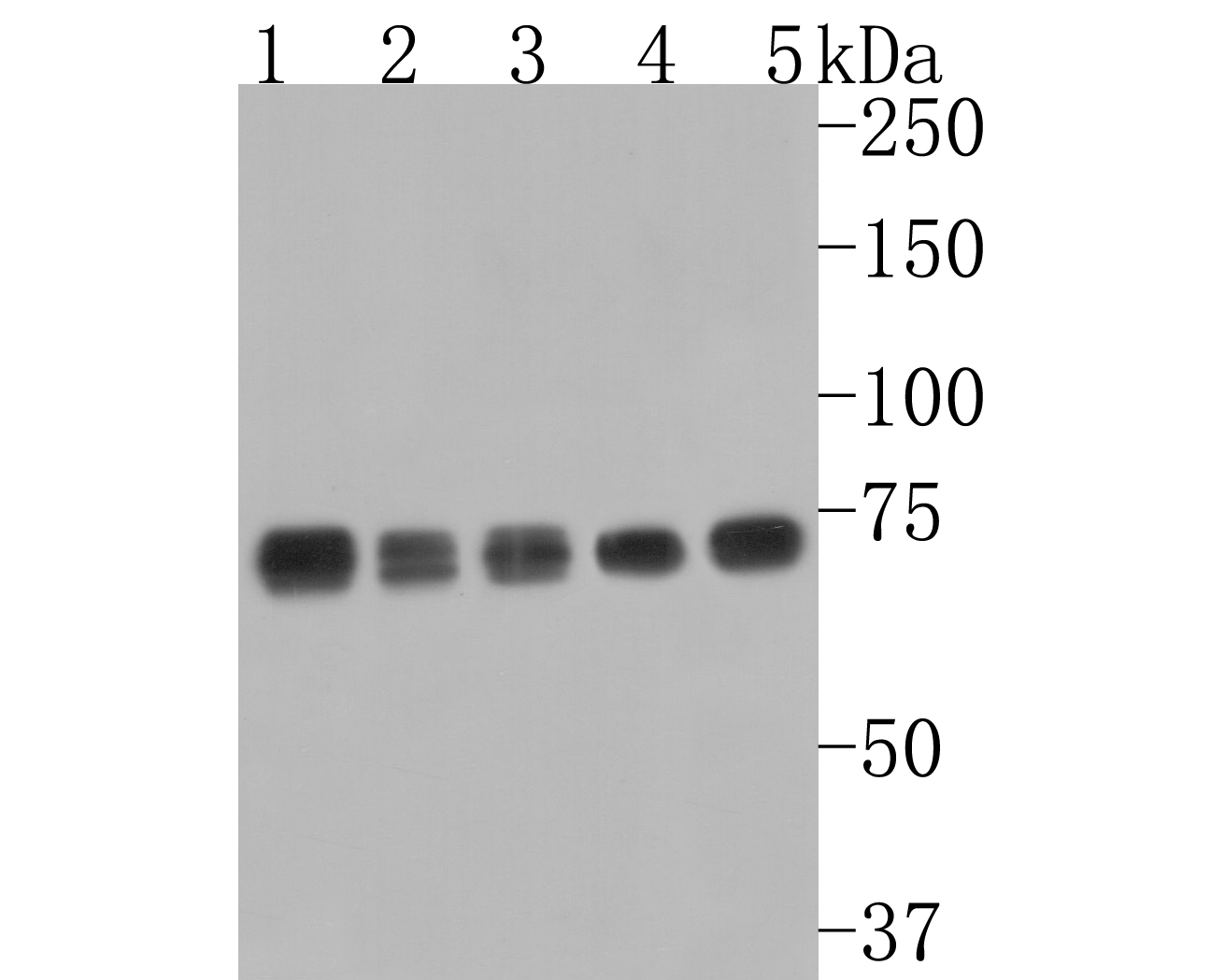

  • Western blot analysis of GRP78 / BIP on different lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ER40402, 1/1,000) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1:200,000 dilution was used for 1 hour at room temperature.<br />Positive control: <br />Lane 1: Hela cell lysate<br />Lane 2: MCF-7 cell lysate<br />Lane 3: A549 cell lysate<br />Lane 4: Mouse heart tissue lysate<br />Lane 5: Rat brain tissue lysate

    Western blot analysis of GRP78 / BIP on different lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ER40402, 1/1,000) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:200,000 dilution was used for 1 hour at room temperature.
    Positive control:
    Lane 1: Hela cell lysate
    Lane 2: MCF-7 cell lysate
    Lane 3: A549 cell lysate
    Lane 4: Mouse heart tissue lysate
    Lane 5: Rat brain tissue lysate

  • ICC staining of GRP78 / BIP in SK-Br-3 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (ER40402, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor&reg;488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

    ICC staining of GRP78 / BIP in SK-Br-3 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (ER40402, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

  • ICC staining of GRP78 / BIP in HepG2 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (ER40402, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor&reg;488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

    ICC staining of GRP78 / BIP in HepG2 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (ER40402, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

  • ICC staining of GRP78 / BIP in Hela cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (ER40402, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor&reg;488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

    ICC staining of GRP78 / BIP in Hela cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (ER40402, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

  • Immunohistochemical analysis of paraffin-embedded rat small intestine tissue using anti-GRP78 / BIP antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (ER40402, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat small intestine tissue using anti-GRP78 / BIP antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER40402, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded human breast carcinoma tissue using anti-GRP78 / BIP antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (ER40402, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human breast carcinoma tissue using anti-GRP78 / BIP antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER40402, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
