TMEM192 Recombinant Rabbit Monoclonal Antibody [JE64-89] - BSA and Azide free

Usd: 649

Specification

Bulk Order Quote | Customization Request

Catalog# HA750474

TMEM192 Recombinant Rabbit Monoclonal Antibody [JE64-89] - BSA and Azide free

Application

  • WB

  • IHC-P

Reactivity

  • Human

  • Mouse

  • Rat

With BSA and Azide
Conjugation

  • unconjugated

Overview

Product Name

TMEM192 Recombinant Rabbit Monoclonal Antibody [JE64-89] - BSA and Azide free

Antibody Type

Recombinant Rabbit monoclonal Antibody

Immunogen

Recombinant protein within human TMEM192 aa 1-271/271.

Species Reactivity

Human, Mouse, Rat

Validated Applications

WB, IHC-P

Molecular Weight

Predicted band size: 31 kDa

Positive Control

HepG2 cell lysate, U-87 MG cell lysate, MCF7 cell lysate, Mouse testis tissue lysate, Rat testis tissue lysate, human prostate cancer tissue, human kidney tissue, mouse kidney tissue, rat kidney tissue.

Conjugation

unconjugated

Clone Number

JE64-89

Product Features

Form

Liquid

Concentration

1mg/ml

Storage Instructions

Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles.

Storage Buffer

1*PBS (pH7.4).

Isotype

IgG

Purification Method

Protein A affinity purified.

Application Dilution

  • WB

  • 1:1,000-1:2,000

  • IHC-P

  • 1:1,000

Target

Function

TMEM192 is a widely expressed, four transmembrane protein that localizes to late endosomal/lysosomal membranes. This localization is mediated by two dileucine motifs present at the amino-terminus of TMEM192. A cysteine residue near the carboxy residue is responsible for disulfide bond formation in TMEM192 homodimers. Little is known about the function of this protein.

Background References

1. Nguyen TL. et. al. Functional characterization of the lysosomal membrane protein TMEM192 in mice. Oncotarget. 2017 Jul

2. Shyu RY. et. al. Tazarotene-Induced Gene 1 Enhanced Cervical Cell Autophagy through Transmembrane Protein 192. Mol Cells. 2016 Dec

Subcellular Location

Late endosome, Lysosome membrane.

UNIPROT

SwissProt: Q8IY95 Human

SwissProt: Q9CXT7 Mouse

SwissProt: Q5U1Y0 Rat

Synonyms

FLJ38482 antibody

TM192_HUMAN antibody

TMEM192 antibody

Transmembrane protein 192 antibody

Images

  • <span style="font-weight: bold;">☑ Knockdown (KD)</span><br /><br />Western blot analysis of TMEM192 on different lysates with Rabbit anti-TMEM192 antibody (<a href="/products/HA750474" style="font-weight: bold;text-decoration: underline;">HA750474</a>) at 1/2,000 dilution.<br /><br />Lane 1: HAP1-parental cell lysate<br />Lane 2: HAP1-TMEM192 KD cell lysate<br /><br />Lysates/proteins at 10 µg/Lane.<br /><br />Predicted band size: 31 kDa<br />Observed band size: 31 kDa<br /><br />Exposure time: 20 seconds; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA750474" style="font-weight: bold;text-decoration: underline;">HA750474</a>) at 1/2,000 dilution was used in <a href="/products/K1803" style="font-weight: bold;text-decoration: underline;">K1803</a> at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

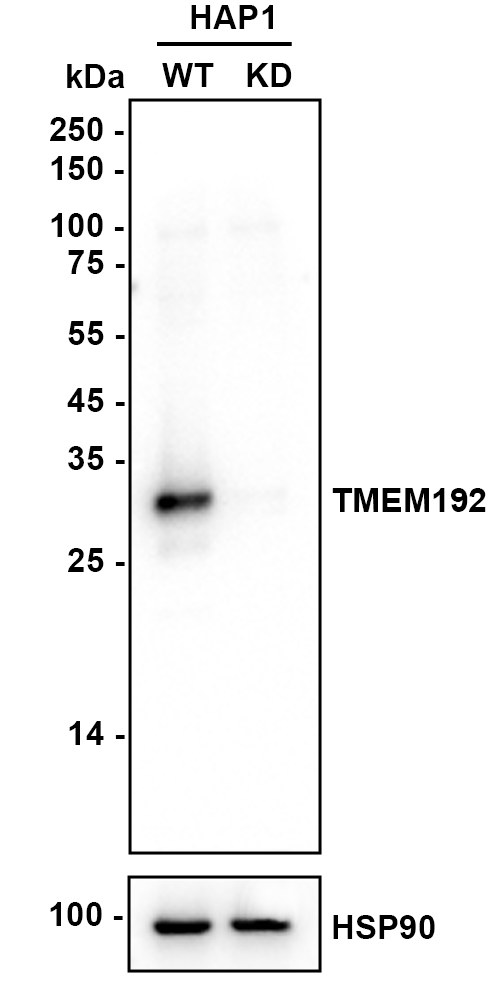

    ☑ Knockdown (KD)

    Western blot analysis of TMEM192 on different lysates with Rabbit anti-TMEM192 antibody (HA750474) at 1/2,000 dilution.

    Lane 1: HAP1-parental cell lysate
    Lane 2: HAP1-TMEM192 KD cell lysate

    Lysates/proteins at 10 µg/Lane.

    Predicted band size: 31 kDa
    Observed band size: 31 kDa

    Exposure time: 20 seconds; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750474) at 1/2,000 dilution was used in K1803 at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • Western blot analysis of TMEM192 on different lysates with Rabbit anti-TMEM192 antibody (<a href="/products/HA750474" style="font-weight: bold;text-decoration: underline;">HA750474</a>) at 1/1,000 dilution.<br /><br />Lane 1: HepG2 cell lysate (10 µg/Lane)<br />Lane 2: U-87 MG cell lysate (10 µg/Lane)<br />Lane 3: MCF7 cell lysate (10 µg/Lane)<br />Lane 4: Mouse testis tissue lysate (20 µg/Lane)<br />Lane 5: Rat testis tissue lysate (20 µg/Lane)<br /><br />Predicted band size: 31 kDa<br />Observed band size: 31 kDa<br /><br />Exposure time: 25 seconds; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA750474" style="font-weight: bold;text-decoration: underline;">HA750474</a>) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

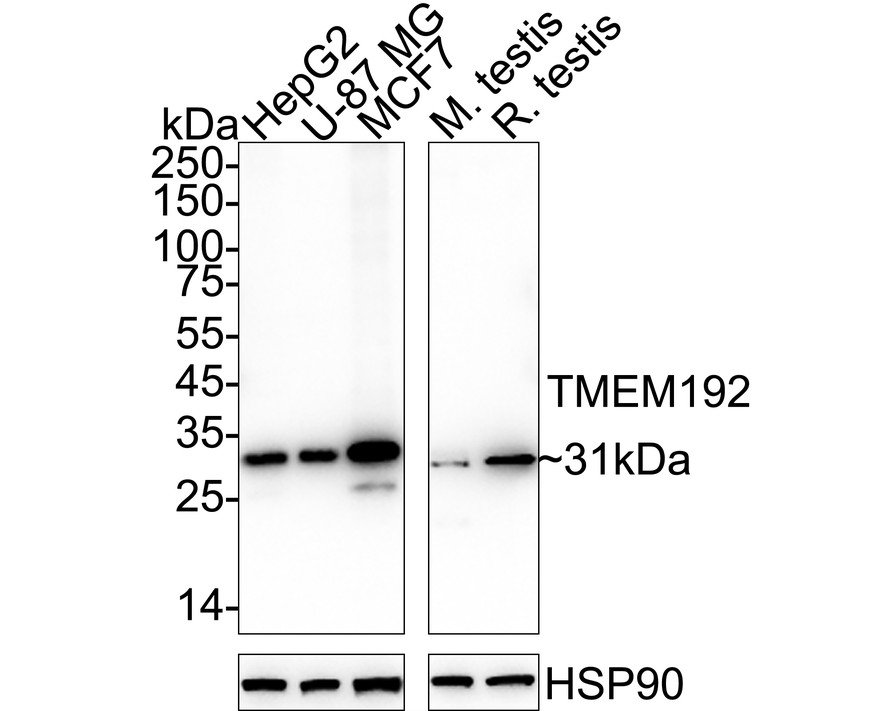

    Western blot analysis of TMEM192 on different lysates with Rabbit anti-TMEM192 antibody (HA750474) at 1/1,000 dilution.

    Lane 1: HepG2 cell lysate (10 µg/Lane)
    Lane 2: U-87 MG cell lysate (10 µg/Lane)
    Lane 3: MCF7 cell lysate (10 µg/Lane)
    Lane 4: Mouse testis tissue lysate (20 µg/Lane)
    Lane 5: Rat testis tissue lysate (20 µg/Lane)

    Predicted band size: 31 kDa
    Observed band size: 31 kDa

    Exposure time: 25 seconds; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750474) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • Immunohistochemical analysis of paraffin-embedded human prostate cancer tissue with Rabbit anti-TMEM192 antibody (<a href="/products/HA750474" style="font-weight: bold;text-decoration: underline;">HA750474</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA750474" style="font-weight: bold;text-decoration: underline;">HA750474</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human prostate cancer tissue with Rabbit anti-TMEM192 antibody (HA750474) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750474) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-TMEM192 antibody (<a href="/products/HA750474" style="font-weight: bold;text-decoration: underline;">HA750474</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA750474" style="font-weight: bold;text-decoration: underline;">HA750474</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-TMEM192 antibody (HA750474) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750474) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-TMEM192 antibody (<a href="/products/HA750474" style="font-weight: bold;text-decoration: underline;">HA750474</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA750474" style="font-weight: bold;text-decoration: underline;">HA750474</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-TMEM192 antibody (HA750474) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750474) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-TMEM192 antibody (<a href="/products/HA750474" style="font-weight: bold;text-decoration: underline;">HA750474</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA750474" style="font-weight: bold;text-decoration: underline;">HA750474</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-TMEM192 antibody (HA750474) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750474) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
