TYK2 Recombinant Rabbit Monoclonal Antibody [PSH18-53] - BSA and Azide free

Usd: 649

Specification

Bulk Order Quote | Customization Request

Catalog# HA751677

TYK2 Recombinant Rabbit Monoclonal Antibody [PSH18-53] - BSA and Azide free

Application

  • WB

  • IHC-P

  • IF-Cell

  • FC(Intra)

Reactivity

  • Human

  • Mouse

  • Rat

  • Green monkey

With BSA and Azide
Conjugation

  • unconjugated

Overview

Product Name

TYK2 Recombinant Rabbit Monoclonal Antibody [PSH18-53] - BSA and Azide free

Antibody Type

Recombinant Rabbit monoclonal Antibody

Immunogen

Recombinant protein within human TYK2 aa 832-1,187.

Species Reactivity

Human, Mouse, Rat, Green monkey

Validated Applications

WB, IHC-P, IF-Cell, FC(Intra)

Target Molecular Weight

Predicted band size: 134 kDa

Positive Control

HeLa cell lysate, HepG2 cell lysate, Neuro-2a cell lysate, PC-12 cell lysate, COS-1 cell lysate, mouse lung tissue lysate, rat lung tissue lysate, human kidney tissue, human lung tissue, mouse kidney tissue, mouse lung tissue, rat kidney tissue, rat lung tissue.

Conjugation

unconjugated

Clone Number

PSH18-53

Product Features

Form

Liquid

Concentration

1mg/ml

Storage Instructions

Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles.

Storage Buffer

1*PBS (pH7.4).

Isotype

IgG

Purification Method

Protein A affinity purified.

Application Dilution

  • WB

  • 1:5,000

  • IHC-P

  • 1:200-1:1,000

  • IF-Cell

  • 1:100

  • FC(Intra)

  • 1:1,000

Target

Function

Tyrosine kinase of the non-receptor type involved in numerous cytokines and interferons signaling, which regulates cell growth, development, cell migration, innate and adaptive immunity Plays both structural and catalytic roles in numerous interleukins and interferons (IFN-alpha/beta) signaling 6. Associates with heterodimeric cytokine receptor complexes and activates STAT family members including STAT1, STAT3, STAT4 or STAT6. The heterodimeric cytokine receptor complexes are composed of a TYK2-associated receptor chain (IFNAR1, IL12RB1, IL10RB or IL13RA1), and a second receptor chain associated either with JAK1 or JAK2 9, 10, 11, 12. In response to cytokine-binding to receptors, phosphorylates and activates receptors (IFNAR1, IL12RB1, IL10RB or IL13RA1), creating docking sites for STAT members . In turn, recruited STATs are phosphorylated by TYK2 (or JAK1/JAK2 on the second receptor chain), form homo- and heterodimers, translocate to the nucleus, and regulate cytokine/growth factor responsive genes . Negatively regulates STAT3 activity by promototing phosphorylation at a specific tyrosine that differs from the site used for signaling

Background References

1. Morand E et al. TYK2: an emerging therapeutic target in rheumatic disease. Nat Rev Rheumatol. 2024 Apr

2. Rusiñol L et al. Tyk2 Targeting in Immune-Mediated Inflammatory Diseases. Int J Mol Sci. 2023 Feb

Subcellular Location

Cytoskeleton. Nucleus. Cytosol. Plasma membrane.

UNIPROT

SwissProt: P29597 Human

SwissProt: Q9R117 Mouse

SwissProt: D3ZD03 Rat

SwissProt: A0A5F7ZPU9 Monkey

Synonyms

JTK 1 antibody

JTK1 antibody

Non receptor tyrosine protein kinase 2 antibody

Non receptor tyrosine protein kinase TYK2 antibody

Non-receptor tyrosine-protein kinase TYK2 antibody

OTTHUMP00000232745 antibody

OTTHUMP00000232746 antibody

OTTHUMP00000232748 antibody

Protein Tyrosine Kinase 2 antibody

TYK 2 antibody

Expand

Images

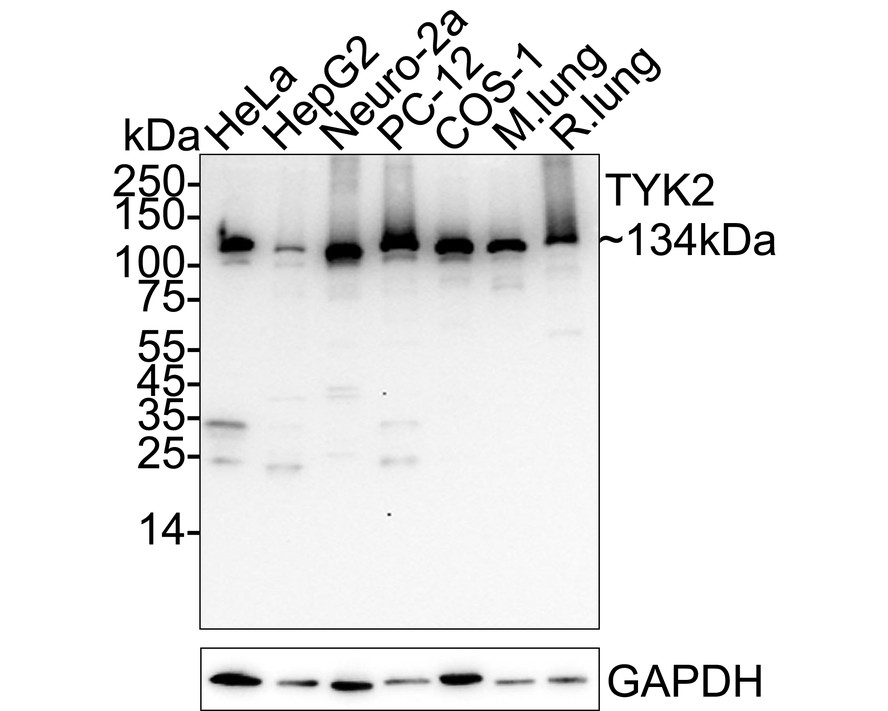

  • Western blot analysis of TYK2 on different lysates with Rabbit anti-TYK2 antibody (<a href="/products/HA751677" style="font-weight: bold;text-decoration: underline;">HA751677</a>) at 1/5,000 dilution.<br /><br />Lane 1: HeLa cell lysate (20 µg/Lane)<br />Lane 2: HepG2 cell lysate (20 µg/Lane)<br />Lane 3: Neuro-2a cell lysate (20 µg/Lane)<br />Lane 4: PC-12 cell lysate (20 µg/Lane)<br />Lane 5: COS-1 cell lysate (20 µg/Lane)<br />Lane 6: Mouse lung tissue lysate (no heat) (40 µg/Lane)<br />Lane 7: Rat lung tissue lysate (40 µg/Lane)<br /><br />Notice: no heat means the lysate is not boiled.<br /><br />Predicted band size: 134 kDa<br />Observed band size: 134 kDa<br /><br />Exposure time: 59 seconds; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA751677" style="font-weight: bold;text-decoration: underline;">HA751677</a>) at 1/5,000 dilution was used in primary antibody dilution (<a href="/products/K1803" style="font-weight: bold;text-decoration: underline;">K1803</a>) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

    Western blot analysis of TYK2 on different lysates with Rabbit anti-TYK2 antibody (HA751677) at 1/5,000 dilution.

    Lane 1: HeLa cell lysate (20 µg/Lane)
    Lane 2: HepG2 cell lysate (20 µg/Lane)
    Lane 3: Neuro-2a cell lysate (20 µg/Lane)
    Lane 4: PC-12 cell lysate (20 µg/Lane)
    Lane 5: COS-1 cell lysate (20 µg/Lane)
    Lane 6: Mouse lung tissue lysate (no heat) (40 µg/Lane)
    Lane 7: Rat lung tissue lysate (40 µg/Lane)

    Notice: no heat means the lysate is not boiled.

    Predicted band size: 134 kDa
    Observed band size: 134 kDa

    Exposure time: 59 seconds; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA751677) at 1/5,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-TYK2 antibody (<a href="/products/HA751677" style="font-weight: bold;text-decoration: underline;">HA751677</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA751677" style="font-weight: bold;text-decoration: underline;">HA751677</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-TYK2 antibody (HA751677) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751677) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded human lung tissue with Rabbit anti-TYK2 antibody (<a href="/products/HA751677" style="font-weight: bold;text-decoration: underline;">HA751677</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA751677" style="font-weight: bold;text-decoration: underline;">HA751677</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human lung tissue with Rabbit anti-TYK2 antibody (HA751677) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751677) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-TYK2 antibody (<a href="/products/HA751677" style="font-weight: bold;text-decoration: underline;">HA751677</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA751677" style="font-weight: bold;text-decoration: underline;">HA751677</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-TYK2 antibody (HA751677) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751677) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse lung tissue with Rabbit anti-TYK2 antibody (<a href="/products/HA751677" style="font-weight: bold;text-decoration: underline;">HA751677</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA751677" style="font-weight: bold;text-decoration: underline;">HA751677</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse lung tissue with Rabbit anti-TYK2 antibody (HA751677) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751677) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-TYK2 antibody (<a href="/products/HA751677" style="font-weight: bold;text-decoration: underline;">HA751677</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA751677" style="font-weight: bold;text-decoration: underline;">HA751677</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-TYK2 antibody (HA751677) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751677) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat lung tissue with Rabbit anti-TYK2 antibody (<a href="/products/HA751677" style="font-weight: bold;text-decoration: underline;">HA751677</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA751677" style="font-weight: bold;text-decoration: underline;">HA751677</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat lung tissue with Rabbit anti-TYK2 antibody (HA751677) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751677) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Application: Immunocytochemistry (IF-cell)<br /><br />Species: Human<br />Sample: K-562 (Human chronic myelogenous leukemia cell)<br /><br />Fixation: 4% Paraformaldehyde, 15 minutes at room temperature.<br />Permeabilization: 0.1% Triton X-100, 15 minutes at room temperature.<br />Blocking: 1% BSA + 10% normal goat serum, 1 hour at room temperature.<br />Antibody dilution buffer: 1% BSA in PBST.<br /><br />Primary antibody: <a href="/products/HA751677" style="font-weight: bold;text-decoration: underline;">HA751677</a>, 1/100, overnight at 4℃.<br />Secondary antibody: Goat Anti-Rabbit IgG (iFluor&trade; 488, <a href="/products/HA1121" style="font-weight: bold;text-decoration: underline;">HA1121</a>), 45 minutes at room temperature.<br />Counterstain: Beta tubulin (<a href="/products/HA601187" style="font-weight: bold;text-decoration: underline;">HA601187</a>, Red), 1/100, overnight at 4℃. The nuclear counterstain was DAPI (Blue).

    Application: Immunocytochemistry (IF-cell)

    Species: Human
    Sample: K-562 (Human chronic myelogenous leukemia cell)

    Fixation: 4% Paraformaldehyde, 15 minutes at room temperature.
    Permeabilization: 0.1% Triton X-100, 15 minutes at room temperature.
    Blocking: 1% BSA + 10% normal goat serum, 1 hour at room temperature.
    Antibody dilution buffer: 1% BSA in PBST.

    Primary antibody: HA751677, 1/100, overnight at 4℃.
    Secondary antibody: Goat Anti-Rabbit IgG (iFluor™ 488, HA1121), 45 minutes at room temperature.
    Counterstain: Beta tubulin (HA601187, Red), 1/100, overnight at 4℃. The nuclear counterstain was DAPI (Blue).

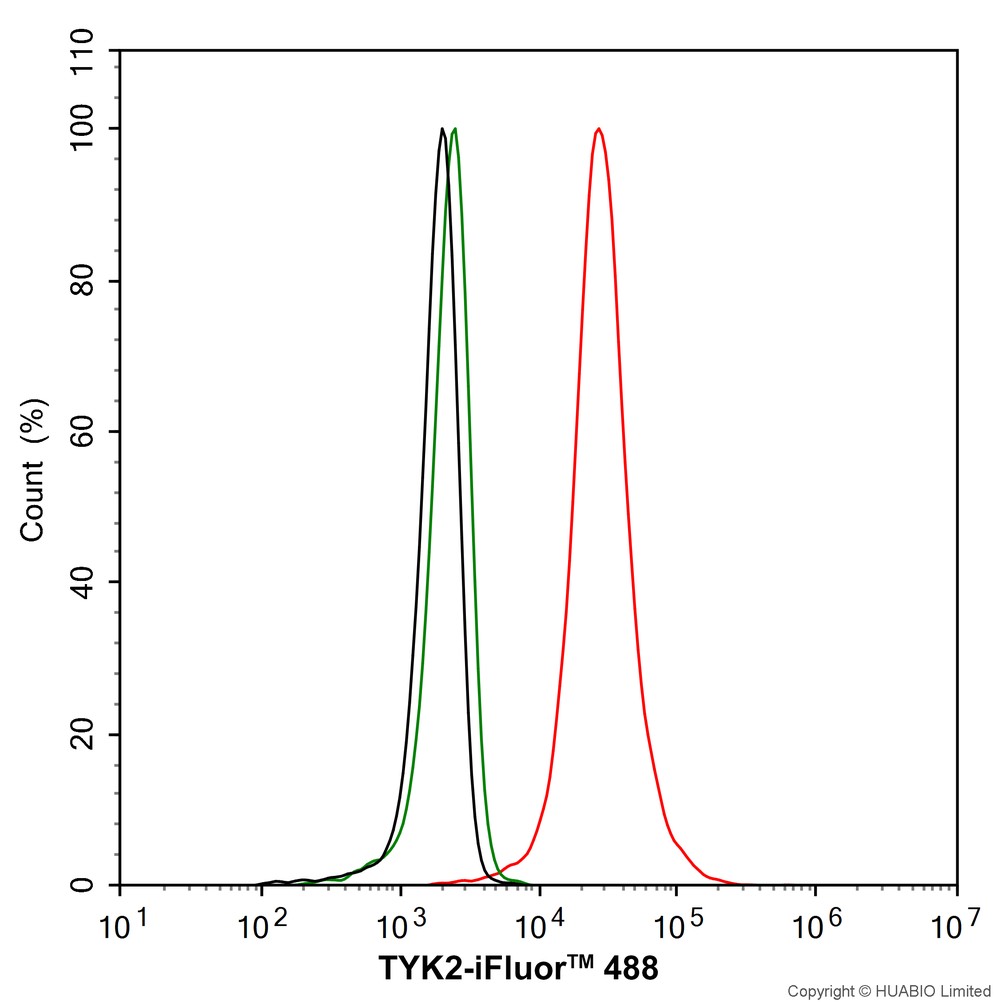

  • Application: Flow Cytometry (Intra)<br /><br />Species: Human<br />Sample: K-562 (Human chronic myelogenous leukemia cell)<br /><br />Fixation: 4% Paraformaldehyde, 15 minutes at room temperature.<br />Permeabilization: 0.1% Tween-20, 15 minutes at room temperature.<br />Blocking: 1% BSA + 10% normal goat serum, 15 minutes at room temperature.<br />Antibody dilution buffer: 1x PBS.<br /><br />Primary antibody: <a href="/products/HA751677" style="font-weight: bold;text-decoration: underline;">HA751677</a> (1/1,000, Red) compared with Rabbit IgG Isotype Control (<a href="/products/HA722127" style="font-weight: bold;text-decoration: underline;">HA722127</a>, Green), 15 minutes at room temperature.<br />Secondary antibody: Goat Anti-Rabbit IgG (iFluor&trade; 488, <a href="/products/HA1121" style="font-weight: bold;text-decoration: underline;">HA1121</a>), 15 minutes at room temperature.

    Application: Flow Cytometry (Intra)

    Species: Human
    Sample: K-562 (Human chronic myelogenous leukemia cell)

    Fixation: 4% Paraformaldehyde, 15 minutes at room temperature.
    Permeabilization: 0.1% Tween-20, 15 minutes at room temperature.
    Blocking: 1% BSA + 10% normal goat serum, 15 minutes at room temperature.
    Antibody dilution buffer: 1x PBS.

    Primary antibody: HA751677 (1/1,000, Red) compared with Rabbit IgG Isotype Control (HA722127, Green), 15 minutes at room temperature.
    Secondary antibody: Goat Anti-Rabbit IgG (iFluor™ 488, HA1121), 15 minutes at room temperature.
