ATRX Recombinant Rabbit Monoclonal Antibody [PSH20-95] - BSA and Azide free
Catalog# HA751777
ATRX Recombinant Rabbit Monoclonal Antibody [PSH20-95] - BSA and Azide free
-
WB
-
IF-Cell
-
IHC-P
-
IP
-
Human
-
Mouse
-
Rat
-
unconjugated
Overview
Product Name
ATRX Recombinant Rabbit Monoclonal Antibody [PSH20-95] - BSA and Azide free
Antibody Type
Recombinant Rabbit monoclonal Antibody
Immunogen
Recombinant protein within human ATRX aa 2,193-2,492.
Species Reactivity
Human, Mouse, Rat
Validated Applications
WB, IF-Cell, IHC-P, IP
Target Molecular Weight
Predicted band size: 283 kDa
Positive Control
SH-SY5Y cell lysate, HeLa cell lysate, MOLT-4 cell lysate, NIH/3T3 cell lysate, C2C12 cell lysate, L6 cell lysate, C6 cell lysate, NRK cell lysate, NR8383 cell lysate, PC-12 cell lysate, human breast carcinoma tissue, human colon tissue, mouse brain tissue, mouse colon tissue, rat brain tissue, rat colon tissue, SH-SY5Y, NIH/3T3.
Conjugation
unconjugated
Clone Number
PSH20-95
Reactivity Data
Verified (internally validated)
Reported in literature (not internally validated)
Predicted reactive (based on sequence homology)
Not recommended (failed internal validation)
| WB | IHC-P | FC | IF-Cell | IP | |
|---|---|---|---|---|---|
| human |
|
|
|
|
|
| mouse |
|
|
|
|
|
| rat |
|
|
|
|
|
Product Features
Form
Liquid
Concentration
1mg/ml
Storage Instructions
Store at 2-8℃. Avoid freeze.
Storage Buffer
1*PBS (pH7.4).
Isotype
IgG
Purification Method
Protein A affinity purified.
Application Dilution
Target
Function
Transcriptional regulator ATRX contains an ATPase / helicase domain, and thus it belongs to the SWI/SNF family of chromatin remodeling proteins. This protein is found to undergo cell cycle-dependent phosphorylation, which regulates its nuclear matrix and chromatin association, and suggests its involvement in the gene regulation at interphase and chromosomal segregation in mitosis. Mutations of the ATRX gene are associated with an X-linked mental retardation (XLMR) syndrome most often accompanied by alpha-thalassemia (ATRX) syndrome. These mutations have been shown to cause diverse changes in the pattern of DNA methylation, which may provide a link between chromatin remodeling, DNA methylation, and gene expression in developmental processes.
Background References
1. Yuan K et al. Mutant ATRX: pathogenesis of ATRX syndrome and cancer. Front Mol Biosci. 2024 Oct
2. Aguilera P et al. ATRX, a guardian of chromatin. Trends Genet. 2023 Jun
Subcellular Location
Nucleus, Chromosome, telomere, PML body.
Synonyms
Alpha thalassemia/mental retardation syndrome X linked homolog antibody
ATP dependent helicase ATRX antibody
ATP-dependent helicase ATRX antibody
ATR2 antibody
Atrx antibody
ATRX_HUMAN antibody
DNA dependent ATPase and helicase antibody
Helicase 2, X linked antibody
MGC2094 antibody
MRXHF1 antibody
ExpandImages
-
☑ Relative expression (RE)
This data was developed using HA724190, the same antibody clone in a different buffer formulation.

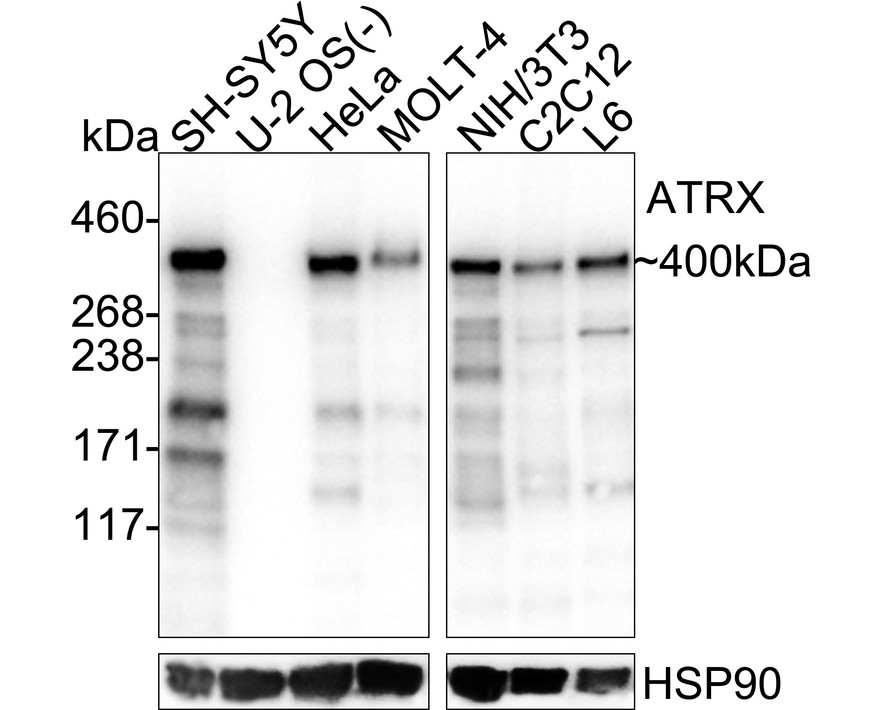

Western blot analysis of ATRX on different lysates with Rabbit anti-ATRX antibody (HA724190) at 1/5,000 dilution.
Lane 1: SH-SY5Y cell lysate
Lane 2: U-2 OS cell lysate (negative)
Lane 3: HeLa cell lysate
Lane 4: MOLT-4 cell lysate
Lane 5: NIH/3T3 cell lysate
Lane 6: C2C12 cell lysate
Lane 7: L6 cell lysate
Lysates/proteins at 20 µg/Lane.
Predicted band size: 283 kDa
Observed band size: 400 kDa
Exposure time: 10 seconds; ECL: K1801;
3-8% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA724190) at 1/5,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. -
This data was developed using HA724190, the same antibody clone in a different buffer formulation.

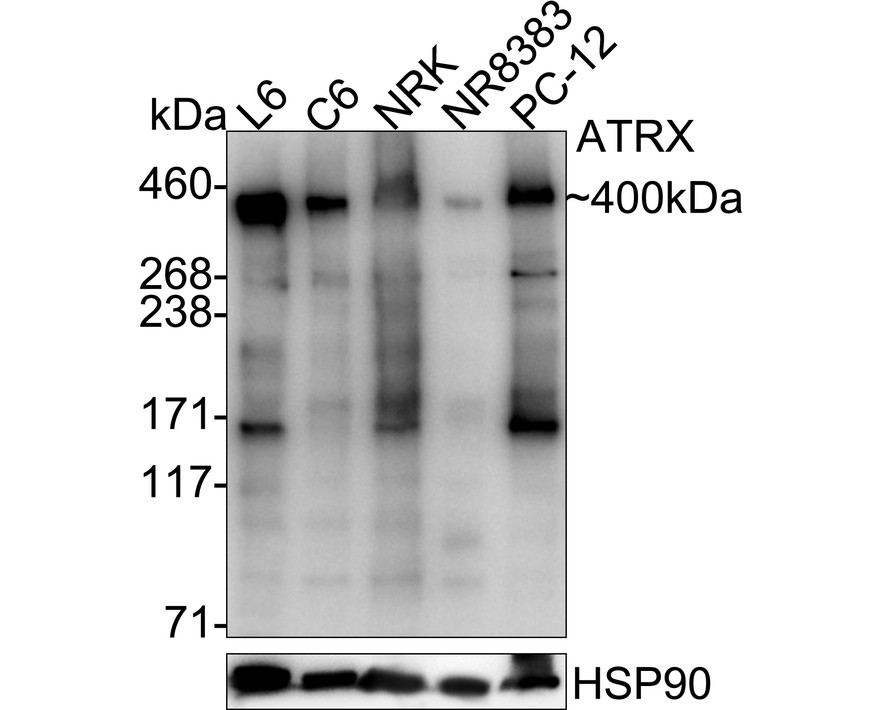

Western blot analysis of ATRX on different lysates with Rabbit anti-ATRX antibody (HA724190) at 1/10,000 dilution.
Lane 1: L6 cell lysate
Lane 2: C6 cell lysate
Lane 3: NRK cell lysate
Lane 4: NR8383 cell lysate
Lane 5: PC-12 cell lysate
Lysates/proteins at 20 µg/Lane.
Predicted band size: 283 kDa
Observed band size: 400 kDa
Exposure time: 3 minutes; ECL: K1801;
3-8% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA724190) at 1/10,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. -
This data was developed using HA724190, the same antibody clone in a different buffer formulation.
Immunocytochemistry analysis of SH-SY5Y cells labeling ATRX with Rabbit anti-ATRX antibody (HA724190) at 1/1,000 dilution.
Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-ATRX antibody (HA724190) at 1/1,000 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.
Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution. -
This data was developed using HA724190, the same antibody clone in a different buffer formulation.
Immunocytochemistry analysis of NIH/3T3 cells labeling ATRX with Rabbit anti-ATRX antibody (HA724190) at 1/1,000 dilution.
Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-ATRX antibody (HA724190) at 1/1,000 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.
Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution. -
This data was developed using HA724190, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded human breast carcinoma tissue with Rabbit anti-ATRX antibody (HA724190) at 1/200 dilution.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA724190) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -
This data was developed using HA724190, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded human colon tissue with Rabbit anti-ATRX antibody (HA724190) at 1/200 dilution.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA724190) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -
This data was developed using HA724190, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-ATRX antibody (HA724190) at 1/1,000 dilution.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA724190) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -
This data was developed using HA724190, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded mouse colon tissue with Rabbit anti-ATRX antibody (HA724190) at 1/200 dilution.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA724190) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -
This data was developed using HA724190, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-ATRX antibody (HA724190) at 1/1,000 dilution.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA724190) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -
This data was developed using HA724190, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded rat colon tissue with Rabbit anti-ATRX antibody (HA724190) at 1/200 dilution.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA724190) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -
This data was developed using HA724190, the same antibody clone in a different buffer formulation.

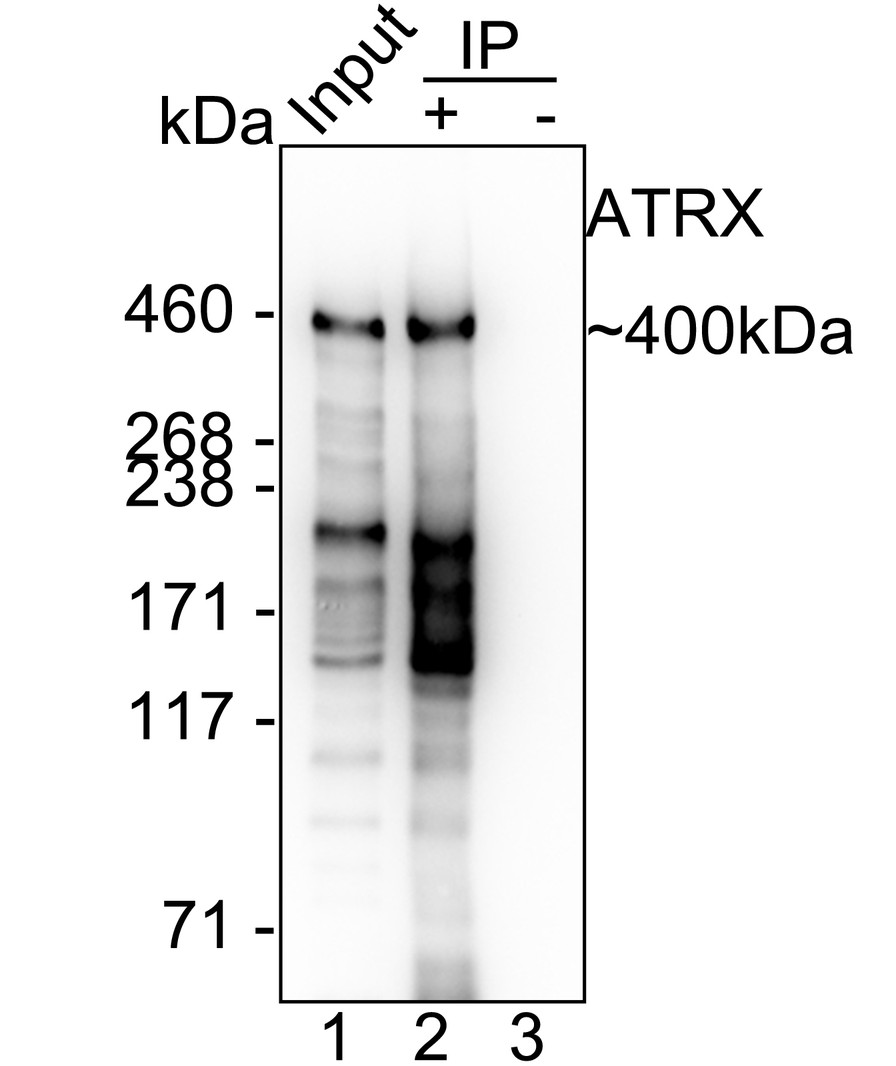

ATRX was immunoprecipitated from 0.2 mg SH-SY5Y cell lysate with HA724190 at 2 µg/10 µl beads. Western blot was performed from the immunoprecipitate using HA724190 at 1/5,000 dilution. HRP Conjugated Anti-Rabbit IgG for IP Nano-secondary antibody at 1/5,000 dilution was used for 1 hour at room temperature.
Lane 1: SH-SY5Y cell lysate (input)
Lane 2: HA724190 IP in SH-SY5Y cell lysate
Lane 3: Rabbit IgG instead of HA724190 in SH-SY5Y cell lysate
Blocking/Dilution buffer: primary antibody dilution (K1803)
Exposure time: 20 seconds; ECL: K1801
Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
