Kir5.1 Rabbit Polyclonal Antibody

Usd: 315

Specification

Bulk Order Quote | Customization Request

Catalog# ER1901-24

Kir5.1 Rabbit Polyclonal Antibody

Application

  • WB

  • IHC-P

  • FC

Reactivity

  • Human

  • Mouse

Predicted reactivity

  • Rat

Conjugation

  • unconjugated

Overview

Product Name

Kir5.1 Rabbit Polyclonal Antibody

Antibody Type

Rabbit Polyclonal Antibody

Immunogen

Synthetic peptide within mouse Kir51 aa 294-343 / 419.

Species Reactivity

Human, Mouse (Predicted: Rat)

Predicted species support after-sales service

Validated Applications

WB, IHC-P, FC

Target Molecular Weight

Predicted band size: 48 kDa

Positive Control

HEK-293 cell lysates, mouse kidney tissue lysates, human liver tissue, mouse kidney tissue, 293.

Conjugation

unconjugated

RRID

AB_3069318

Reactivity Data

Tested Tested Tested
Verified (internally validated)
Published Tested
Reported in literature (not internally validated)
Predicted Tested
Predicted reactive (based on sequence homology)
Not recommended Tested
Not recommended (failed internal validation)
WB IHC-P
human
Tested Tested
Tested Tested
mouse
Tested Tested
Tested Tested
rat
Not Recommended
Not Recommended

Product Features

Form

Liquid

Concentration

1 mg/mL.(The concentration of this product may be batch-dependent)

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Storage Buffer

1*PBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG

Purification Method

Immunogen affinity purified.

Application Dilution

  • WB

  • 1:2,000

  • IHC-P

  • 1:50-1:200

  • FC

  • 1:50-1:100

Target

Function

Potassium inwardly-rectifying channel, subfamily J, member 16 (KCNJ16) is a human gene encoding the Kir5.1 protein. Potassium channels are present in most mammalian cells, where they participate in a wide range of physiologic responses. Kir5.1 is an integral membrane protein and inward-rectifier type potassium channel. Inward rectifier potassium channels are characterized by a greater tendency to allow potassium to flow into the cell rather than out of it. Their voltage dependence is regulated by the concentration of extracellular potassium; as external potassium is raised, the voltage range of the channel opening shifts to more positive voltages. The inward rectification is mainly due to the blockage of outward current by internal magnesium. KCNJ16 may be involved in the regulation of fluid and pH balance. In the kidney, together with KCNJ10, mediates basolateral K+ recycling in distal tubules; this process is critical for Na+ reabsorption at the tubules.

Background References

1. Puissant MM. et. al. Genetic mutation of Kcnj16 identifies Kir5.1-containing channels as key regulators of acute and chronic pH homeostasis. FASEB J. 2019 Apr;33(4).

2. Castori M. et. al. Variability in a three-generation family with Pierre Robin sequence, acampomelic campomelic dysplasia, and intellectual disability due to a novel ∼1 Mb deletion upstream of SOX9, and including KCNJ2 and KCNJ16. Birth Defects Res A Clin Mol Teratol. 2016 Jan;106(1):61-8.

Sequence Similarity

Belongs to the inward rectifier-type potassium channel (TC 1.A.2.1) family. KCNJ16 subfamily.

Tissue Specificity

Widely expressed, with highest levels in adult and fetal kidney (at protein level). In the kidney, expressed in the proximal and distal convoluted tubules, but not in glomeruli nor collecting ducts.

Subcellular Location

Membrane, Basolateral cell membrane.

UNIPROT

SwissProt: Q9NPI9 Human

SwissProt: Q9Z307 Mouse

SwissProt: P52191 Rat

Synonyms

6430410F18Rik antibody

AI132396 antibody

BIR9 antibody

Inward rectifier K channel Kir5.1 antibody

Inward rectifier K(+) channel Kir5.1 antibody

Inward rectifier potassium channel 16 antibody

IRK16 antibody

IRKG antibody

KCNJ16 antibody

MGC33717 antibody

Expand

Images

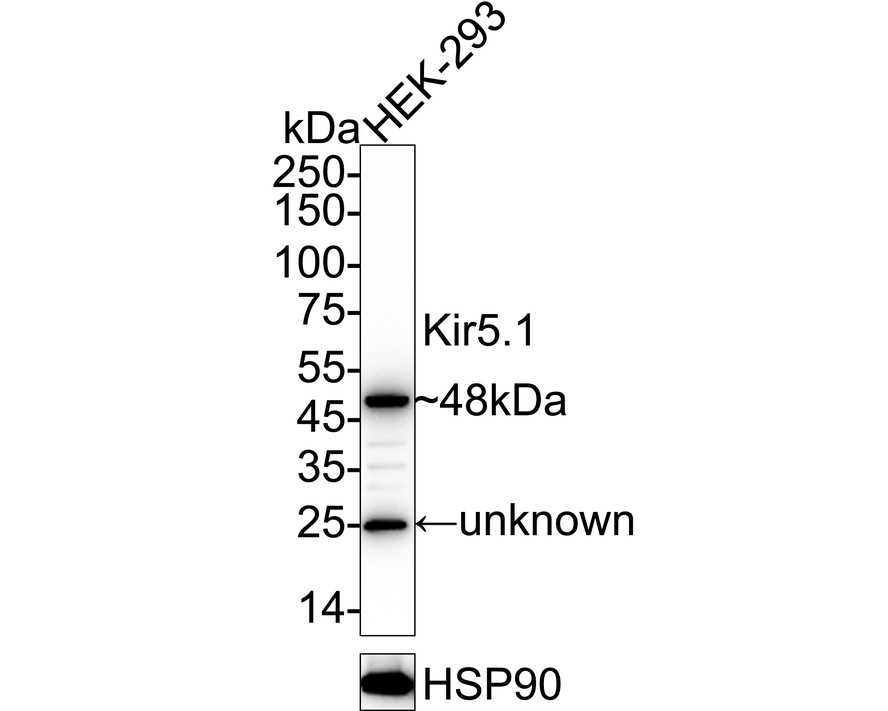

  • Western blot analysis of Kir5.1 on HEK-293 cell lysates with Rabbit anti-Kir5.1 antibody (<a href="/products/ER1901-24" style="font-weight: bold;text-decoration: underline;">ER1901-24</a>) at 1/2,000 dilution.<br /><br />Lysates/proteins at 20 µg/Lane.<br /><br />Predicted band size: 48 kDa<br />Observed band size: 48 kDa<br /><br />Exposure time: 35 seconds; ECL: K1801;<br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/ER1901-24" style="font-weight: bold;text-decoration: underline;">ER1901-24</a>) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

    Western blot analysis of Kir5.1 on HEK-293 cell lysates with Rabbit anti-Kir5.1 antibody (ER1901-24) at 1/2,000 dilution.

    Lysates/proteins at 20 µg/Lane.

    Predicted band size: 48 kDa
    Observed band size: 48 kDa

    Exposure time: 35 seconds; ECL: K1801;
    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ER1901-24) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

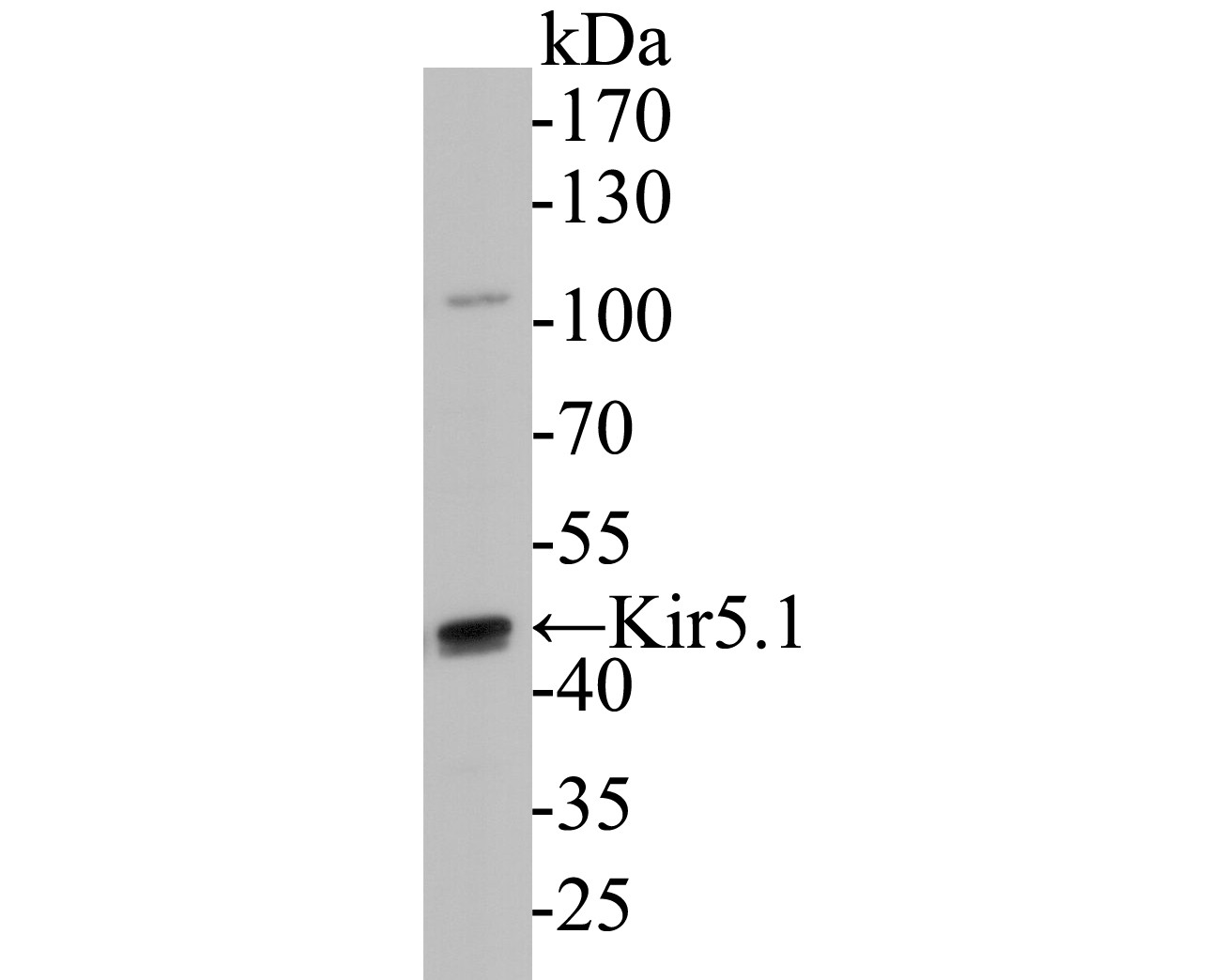

  • Western blot analysis of Kir5.1 on mouse kidney tissue lysate. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (<a href="/products/ER1901-24" style="font-weight: bold;text-decoration: underline;">ER1901-24</a>, 1/2000) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1:5,000 dilution was used for 1 hour at room temperature.

    Western blot analysis of Kir5.1 on mouse kidney tissue lysate. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ER1901-24, 1/2000) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.

  • Immunohistochemical analysis of paraffin-embedded human liver tissue using anti-Kir5.1 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ER1901-24" style="font-weight: bold;text-decoration: underline;">ER1901-24</a>, 1/200) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human liver tissue using anti-Kir5.1 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1901-24, 1/200) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse kidney tissue using anti-Kir5.1 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ER1901-24" style="font-weight: bold;text-decoration: underline;">ER1901-24</a>, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse kidney tissue using anti-Kir5.1 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1901-24, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Flow cytometric analysis of Kir5.1 was done on 293 cells. The cells were fixed, permeabilized and stained with the primary antibody (<a href="/products/ER1901-24" style="font-weight: bold;text-decoration: underline;">ER1901-24</a>, 1/50) (red). After incubation of the primary antibody at room temperature for an hour, the cells were stained with a Alexa Fluor 488-conjugated Goat anti-Rabbit IgG Secondary antibody at 1/1000 dilution for 30 minutes.Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

    Flow cytometric analysis of Kir5.1 was done on 293 cells. The cells were fixed, permeabilized and stained with the primary antibody (ER1901-24, 1/50) (red). After incubation of the primary antibody at room temperature for an hour, the cells were stained with a Alexa Fluor 488-conjugated Goat anti-Rabbit IgG Secondary antibody at 1/1000 dilution for 30 minutes.Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
