Meckelin Recombinant Rabbit Monoclonal Antibody [JE65-62]

Usd: 385

Specification

Bulk Order Quote | Customization Request

Catalog# HA722366

Meckelin Recombinant Rabbit Monoclonal Antibody [JE65-62]

Application

  • WB

  • IHC-P

Reactivity

  • Human

  • Mouse

  • Rat

Conjugation

  • unconjugated

Overview

Product Name

Meckelin Recombinant Rabbit Monoclonal Antibody [JE65-62]

Antibody Type

Recombinant Rabbit monoclonal Antibody

Immunogen

Recombinant protein within Human Meckelin aa 801-900 / 995.

Species Reactivity

Human, Mouse, Rat

Validated Applications

WB, IHC-P

Molecular Weight

Predicted band size: 112 kDa

Positive Control

MCF7 cell lysate, 293T cell lysate, RAW264.7 cell lysate, PC-12 cell lysate, mouse spleen tissue lysate, mouse brain tissue lysate, rat spleen tissue lysate, rat brain tissue lysate, mouse liver tissue, mouse kidney tissue, rat kidney tissue.

Conjugation

unconjugated

Clone Number

JE65-62

Product Features

Form

Liquid

Concentration

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). Store at -20℃ long term.

Storage Buffer

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG

Purification Method

Protein A affinity purified.

Application Dilution

  • WB

  • 1:1,000

  • IHC-P

  • 1:1,000

Target

Function

Meckelin is a protein that in humans is encoded by the TMEM67 gene. The protein encoded by this gene localizes to the primary cilium and to the plasma membrane. The gene functions in centriole migration to the apical membrane and formation of the primary cilium. Multiple transcript variants encoding different isoforms have been found for this gene.

Background References

1. Yinsheng Z et al. TMEM67 is required for the gating function of the transition zone that controls entry of membrane-associated proteins ARL13B and INPP5E into primary cilia. Biochem Biophys Res Commun. 2022 Dec

2. Qiu YL et al. Association of novel TMEM67 variants with mild phenotypes of high gamma-glutamyl transpeptidase cholestasis and congenital hepatic fibrosis. J Cell Physiol. 2022 Jun

Subcellular Location

Cell membrane, Endoplasmic reticulum membrane, Cell projection, cilium, Cytoplasm, cytoskeleton, cilium basal body.

UNIPROT

SwissProt: Q5HYA8 Human

SwissProt: Q8BR76 Mouse

SwissProt: POC152 Rat

Synonyms

JBTS6 antibody

Meckel syndrome type 3 protein antibody

MKS3 antibody

NPHP11 antibody

TMEM67 antibody

TNEM67 antibody

Transmembrane protein 67 antibody

Images

  • Western blot analysis of Meckelin on different lysates with Rabbit anti-Meckelin antibody (<a href="/products/HA722366" style="font-weight: bold;text-decoration: underline;">HA722366</a>) at 1/1,000 dilution.<br /><br />Lane 1: MCF7 cell lysate<br />Lane 2: 293T cell lysate<br />Lane 3: RAW264.7 cell lysate<br />Lane 4: PC-12 cell lysate<br /><br />Lysates/proteins at 20 µg/Lane.<br /><br />Predicted band size: 112 kDa<br />Observed band size: 112 kDa<br /><br />Exposure time: 59 seconds; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA722366" style="font-weight: bold;text-decoration: underline;">HA722366</a>) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

    Western blot analysis of Meckelin on different lysates with Rabbit anti-Meckelin antibody (HA722366) at 1/1,000 dilution.

    Lane 1: MCF7 cell lysate
    Lane 2: 293T cell lysate
    Lane 3: RAW264.7 cell lysate
    Lane 4: PC-12 cell lysate

    Lysates/proteins at 20 µg/Lane.

    Predicted band size: 112 kDa
    Observed band size: 112 kDa

    Exposure time: 59 seconds; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA722366) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

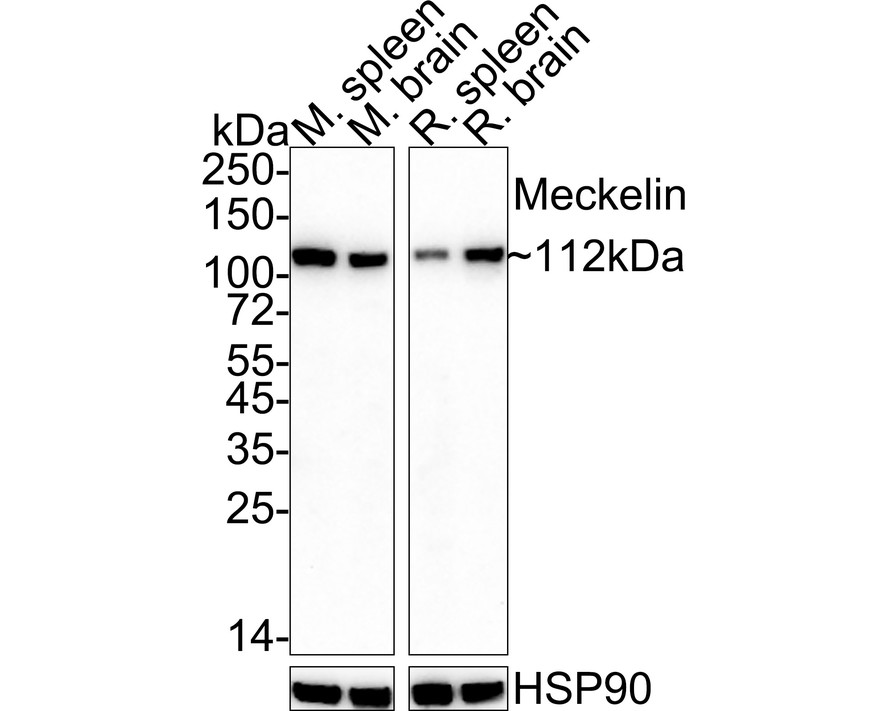

  • Western blot analysis of Meckelin on different lysates with Rabbit anti-Meckelin antibody (<a href="/products/HA722366" style="font-weight: bold;text-decoration: underline;">HA722366</a>) at 1/1,000 dilution.<br /><br />Lane 1: Mouse spleen tissue lysate<br />Lane 2: Mouse brain tissue lysate<br />Lane 3: Rat spleen tissue lysate<br />Lane 4: Rat brain tissue lysate<br /><br />Lysates/proteins at 40 µg/Lane.<br /><br />Predicted band size: 112 kDa<br />Observed band size: 112 kDa<br /><br />Exposure time: 3 minutes; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA722366" style="font-weight: bold;text-decoration: underline;">HA722366</a>) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

    Western blot analysis of Meckelin on different lysates with Rabbit anti-Meckelin antibody (HA722366) at 1/1,000 dilution.

    Lane 1: Mouse spleen tissue lysate
    Lane 2: Mouse brain tissue lysate
    Lane 3: Rat spleen tissue lysate
    Lane 4: Rat brain tissue lysate

    Lysates/proteins at 40 µg/Lane.

    Predicted band size: 112 kDa
    Observed band size: 112 kDa

    Exposure time: 3 minutes; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA722366) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • Immunohistochemical analysis of paraffin-embedded mouse liver tissue with Rabbit anti-Meckelin antibody (<a href="/products/HA722366" style="font-weight: bold;text-decoration: underline;">HA722366</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA722366" style="font-weight: bold;text-decoration: underline;">HA722366</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse liver tissue with Rabbit anti-Meckelin antibody (HA722366) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722366) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-Meckelin antibody (<a href="/products/HA722366" style="font-weight: bold;text-decoration: underline;">HA722366</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA722366" style="font-weight: bold;text-decoration: underline;">HA722366</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-Meckelin antibody (HA722366) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722366) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-Meckelin antibody (<a href="/products/HA722366" style="font-weight: bold;text-decoration: underline;">HA722366</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA722366" style="font-weight: bold;text-decoration: underline;">HA722366</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-Meckelin antibody (HA722366) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722366) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
