Phospho-MEK1/2 (S218 + S222) Recombinant Rabbit Monoclonal Antibody [ST0490] - BSA and Azide free

☑ Cell treatment (CT)

This data was developed using ET1609-50, the same antibody clone in a different buffer formulation.
Western blot analysis of Phospho-MEK1/2 (S218 + S222) on different lysates with Rabbit anti-Phospho-MEK1/2 (S218 + S222) antibody (ET1609-50) at 1/1,000 dilution.

Lane 1: NIH/3T3 cell lysate
Lane 2: NIH/3T3 treated with 200nM PMA for 30 minutes cell lysate
Lane 3: C6 cell lysate
Lane 4: C6 treated with 200nM PMA for 30 minutes cell lysate
Lane 5: NIH/3T3 treated with 200nM PMA for 30 minutes cell lysate, then the membrane treated with λpp for 1 hour
Lane 6: C6 treated with 200nM PMA for 30 minutes cell lysate, then the membrane treated with λpp for 1 hour

Lysates/proteins at 20 µg/Lane.

Predicted band size: 43 kDa
Observed band size: 43 kDa

Exposure time: 24 seconds;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1609-50) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

This data was developed using ET1609-50, the same antibody clone in a different buffer formulation.

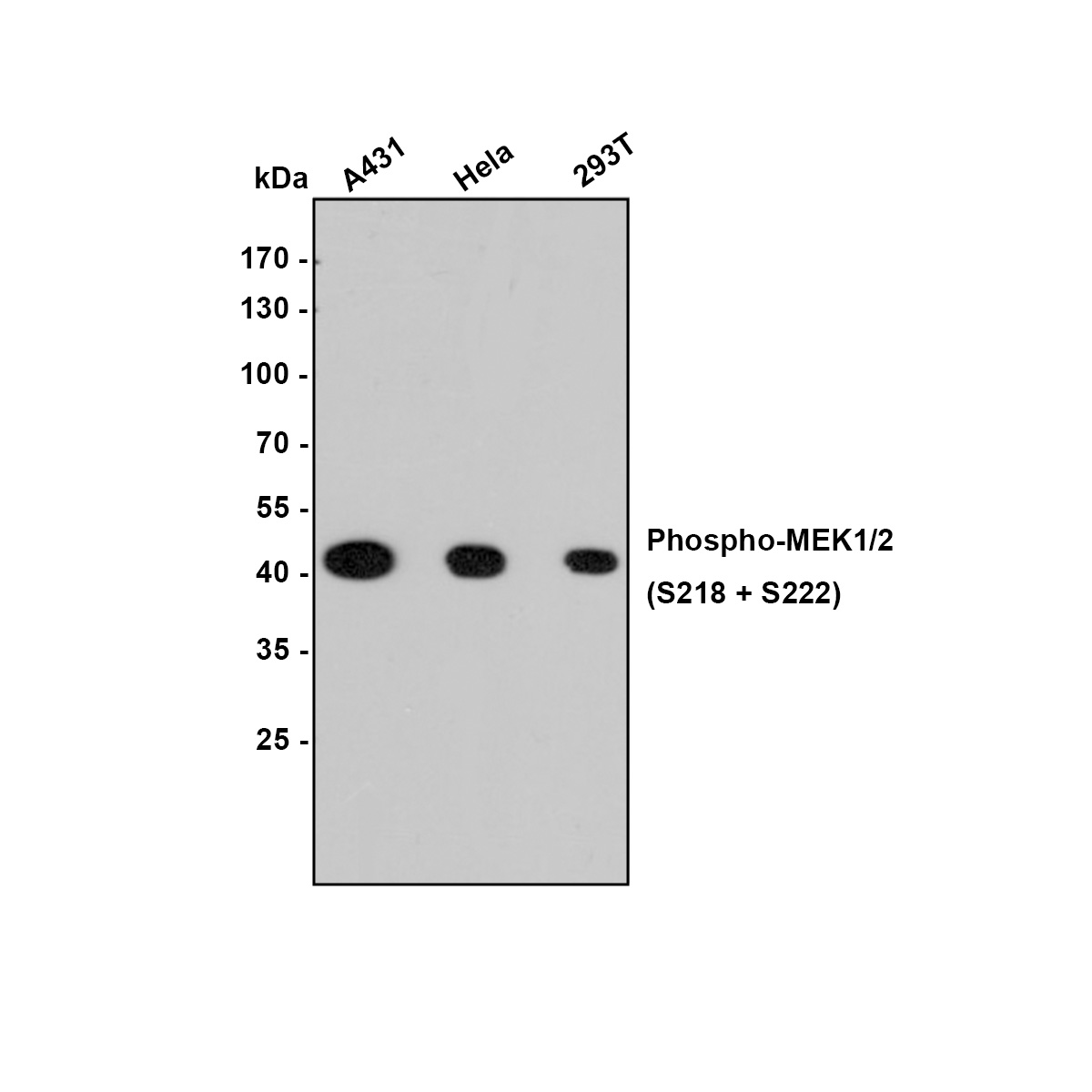

Western blot analysis of Phospho-MEK1/2 (S218 + S222) on different lysates with Rabbit anti-Phospho-MEK1/2 (S218 + S222) antibody (ET1609-50) at 1/500 dilution.

Lane 1: A431 cell lysate
Lane 2: Hela cell lysate
Lane 3: 293T cell lysate

Lysates/proteins at 10 µg/Lane.
Exposure time: 1 minutes; ECL: K1801


Blocking: 5% BSA , 1 hour at room temperature
Primary antibody: ET1609-50, 1/500 in 5% BSA at room temperature for 2 hours
Secondary antibody: Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:50,000 dilution was used for 1 hour at room temperature

Predicted band size: 43 kDa
Observed band size: 43 kDa

☑ Cell treatment (CT)

This data was developed using ET1609-50, the same antibody clone in a different buffer formulation.

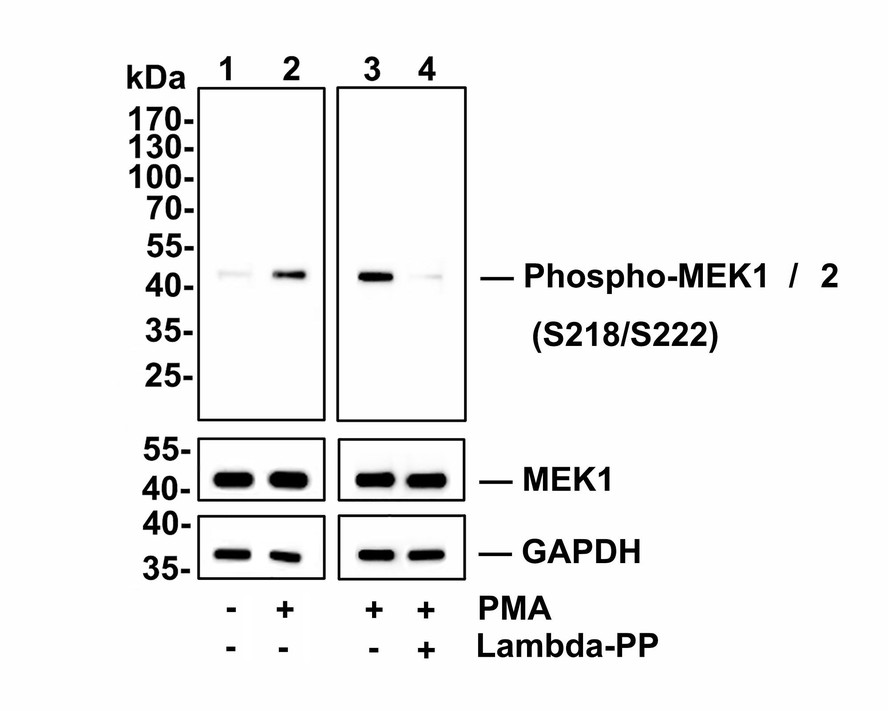

Western blot analysis of Phospho-MEK1/2 (S218 + S222) on Hela cell lysates.

Lane 1: Hela cells, whole cell lysate, 10ug/lane
Lane 2/3: Hela cells treated with 200 nM PMA for 20 minutes, whole cell lysates, 10ug/lane
Lane 4: Hela cells treated with 200 nM PMA for 20 minutes, then treated with 2.8ug/ul lambda-PP for 30 minutes, whole cell lysates, 10ug/lane

All lanes :
Anti-Phospho-MEK1/2 (S218 + S222) antibody (ET1609-50) at 1/500 dilution. Anti-MEK1 antibody (ET1603-20) at 1/500 dilution. Anti-GAPDH antibody (ET1601-4) at 1/10,000 dilution. Goat Anti-Rabbit IgG H&L (HRP) (HA1001) at 1/200,000 dilution.

Predicted band size:43 kDa
Observed band size:43 kDa

Blocking and diluting buffer: 5% BSA.

Exposure time: Lane1/2 5 minutes
Lane3/4 1 minutes 32 seconds

☑ Cell treatment (CT)

This data was developed using ET1609-50, the same antibody clone in a different buffer formulation.
Immunocytochemistry analysis of NIH/3T3 cells treated with 200nM PMA for 30 minutes labeling Phospho-MEK1/2 (S218 + S222) with Rabbit anti-Phospho-MEK1/2 (S218 + S222) antibody (ET1609-50) at 1/100 dilution.

Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-Phospho-MEK1/2 (S218 + S222) antibody (ET1609-50) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

This data was developed using ET1609-50, the same antibody clone in a different buffer formulation.
ICC staining of Phospho-MEK1/2 (S218 + S222) in Hela cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1609-50, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

This data was developed using ET1609-50, the same antibody clone in a different buffer formulation.
ICC staining of Phospho-MEK1/2 (S218 + S222) in HepG2 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1609-50, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

This data was developed using ET1609-50, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded human tonsil tissue using anti-Phospho-MEK1/2 (S218 + S222) antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (ET1609-50, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

This data was developed using ET1609-50, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded human liver carcinoma tissue using anti-Phospho-MEK1/2 (S218 + S222) antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (ET1609-50, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

This data was developed using ET1609-50, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded human spleen tissue using anti-Phospho-MEK1/2 (S218 + S222) antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (ET1609-50, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

This data was developed using ET1609-50, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded human breast carcinoma tissue using anti-Phospho-MEK1/2 (S218 + S222) antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (ET1609-50, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
