BNIP3 Recombinant Rabbit Monoclonal Antibody [JA71-10]

Usd: 385

Specification

Bulk Order Quote | Customization Request

Catalog# ET1704-08

BNIP3 Recombinant Rabbit Monoclonal Antibody [JA71-10]

Application

  • WB

  • IF-Cell

  • IF-Tissue

  • IHC-P

Reactivity

  • Human

  • Mouse

  • Rat

Conjugation

  • unconjugated

This product has been cited in peer reviewed publications, see list HERE

Overview

Product Name

BNIP3 Recombinant Rabbit Monoclonal Antibody [JA71-10]

Antibody Type

Recombinant Rabbit monoclonal Antibody

Immunogen

Synthetic peptide within human BNIP3 aa 90-130.

Species Reactivity

Human, Mouse, Rat

Validated Applications

WB, IF-Cell, IF-Tissue, IHC-P

Molecular Weight

Predicted band size: 22 kDa

Positive Control

HeLa treated with 0.5mM CoCl2 for 6 hours cell lysate, MCF7 treated with 0.5mM CoCl2 for 6 hours cell lysate, RAW264.7 cell lysate, RAW264.7 treated with 0.5mM CoCl2 for 6 hours cell lysate, Mouse kidney tissue lysate, Rat kidney tissue lysate, Hela, SH-SY5Y, NIH/3T3, human kidney tissue, mouse brain tissue, mouse kidney tissue, rat brain tissue, rat kidney tissue.

Conjugation

unconjugated

Clone Number

JA71-10

RRID

AB_3070461

Product Features

Form

Liquid

Concentration

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). Store at -20℃ long term.

Storage Buffer

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG

Purification Method

Protein A affinity purified.

Application Dilution

  • WB

  • 1:1,000

  • IF-Cell

  • 1:50-1:200

  • IF-Tissue

  • 1:50-1:200

  • IHC-P

  • 1:1,000

Target

Function

The adenovirus E1B protein is a viral homolog of the Bcl-2 family of proteins that are involved in regulating cell death. A family of interacting proteins, which are designated Nip or Bnip and include BNIP-1, BNIP-2, BNIP-3 and Nix, associate with both the E1B protein and Bcl-2 proteins to mediate apoptotic signaling. BNIP-1 contains a hydrophobic transmembrane domain, which enables its localization to the nuclear envelope, endoplasmic recticulum and mitochondria. BNIP-2, (previously designated Nip2 and Nip21 in human and mouse respectively), shares homology with the non-catalytic domain of Cdc42 GTPase-activating protein (Cdc42GAP). Through binding to Cdc42GAP, BNIP-2 enhances the GTPase activity of Cdc42GAP, facilitating the hydrolysis of GTP bound to Cdc42 and thereby, mediating the signaling pathways involving receptor kinases, small GTPases and apoptotic proteins. Nix, which is also designated Nip3L or Bnip3L, is highly related to BNIP-3, and both proteins localize to the mitochondria where they associate with Bcl-2 proteins. BNIP-3 preferentially binds to Bcl-xL and induces apoptosis by suppressing the anti-apoptosis activity of Bcl-xL.

Background References

1. Ono M et al. Enhanced snoMEN Vectors Facilitate Establishment of GFP-HIF-1a Protein Replacement Human Cell Lines. PLoS One 11:e0154759 (2016).

2. Fedorova LV et al. Peroxisome proliferator-activated receptor d agonist, HPP593, prevents renal necrosis under chronic ischemia. PLoS One 8:e64436 (2013).

Sequence Similarity

Belongs to the NIP3 family.

Subcellular Location

Membrane, Mitochondrion, Mitochondrion outer membrane.

UNIPROT

SwissProt: Q12983 Human

SwissProt: O55003 Mouse

Entrez Gene:84480 Rat

Synonyms

BCL2 Adenovirus E1B 19kDa Interacting Protein 3 antibody

BCL2/adenovirus E1B 19 kDa protein interacting protein 3 antibody

BCL2/adenovirus E1B 19 kDa protein-interacting protein 3 antibody

BNIP 3 antibody

BNIP3 antibody

BNIP3_HUMAN antibody

NIP 3 antibody

NIP3 antibody

Images

  • <span style="font-weight: bold;">☑ Cell treatment (CT)</span><br /><br />Western blot analysis of BNIP3 on different lysates with Rabbit anti-BNIP3 antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>) at 1/1,000 dilution.<br /><br />Lane 1: HeLa cell lysate<br />Lane 2: HeLa treated with 0.5mM CoCl2 for 6 hours cell lysate<br /><br />Lysates/proteins at 20 µg/Lane.<br /><br />Predicted band size: 22 kDa<br />Observed band size: 22-30 kDa<br /><br />Exposure time: 59 seconds; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>) at 1/1,000 dilution was used in primary antibody dilution (<a href="/products/K1803" style="font-weight: bold;text-decoration: underline;">K1803</a>) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

    ☑ Cell treatment (CT)

    Western blot analysis of BNIP3 on different lysates with Rabbit anti-BNIP3 antibody (ET1704-08) at 1/1,000 dilution.

    Lane 1: HeLa cell lysate
    Lane 2: HeLa treated with 0.5mM CoCl2 for 6 hours cell lysate

    Lysates/proteins at 20 µg/Lane.

    Predicted band size: 22 kDa
    Observed band size: 22-30 kDa

    Exposure time: 59 seconds; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1704-08) at 1/1,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • <span style="font-weight: bold;">☑ Cell treatment (CT)</span><br /><br />Western blot analysis of BNIP3 on different lysates with Rabbit anti-BNIP3 antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>) at 1/1,000 dilution.<br /><br />Lane 1: MCF7 cell lysate<br />Lane 2: MCF7 treated with 0.5mM CoCl2 for 6 hours cell lysate<br />Lane 3: RAW264.7 cell lysate<br />Lane 4: RAW264.7 treated with 0.5mM CoCl2 for 6 hours cell lysate<br /><br />Lysates/proteins at 20 µg/Lane.<br /><br />Predicted band size: 22 kDa<br />Observed band size: 22-30 kDa<br /><br />Exposure time: 30 seconds; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>) at 1/1,000 dilution was used in primary antibody dilution (<a href="/products/K1803" style="font-weight: bold;text-decoration: underline;">K1803</a>) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

    ☑ Cell treatment (CT)

    Western blot analysis of BNIP3 on different lysates with Rabbit anti-BNIP3 antibody (ET1704-08) at 1/1,000 dilution.

    Lane 1: MCF7 cell lysate
    Lane 2: MCF7 treated with 0.5mM CoCl2 for 6 hours cell lysate
    Lane 3: RAW264.7 cell lysate
    Lane 4: RAW264.7 treated with 0.5mM CoCl2 for 6 hours cell lysate

    Lysates/proteins at 20 µg/Lane.

    Predicted band size: 22 kDa
    Observed band size: 22-30 kDa

    Exposure time: 30 seconds; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1704-08) at 1/1,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • Western blot analysis of BNIP3 on different lysates with Rabbit anti-BNIP3 antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>) at 1/1,000 dilution.<br /><br />Lane 1: Mouse kidney tissue lysate (40 µg/Lane)<br />Lane 2: Rat kidney tissue lysate (40 µg/Lane)<br /><br />Predicted band size: 22 kDa<br />Observed band size: 30 kDa<br /><br />Exposure time: Lane 1: 1 minute 2 seconds; Lane 2: 8 seconds; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

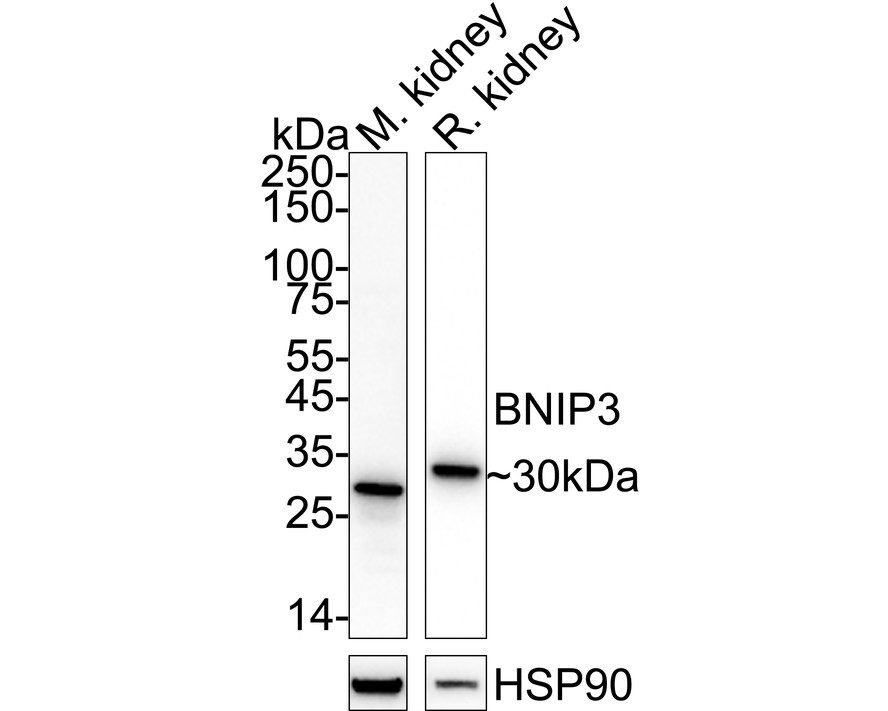

    Western blot analysis of BNIP3 on different lysates with Rabbit anti-BNIP3 antibody (ET1704-08) at 1/1,000 dilution.

    Lane 1: Mouse kidney tissue lysate (40 µg/Lane)
    Lane 2: Rat kidney tissue lysate (40 µg/Lane)

    Predicted band size: 22 kDa
    Observed band size: 30 kDa

    Exposure time: Lane 1: 1 minute 2 seconds; Lane 2: 8 seconds; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1704-08) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • ICC staining of BNIP3 in Hela cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor&reg;488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

    ICC staining of BNIP3 in Hela cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1704-08, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

  • ICC staining of BNIP3 in SH-SY5Y cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor&reg;488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

    ICC staining of BNIP3 in SH-SY5Y cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1704-08, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

  • ICC staining of BNIP3 in NIH/3T3 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor&reg;488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

    ICC staining of BNIP3 in NIH/3T3 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1704-08, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

  • Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-BNIP3 antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-BNIP3 antibody (ET1704-08) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1704-08) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-BNIP3 antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-BNIP3 antibody (ET1704-08) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1704-08) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-BNIP3 antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-BNIP3 antibody (ET1704-08) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1704-08) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-BNIP3 antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-BNIP3 antibody (ET1704-08) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1704-08) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-BNIP3 antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ET1704-08" style="font-weight: bold;text-decoration: underline;">ET1704-08</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-BNIP3 antibody (ET1704-08) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1704-08) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"

Citation
