MCM5 Recombinant Rabbit Monoclonal Antibody [JB31-34]

Usd: 385

Specification

Bulk Order Quote | Customization Request

Catalog# ET7107-15

MCM5 Recombinant Rabbit Monoclonal Antibody [JB31-34]

Application

  • WB

  • IHC-P

Reactivity

  • Human

  • Mouse

Conjugation

  • unconjugated

This product has been cited in peer reviewed publications, see list HERE

Overview

Product Name

MCM5 Recombinant Rabbit Monoclonal Antibody [JB31-34]

Antibody Type

Recombinant Rabbit monoclonal Antibody

Immunogen

Recombinant protein within Human MCM5 aa 620-734 / 734.

Species Reactivity

Human, Mouse

Validated Applications

WB, IHC-P

Molecular Weight

Predicted band size: 82 kDa

Positive Control

SiHa cell lysate, HL-60 cell lysate, human tonsil tissue, human placenta tissue, mouse testis tissue, mouse testis tissue lysates, human lymph nodes tissue.

Conjugation

unconjugated

Clone Number

JB31-34

RRID

AB_3070731

Product Features

Form

Liquid

Concentration

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). Store at -20℃ long term.

Storage Buffer

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG

Purification Method

Protein A affinity purified.

Application Dilution

  • WB

  • 1:500-1:1,000

  • IHC-P

  • 1:50-1:400

Target

Function

DNA replication licensing factor MCM5 is a protein that in humans is encoded by the MCM5 gene. The protein encoded by this gene is structurally very similar to the CDC46 protein from S. cerevisiae, a protein involved in the initiation of DNA replication. The encoded protein is a member of the MCM family of chromatin-binding proteins and can interact with at least two other members of this family. The encoded protein is upregulated in the transition from the G0 to G1/S phase of the cell cycle and may actively participate in cell cycle regulation. The mini-chromosome maintenance (MCM) family of proteins, including MCM2, MCM3, MCM4 (Cdc21), MCM5 (Cdc46), MCM6 (Mis5) and MCM7 (Cdc47), are regulators of DNA replication that act to ensure replication occurs only once in the cell cycle.

Background References

1. Vetro A et al. MCM5: a new actor in the link between DNA replication and Meier-Gorlin syndrome. Eur J Hum Genet 25:646-650 (2017).

2. Tsuji T et al. Essential role of phosphorylation of MCM2 by Cdc7/Dbf4 in the initiation of DNA replication in mammalian cells. Mol Biol Cell 17:4459-4472 (2006).

Sequence Similarity

Belongs to the MCM family.

Subcellular Location

Nucleus. Cytosol.

UNIPROT

SwissProt: P33992 Human

SwissProt: P49718 Mouse

Synonyms

CDC 46 antibody

CDC46 antibody

CDC46 homolog antibody

Cell division cycle 46 antibody

DNA replication licensing factor antibody

DNA replication licensing factor MCM 5 antibody

DNA replication licensing factor MCM5 antibody

MCM 5 antibody

MCM5 antibody

MCM5_HUMAN antibody

Expand

Images

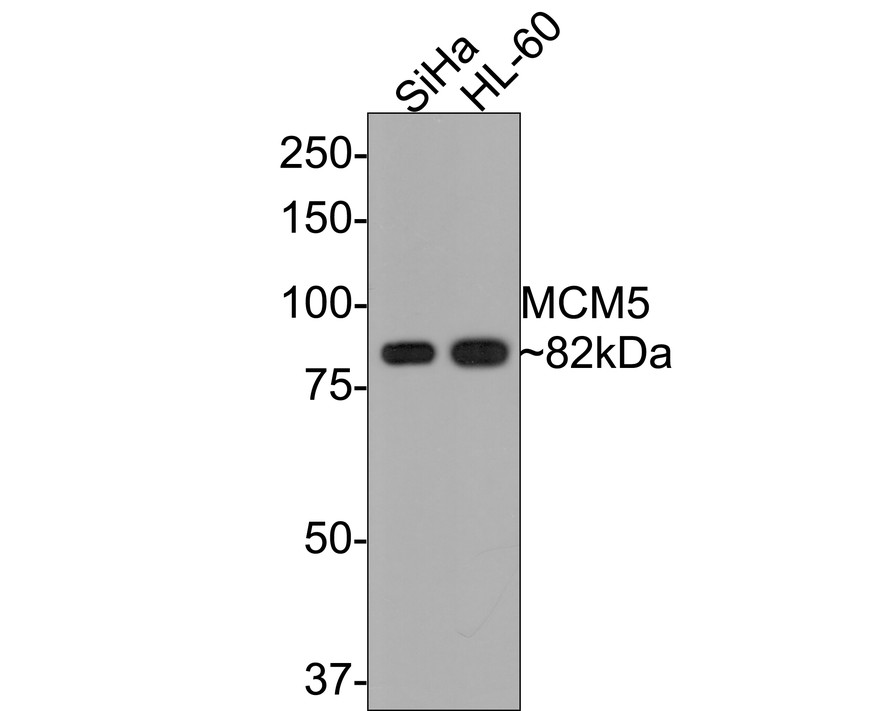

  • Western blot analysis of MCM5 on different lysates with Rabbit anti-MCM5 antibody (<a href="/products/ET7107-15" style="font-weight: bold;text-decoration: underline;">ET7107-15</a>) at 1/500 dilution.<br /><br />Lane 1: SiHa cell lysate<br />Lane 2: HL-60 cell lysate<br /><br />Lysates/proteins at 10 µg/Lane.<br /><br />Predicted band size: 82 kDa<br />Observed band size: 82 kDa<br /><br />Exposure time: 30 seconds;<br /><br />8% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/ET7107-15" style="font-weight: bold;text-decoration: underline;">ET7107-15</a>) at 1/500 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1:300,000 dilution was used for 1 hour at room temperature.

    Western blot analysis of MCM5 on different lysates with Rabbit anti-MCM5 antibody (ET7107-15) at 1/500 dilution.

    Lane 1: SiHa cell lysate
    Lane 2: HL-60 cell lysate

    Lysates/proteins at 10 µg/Lane.

    Predicted band size: 82 kDa
    Observed band size: 82 kDa

    Exposure time: 30 seconds;

    8% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET7107-15) at 1/500 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:300,000 dilution was used for 1 hour at room temperature.

  • Immunohistochemical analysis of paraffin-embedded human tonsil tissue using anti-MCM5 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ET7107-15" style="font-weight: bold;text-decoration: underline;">ET7107-15</a>, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human tonsil tissue using anti-MCM5 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7107-15, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded human placenta tissue using anti-MCM5 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ET7107-15" style="font-weight: bold;text-decoration: underline;">ET7107-15</a>, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human placenta tissue using anti-MCM5 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7107-15, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse testis tissue using anti-MCM5 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ET7107-15" style="font-weight: bold;text-decoration: underline;">ET7107-15</a>, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse testis tissue using anti-MCM5 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7107-15, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Western blot analysis of MCM5 on mouse testis tissue lysates with Rabbit anti-MCM5 antibody (<a href="/products/ET7107-15" style="font-weight: bold;text-decoration: underline;">ET7107-15</a>) at 1/500 dilution.<br /><br />Lysates/proteins at 20 µg/Lane.<br /><br />Predicted band size: 82 kDa<br />Observed band size: 82 kDa<br /><br />Exposure time: 1 minute;<br /><br />8% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/ET7107-15" style="font-weight: bold;text-decoration: underline;">ET7107-15</a>) at 1/500 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1:300,000 dilution was used for 1 hour at room temperature.

    Western blot analysis of MCM5 on mouse testis tissue lysates with Rabbit anti-MCM5 antibody (ET7107-15) at 1/500 dilution.

    Lysates/proteins at 20 µg/Lane.

    Predicted band size: 82 kDa
    Observed band size: 82 kDa

    Exposure time: 1 minute;

    8% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET7107-15) at 1/500 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:300,000 dilution was used for 1 hour at room temperature.

  • Immunohistochemical analysis of paraffin-embedded human lymph nodes tissue with Rabbit anti-MCM5 antibody (<a href="/products/ET7107-15" style="font-weight: bold;text-decoration: underline;">ET7107-15</a>) at 1/400 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ET7107-15" style="font-weight: bold;text-decoration: underline;">ET7107-15</a>) at 1/400 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human lymph nodes tissue with Rabbit anti-MCM5 antibody (ET7107-15) at 1/400 dilution.

    The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7107-15) at 1/400 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
