TIMM50 (Tim50) Recombinant Rabbit Monoclonal Antibody [JE51-61]
Catalog# ET7110-24
TIMM50 (Tim50) Recombinant Rabbit Monoclonal Antibody [JE51-61]
-
WB
-
IHC-P
-
Human
-
Mouse
-
Rat
-
unconjugated
Overview
Product Name
TIMM50 (Tim50) Recombinant Rabbit Monoclonal Antibody [JE51-61]
Antibody Type
Recombinant Rabbit monoclonal Antibody
Immunogen
Recombinant protein within Human TIM50 aa 1-109 / 353.
Species Reactivity
Human, Mouse, Rat
Validated Applications
WB, IHC-P
Molecular Weight
Predicted band size: 40 kDa
Positive Control
HeLa cell lysate, K-562 cell lysate, NIH:OVCAR-3 cell lysate, PANC-1 cell lysate, human kidney tissue, human liver tissue, mouse liver tissue, rat liver tissue.
Conjugation
unconjugated
Clone Number
JE51-61
RRID
Product Features
Form
Liquid
Concentration
Storage Instructions
Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.
Storage Buffer
1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.
Isotype
IgG
Purification Method
Protein A affinity purified.
Application Dilution
-
WB
-
1:5,000
-
IHC-P
-
1:50-1:100
Target
Function
Mitochondrial import inner membrane translocase subunit TIM50 is an enzyme that in humans is encoded by the TIMM50 gene. Tim50 is a subunit of the Tim23 translocase complex in the inner mitochondrial membrane. Mutations in TIMM50 can lead to epilepsy, severe intellectual disability, and 3-methylglutaconic aciduria. TIMM50 expression is increased in breast cancer cells and decreased in hypertrophic hearts. The TIMM50 gene is located on the q arm of chromosome 19 in position 13.2 and spans 13,373 base pairs. The gene produces a 39.6 kDa protein composed of 353 amino acids. This gene encodes a subunit of the TIM23 inner mitochondrial membrane translocase complex, which mediates the translocation of transit peptide-containing proteins across the mitochondrial inner membrane. The Tim50 protein functions as the receptor subunit that recognizes the mitochondrial targeting signal, or presequence, on protein cargo that is destined for the mitochondrial inner membrane and matrix. This gene in human cells results in the release of cytochrome c and apoptosis. This protein plays a role in maintaining the membrane permeability barrier. The intermembrane space domain of Tim50 induces the translocation pore of the TIM23 channel to close.
Background References
1. Guo Y. et. al. Tim50, a component of the mitochondrial translocator, regulates mitochondrial integrity and cell death. J. Biol. Chem. 279:24813-24825(2004).
2. Xu H. et. al. Tim50a, a nuclear isoform of the mitochondrial Tim50, interacts with proteins involved in snRNP biogenesis. BMC Cell Biol. 6:29-29(2005).
Sequence Similarity
Belongs to the TIM50 family.
Tissue Specificity
Widely expressed. Expressed at higher level in brain, kidney and liver (at protein level).
Subcellular Location
Mitochondrion inner membrane, nucleus speckle.
Synonyms
Homolog of yeast Tim50 antibody
Import inner membrane translocase subunit TIM 50 antibody
Import inner membrane translocase subunit TIM50 antibody
Import inner membrane translocase subunit TIM50 mitochondrial antibody
MGC102733 antibody
Mitochondrial import inner membrane translocase subunit TIM50 antibody
TIM 50 antibody
TIM 50L antibody
TIM50 antibody
Tim50 like protein antibody
ExpandImages
-

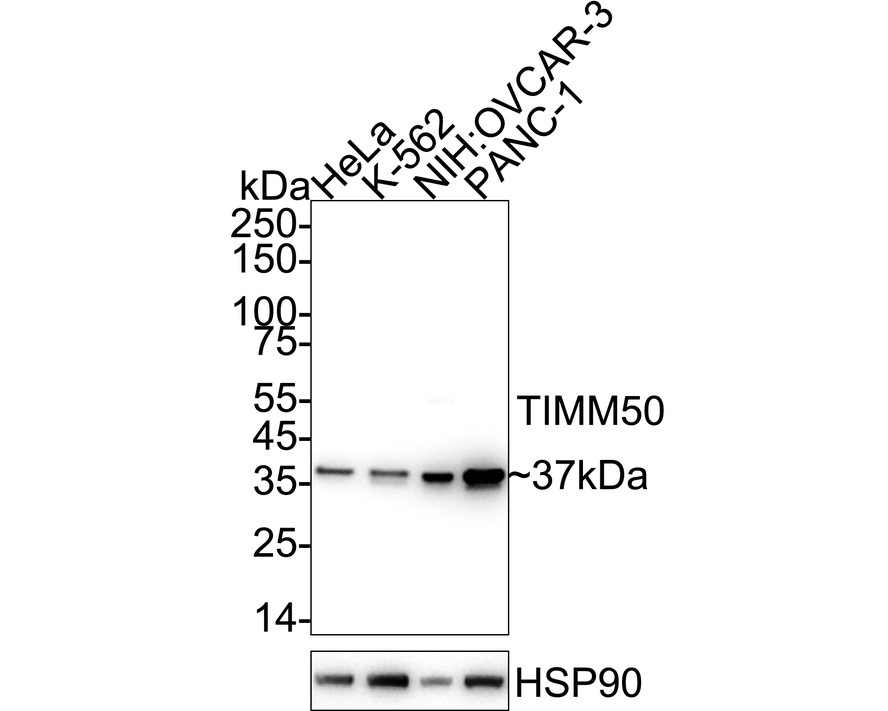

Western blot analysis of TIMM50 (Tim50) on different lysates with Rabbit anti-TIMM50 (Tim50) antibody (ET7110-24) at 1/5,000 dilution.
Lane 1: HeLa cell lysate (20 µg/Lane)
Lane 2: K-562 cell lysate (20 µg/Lane)
Lane 3: NIH:OVCAR-3 cell lysate (20 µg/Lane)
Lane 4: PANC-1 cell lysate (20 µg/Lane)
Predicted band size: 40 kDa
Observed band size: 37 kDa
Exposure time: 10 seconds; ECL: K1801;
4-20% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET7110-24) at 1/5,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. -

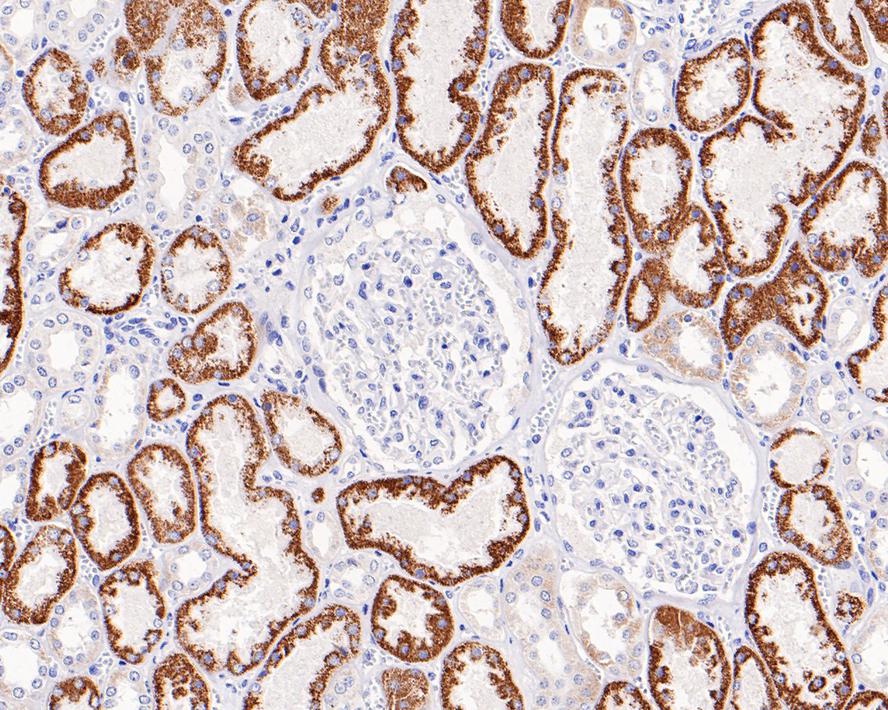

Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-TIMM50 (Tim50) antibody (ET7110-24) at 1/1,000 dilution.
The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7110-24) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -

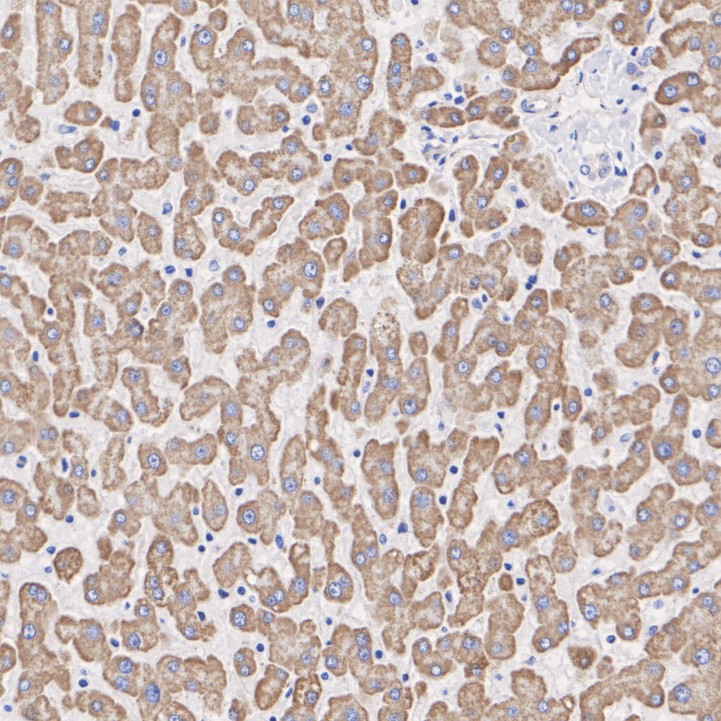

Immunohistochemical analysis of paraffin-embedded human liver tissue with Rabbit anti-TIMM50 (Tim50) antibody (ET7110-24) at 1/2,000 dilution.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7110-24) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -

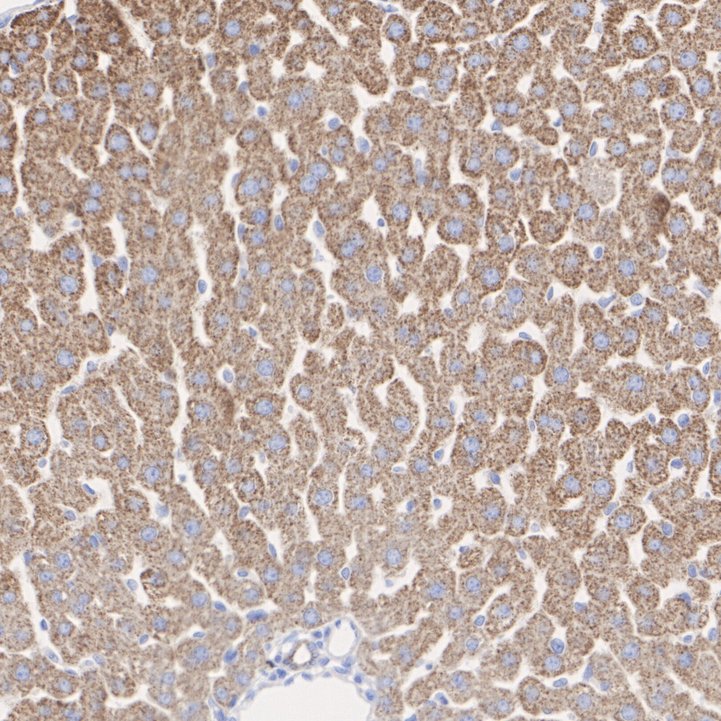

Immunohistochemical analysis of paraffin-embedded mouse liver tissue with Rabbit anti-TIMM50 (Tim50) antibody (ET7110-24) at 1/500 dilution.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7110-24) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -

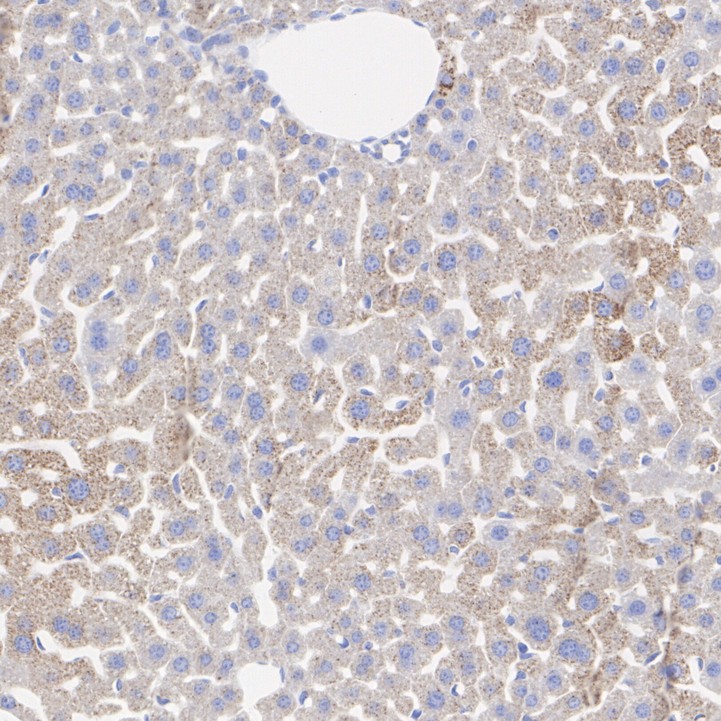

Immunohistochemical analysis of paraffin-embedded rat liver tissue with Rabbit anti-TIMM50 (Tim50) antibody (ET7110-24) at 1/500 dilution.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7110-24) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
