SynGAP Recombinant Rabbit Monoclonal Antibody [JE37-00]

Usd: 385

Specification

Bulk Order Quote | Customization Request

Catalog# HA722728

SynGAP Recombinant Rabbit Monoclonal Antibody [JE37-00]

Application

  • WB

  • IHC-P

Reactivity

  • Human

  • Mouse

  • Rat

Conjugation

  • unconjugated

This product has been cited in peer reviewed publications, see list HERE

Overview

Product Name

SynGAP Recombinant Rabbit Monoclonal Antibody [JE37-00]

Antibody Type

Recombinant Rabbit monoclonal Antibody

Immunogen

Synthetic peptide within human SynGAP aa 1,294-1,343 / 1,343.

Species Reactivity

Human, Mouse, Rat

Validated Applications

WB, IHC-P

Molecular Weight

Predicted band size: 148 kDa

Positive Control

SH-SY5Y cell lysate, Human brain tissue lysate, Mouse brain tissue lysate, Rat brain tissue lysate, human brain tissue, mouse brain tissue, rat brain tissue.

Conjugation

unconjugated

Clone Number

JE37-00

Product Features

Form

Liquid

Concentration

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Storage Buffer

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG

Purification Method

Protein A affinity purified.

Application Dilution

  • WB

  • 1:1,000

  • IHC-P

  • 1:1,000

Target

Function

SynGAP1 is a complex protein with several functions that may be regulated temporally via complex isoforms. A well-documented function of SynGAP1 involves NMDA receptor-mediated synaptic plasticity and membrane insertion of AMPA receptors through the suppression of upstream signaling pathways. However, SynGAP1 has also been shown to function cooperatively with Unc51.1 in axon formation. One way SynGAP1 affects these processes is through the MAP kinase signaling pathway by attenuation of Ras signalling. However, alternative splicing and multiple translational start sites have been shown to cause opposing effects, illustrating the importance of multiple functional domains that reside within the c- and n-termini. For example, the expression of an α1 or α2 c-terminal variant of SynGAP1 will either increase or decrease synaptic strength, respectively. Overall, SynGAP1 is essential for development and survival, which is evident as knockout mice die perinatally.

Background References

1. Lv P et al. O-GlcNAcylation modulates liquid-liquid phase separation of SynGAP/PSD-95. Nat Chem. 2022 Jul

2. Gamache TR et al. Twenty Years of SynGAP Research: From Synapses to Cognition. J Neurosci. 2020 Feb

Subcellular Location

Cytosol, dendritic shaft, glutamatergic synapse, plasma membrane, postsynaptic density.

UNIPROT

SwissProt: Q96PV0 Human

SwissProt: F6SEU4 Mouse

SwissProt: Q9QUH6 Rat

Synonyms

DKFZp761G1421 antibody

KIAA1938 antibody

MRD5 antibody

Neuronal RasGAP antibody

OTTHUMP00000064825 antibody

p135 SynGAP antibody

Ras GTPase activating protein SynGAP antibody

Ras GTPase-activating protein SynGAP antibody

RASA 1 antibody

RASA 5 antibody

Expand

Images

  • Western blot analysis of SynGAP on different lysates with Rabbit anti-SynGAP antibody (<a href="/products/HA722728" style="font-weight: bold;text-decoration: underline;">HA722728</a>) at 1/1,000 dilution.<br /><br />Lane 1: SH-SY5Y cell lysate<br />Lane 2: Human brain tissue lysate<br /><br />Lysates/proteins at 40 µg/Lane.<br /><br />Predicted band size: 148 kDa<br />Observed band size: 148 kDa<br /><br />Exposure time: 1 minute; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA722728" style="font-weight: bold;text-decoration: underline;">HA722728</a>) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

    Western blot analysis of SynGAP on different lysates with Rabbit anti-SynGAP antibody (HA722728) at 1/1,000 dilution.

    Lane 1: SH-SY5Y cell lysate
    Lane 2: Human brain tissue lysate

    Lysates/proteins at 40 µg/Lane.

    Predicted band size: 148 kDa
    Observed band size: 148 kDa

    Exposure time: 1 minute; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA722728) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • Western blot analysis of SynGAP on different lysates with Rabbit anti-SynGAP antibody (<a href="/products/HA722728" style="font-weight: bold;text-decoration: underline;">HA722728</a>) at 1/1,000 dilution.<br /><br />Lane 1: Mouse brain tissue lysate<br />Lane 2: Rat brain tissue lysate<br /><br />Lysates/proteins at 40 µg/Lane.<br /><br />Predicted band size: 148 kDa<br />Observed band size: 148 kDa<br /><br />Exposure time: 1 minute; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA722728" style="font-weight: bold;text-decoration: underline;">HA722728</a>) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

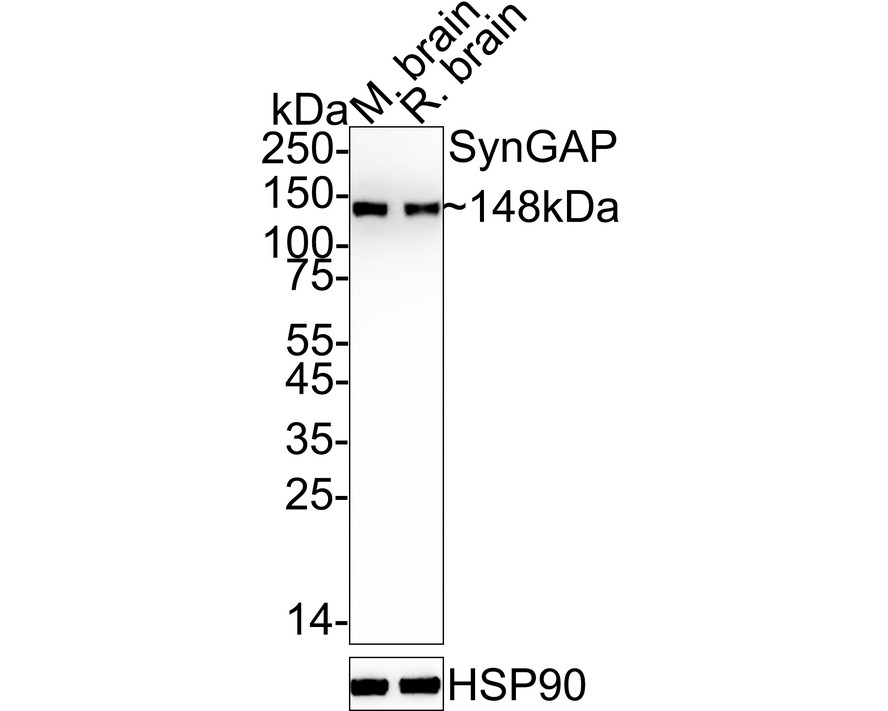

    Western blot analysis of SynGAP on different lysates with Rabbit anti-SynGAP antibody (HA722728) at 1/1,000 dilution.

    Lane 1: Mouse brain tissue lysate
    Lane 2: Rat brain tissue lysate

    Lysates/proteins at 40 µg/Lane.

    Predicted band size: 148 kDa
    Observed band size: 148 kDa

    Exposure time: 1 minute; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA722728) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • Immunohistochemical analysis of paraffin-embedded human brain tissue with Rabbit anti-SynGAP antibody (<a href="/products/HA722728" style="font-weight: bold;text-decoration: underline;">HA722728</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA722728" style="font-weight: bold;text-decoration: underline;">HA722728</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human brain tissue with Rabbit anti-SynGAP antibody (HA722728) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722728) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-SynGAP antibody (<a href="/products/HA722728" style="font-weight: bold;text-decoration: underline;">HA722728</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA722728" style="font-weight: bold;text-decoration: underline;">HA722728</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-SynGAP antibody (HA722728) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722728) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-SynGAP antibody (<a href="/products/HA722728" style="font-weight: bold;text-decoration: underline;">HA722728</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA722728" style="font-weight: bold;text-decoration: underline;">HA722728</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-SynGAP antibody (HA722728) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722728) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
