ICAM1 Recombinant Rabbit Monoclonal Antibody [JE77-69]

Usd: 385

Specification

Bulk Order Quote | Customization Request

Catalog# HA722417

ICAM1 Recombinant Rabbit Monoclonal Antibody [JE77-69]

Application

  • WB

  • IHC-P

Reactivity

  • Mouse

Conjugation

  • unconjugated

This product has been cited in peer reviewed publications, see list HERE

Overview

Product Name

ICAM1 Recombinant Rabbit Monoclonal Antibody [JE77-69]

Antibody Type

Recombinant Rabbit monoclonal Antibody

Immunogen

Recombinant protein within Mouse ICAM1 aa 1-300 / 537.

Species Reactivity

Mouse

Validated Applications

WB, IHC-P

Molecular Weight

Predicted band size: 59 kDa

Positive Control

Mouse kidney tissue lysate, mouse spleen tissue lysate, mouse lung tissue lysate, mouse liver tissue, mouse lung tissue.

Conjugation

unconjugated

Clone Number

JE77-69

Product Features

Form

Liquid

Concentration

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). Store at -20℃ long term.

Storage Buffer

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG

Purification Method

Protein A affinity purified.

Application Dilution

  • WB

  • 1:1,000

  • IHC-P

  • 1:10,000

Target

Function

This gene encodes a cell surface glycoprotein which is typically expressed on endothelial cells and cells of the immune system. It binds to integrins of type CD11a / CD18, or CD11b / CD18 and is also exploited by Rhinovirus as a receptor. ICAM proteins are ligands for the leukocyte adhesion protein LFA-1 (integrin alpha-L/beta-2). During leukocyte trans-endothelial migration, ICAM1 engagement promotes the assembly of endothelial apical cups through ARHGEF26/SGEF and RHOG activation. Homodimer (Probable). Interacts with MUC1 and promotes cell aggregation in epithelial cells. Interacts with ARHGEF26/SGEF. Interacts (on T cell side) with CD81, CD247 and CD9 at immunological synapses between antigen-presenting cells and T cells.

Background References

1. Bella J., Kolatkar P.R., Marlor C.W., Greve J.M., Rossmann M.G. The structure of the two amino-terminal domains of human ICAM-1 suggests how it functions as a rhinovirus receptor and as an LFA-1 integrin ligand. Proc. Natl. Acad. Sci. U.S.A. 95:4140-4145 (1998).

2. Shimaoka M., Xiao T., Liu J.H., Yang Y., Dong Y., Jun C.D., McCormack A., Zhang R., Joachimiak A., Springer T.A. Structures of the alpha L I domain and its complex with ICAM-1 reveal a shape-shifting pathway for integrin regulation. Cell 112:99-111 (2003)

Subcellular Location

Membrane.

UNIPROT

SwissProt: P13597 Mouse

Synonyms

Antigen identified by monoclonal antibody BB2 antibody

BB 2 antibody

BB2 antibody

CD 54 antibody

CD_antigen=CD54 antibody

CD54 antibody

Cell surface glycoprotein P3.58 antibody

Human rhinovirus receptor antibody

ICAM 1 antibody

ICAM-1 antibody

Expand

Images

  • Western blot analysis of ICAM1 on different lysates with Rabbit anti-ICAM1 antibody (<a href="/products/HA722417" style="font-weight: bold;text-decoration: underline;">HA722417</a>) at 1/1,000 dilution.<br /><br />Lane 1: Mouse kidney tissue lysate<br />Lane 2: Mouse spleen tissue lysate<br />Lane 3: Mouse lung tissue lysate<br /><br />Lysates/proteins at 40 µg/Lane.<br /><br />Predicted band size: 59 kDa<br />Observed band size: 100 kDa<br /><br />Exposure time: 4 seconds; ECL: K1801;<br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA722417" style="font-weight: bold;text-decoration: underline;">HA722417</a>) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

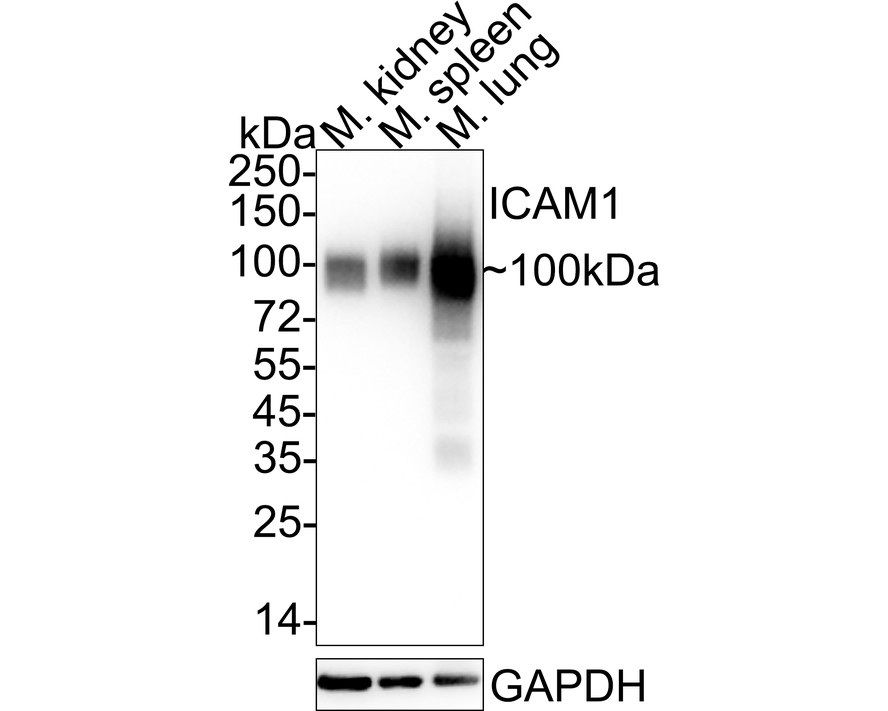

    Western blot analysis of ICAM1 on different lysates with Rabbit anti-ICAM1 antibody (HA722417) at 1/1,000 dilution.

    Lane 1: Mouse kidney tissue lysate
    Lane 2: Mouse spleen tissue lysate
    Lane 3: Mouse lung tissue lysate

    Lysates/proteins at 40 µg/Lane.

    Predicted band size: 59 kDa
    Observed band size: 100 kDa

    Exposure time: 4 seconds; ECL: K1801;
    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA722417) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • Immunohistochemical analysis of paraffin-embedded mouse liver tissue with Rabbit anti-ICAM1 antibody (<a href="/products/HA722417" style="font-weight: bold;text-decoration: underline;">HA722417</a>) at 1/10,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA722417" style="font-weight: bold;text-decoration: underline;">HA722417</a>) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse liver tissue with Rabbit anti-ICAM1 antibody (HA722417) at 1/10,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722417) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse lung tissue with Rabbit anti-ICAM1 antibody (<a href="/products/HA722417" style="font-weight: bold;text-decoration: underline;">HA722417</a>) at 1/10,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA722417" style="font-weight: bold;text-decoration: underline;">HA722417</a>) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse lung tissue with Rabbit anti-ICAM1 antibody (HA722417) at 1/10,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722417) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
