Ku70 Mouse Monoclonal Antibody [D1-A6]

Usd: 350

Specification

Bulk Order Quote | Customization Request

Catalog# EM50109

Ku70 Mouse Monoclonal Antibody [D1-A6]

Application

  • WB

  • IHC-P

Reactivity

  • Human

  • Mouse

  • Rat

  • Green monkey

Conjugation

  • unconjugated

Overview

Product Name

Ku70 Mouse Monoclonal Antibody [D1-A6]

Antibody Type

Mouse Monoclonal Antibody

Immunogen

Recombinant protein within human Ku70 aa 1-150/609.

Species Reactivity

Human, Mouse, Rat, Green monkey

Validated Applications

WB, IHC-P

Molecular Weight

Predicted band size: 70 kDa

Positive Control

A549 cell lysate, HeLa cell lysate, COS-1 cell lysate, human breast cancer tissue, human tonsils tissue, mouse colon tissue, mouse kidney tissue, mouse spleen tissue, rat kidney tissue.

Conjugation

unconjugated

Clone Number

D1-A6

RRID

AB_3069004

Product Features

Form

Liquid

Concentration

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). Store at -20℃ long term.

Storage Buffer

1*PBS (pH7.4), 0.2% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG2a

Purification Method

Protein A affinity purified.

Application Dilution

  • WB

  • 1:2,000

  • IHC-P

  • 1:1,000-1:2,000

Target

Function

Together, Ku70 and Ku80 make up the Ku heterodimer, which binds to DNA double-strand break ends and is required for the non-homologous end joining (NHEJ) pathway of DNA repair. It is also required for V(D)J recombination, which utilizes the NHEJ pathway to promote antigen diversity in the mammalian immune system.In addition to its role in NHEJ, Ku is also required for telomere length maintenance and subtelomeric gene silencing. Ku was originally identified when patients with systemic lupus erythematosus were found to have high levels of autoantibodies to the protein.

Background References

1. "55K isoform of CDK9 associates with Ku70 and is involved in DNA repair." Liu H., Herrmann C.H., Chiang K., Sung T.L., Moon S.H., Donehower L.A., Rice A.P. Biochem. Biophys. Res. Commun. 397:245-250(2010)

2. "Ku is a 5\'-dRP/AP lyase that excises nucleotide damage near broken ends." Roberts S.A., Strande N., Burkhalter M.D., Strom C., Havener J.M., Hasty P., Ramsden D.A. Nature 464:1214-1217(2010)

3. "Deformed epidermal autoregulatory factor-1 (DEAF1) interacts with the Ku70 subunit of the DNA-dependent protein kinase complex." Jensik P.J., Huggenvik J.I., Collard M.W. PLoS ONE 7:E33404-E33404(2012)

Sequence Similarity

Belongs to the ku70 family.

Post-translational Modification

Phosphorylation by PRKDC may enhance helicase activity. Phosphorylation of Ser-51 does not affect DNA repair.; ADP-ribosylated by PARP3.

Subcellular Location

Nucleus, Chromosome.

UNIPROT

SwissProt: P12956 Human

SwissProt: P23475 mouse

Entrez Gene: 25019 Rat

Synonyms

5'-deoxyribose-5-phosphate lyase Ku70 antibody

5'-dRP lyase Ku70 antibody

70 kDa subunit of Ku antigen antibody

ATP dependent DNA helicase 2 subunit 1 antibody

ATP dependent DNA helicase II 70 kDa subunit antibody

ATP-dependent DNA helicase 2 subunit 1 antibody

ATP-dependent DNA helicase II 70 kDa subunit antibody

CTC box binding factor 75 kDa subunit antibody

CTC box-binding factor 75 kDa subunit antibody

CTC75 antibody

Expand

Images

  • Western blot analysis of Ku70 on different lysates with Mouse anti-Ku70 antibody (<a href="/products/EM50109" style="font-weight: bold;text-decoration: underline;">EM50109</a>) at 1/2,000 dilution.<br /><br />Lane 1: A549 cell lysate<br />Lane 2: HeLa cell lysate<br />Lane 3: COS-1 cell lysate<br /><br />Lysates/proteins at 20 µg/Lane.<br /><br />Predicted band size: 70 kDa<br />Observed band size: 70 kDa<br /><br />Exposure time: 6 seconds; ECL: K1801;<br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/EM50109" style="font-weight: bold;text-decoration: underline;">EM50109</a>) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Mouse IgG - HRP Secondary Antibody (<a href="/products/HA1006" style="font-weight: bold;text-decoration: underline;">HA1006</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

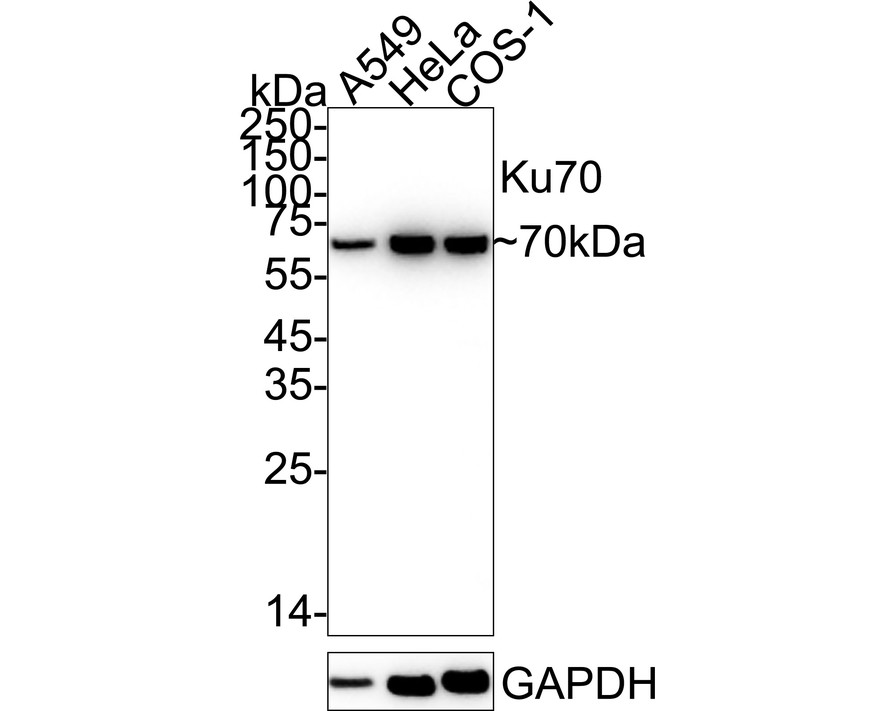

    Western blot analysis of Ku70 on different lysates with Mouse anti-Ku70 antibody (EM50109) at 1/2,000 dilution.

    Lane 1: A549 cell lysate
    Lane 2: HeLa cell lysate
    Lane 3: COS-1 cell lysate

    Lysates/proteins at 20 µg/Lane.

    Predicted band size: 70 kDa
    Observed band size: 70 kDa

    Exposure time: 6 seconds; ECL: K1801;
    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (EM50109) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Mouse IgG - HRP Secondary Antibody (HA1006) at 1/50,000 dilution was used for 1 hour at room temperature.

  • Immunohistochemical analysis of paraffin-embedded human breast cancer tissue with Mouse anti-Ku70 antibody (<a href="/products/EM50109" style="font-weight: bold;text-decoration: underline;">EM50109</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/EM50109" style="font-weight: bold;text-decoration: underline;">EM50109</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human breast cancer tissue with Mouse anti-Ku70 antibody (EM50109) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (EM50109) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded human tonsils tissue with Mouse anti-Ku70 antibody (<a href="/products/EM50109" style="font-weight: bold;text-decoration: underline;">EM50109</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/EM50109" style="font-weight: bold;text-decoration: underline;">EM50109</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human tonsils tissue with Mouse anti-Ku70 antibody (EM50109) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (EM50109) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse colon tissue with Mouse anti-Ku70 antibody (<a href="/products/EM50109" style="font-weight: bold;text-decoration: underline;">EM50109</a>) at 1/2,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/EM50109" style="font-weight: bold;text-decoration: underline;">EM50109</a>) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse colon tissue with Mouse anti-Ku70 antibody (EM50109) at 1/2,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (EM50109) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Mouse anti-Ku70 antibody (<a href="/products/EM50109" style="font-weight: bold;text-decoration: underline;">EM50109</a>) at 1/2,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/EM50109" style="font-weight: bold;text-decoration: underline;">EM50109</a>) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Mouse anti-Ku70 antibody (EM50109) at 1/2,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (EM50109) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse spleen tissue with Mouse anti-Ku70 antibody (<a href="/products/EM50109" style="font-weight: bold;text-decoration: underline;">EM50109</a>) at 1/2,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/EM50109" style="font-weight: bold;text-decoration: underline;">EM50109</a>) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse spleen tissue with Mouse anti-Ku70 antibody (EM50109) at 1/2,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (EM50109) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Mouse anti-Ku70 antibody (<a href="/products/EM50109" style="font-weight: bold;text-decoration: underline;">EM50109</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/EM50109" style="font-weight: bold;text-decoration: underline;">EM50109</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Mouse anti-Ku70 antibody (EM50109) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (EM50109) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
