Claudin 5 Recombinant Rabbit Monoclonal Antibody [JM11-22]

Usd: 205

Specification

Bulk Order Quote | Customization Request

Catalog# ET1703-58

Claudin 5 Recombinant Rabbit Monoclonal Antibody [JM11-22]

Application

  • WB

  • IHC-P

Reactivity

  • Human

BSA and Azide free
Conjugation

  • unconjugated

This product has been cited in peer reviewed publications, see list HERE

Overview

Product Name

Claudin 5 Recombinant Rabbit Monoclonal Antibody [JM11-22]

Antibody Type

Recombinant Rabbit monoclonal Antibody

Immunogen

Synthetic peptide within Human Claudin 5 aa 191-214 / 218.

Species Reactivity

Human

Validated Applications

WB, IHC-P

Molecular Weight

Predicted band size: 23 kDa

Positive Control

Human brain tissue lysate, Human lung tissue lysate, Human kidney tissue lysate, human tonsil tissue, human kidney tissue, human lung tissue, human lymph nodes tissue.

Conjugation

unconjugated

Clone Number

JM11-22

RRID

AB_3070414

Product Features

Form

Liquid

Concentration

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Storage Buffer

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG

Purification Method

Protein A affinity purified.

Application Dilution

  • WB

  • 1:5,000

  • IHC-P

  • 1:200-1:1,000

Target

Function

The claudin superfamily consists of many structurally related proteins in humans. These proteins are important structural and functional components of tight junctions in paracellular transport. Claudins are located in both epithelial and endothelial cells in all tight junction-bearing tissues. Three classes of proteins are known to localize to tight junctions, including the claudins, Occludin and Junction adhesion molecule. Claudins, which consist of four transmembrane domains and two extracellular loops make up tight junction strands. Claudin expression is highly restricted to specfic regions of different tissues and may have an important role in transcellular transport through tight junctions. Claudin-5 is expressed in the endothelial junctions of the rat liver and in junctions of acinar cells of the pancreas. Human Claudin-5 is abundantly expressed in adult lung, heart and skeletal muscle and is deleted in patients with velocardiofacial syndrone, which is characterized by cleft palate, facial dysmorphology and conotruncal heart defects.

Background References

1. Macrez R et al. Neuroendothelial NMDA receptors as therapeutic targets in experimental autoimmune encephalomyelitis. Brain 139:2406-19 (2016).

2. Kuan WL et al. a-Synuclein pre-formed fibrils impair tight junction protein expression without affecting cerebral endothelial cell function. Exp Neurol 285:72-81 (2016).

Sequence Similarity

Belongs to the claudin family.

Subcellular Location

Cell junction. Cell membrane.

UNIPROT

SwissProt: O00501 Human

Synonyms

Androgen withdrawal and apoptosis induced protein RVP1 like antibody

AWAL antibody

BEC 1 antibody

BEC1 antibody

Claudin 5 (transmembrane protein deleted in velocardiofacial syndrome) antibody

Claudin-5 antibody

Claudin5 antibody

CLD5_HUMAN antibody

CLDN 5 antibody

Cldn5 antibody

Expand

Images

  • Western blot analysis of Claudin 5 on different lysates with Rabbit anti-Claudin 5 antibody (<a href="/products/ET1703-58" style="font-weight: bold;text-decoration: underline;">ET1703-58</a>) at 1/5,000 dilution.<br /><br />Lane 1: Human brain tissue lysate<br />Lane 2: Human lung tissue lysate<br />Lane 3: Human kidney tissue lysate<br /><br />Lysates/proteins at 20 µg/Lane.<br /><br />Predicted band size: 23 kDa<br />Observed band size: 20 kDa<br /><br />Exposure time: 3 minutes; ECL: K1801;<br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/ET1703-58" style="font-weight: bold;text-decoration: underline;">ET1703-58</a>) at 1/5,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

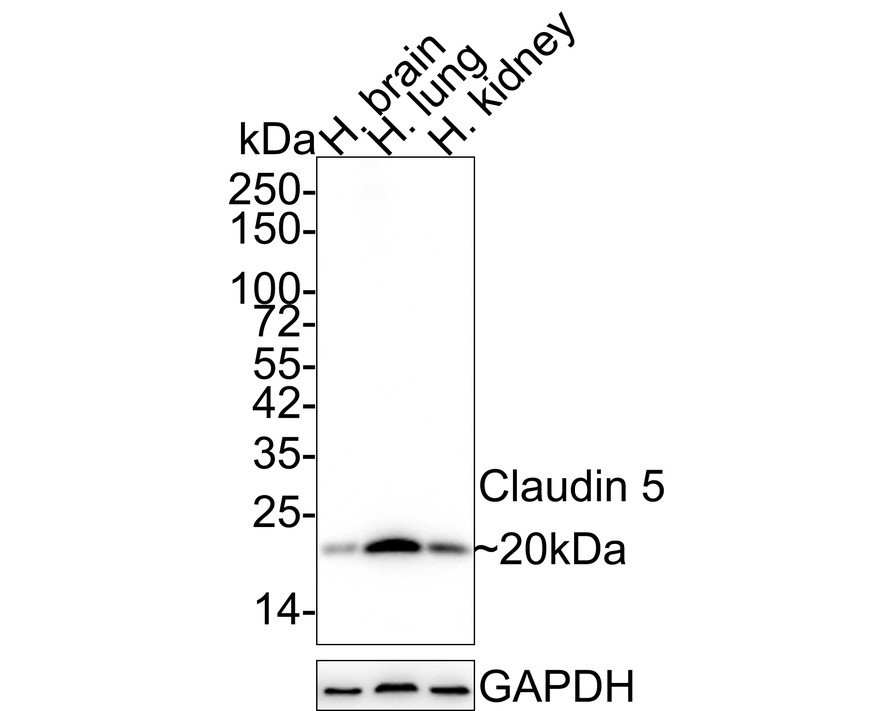

    Western blot analysis of Claudin 5 on different lysates with Rabbit anti-Claudin 5 antibody (ET1703-58) at 1/5,000 dilution.

    Lane 1: Human brain tissue lysate
    Lane 2: Human lung tissue lysate
    Lane 3: Human kidney tissue lysate

    Lysates/proteins at 20 µg/Lane.

    Predicted band size: 23 kDa
    Observed band size: 20 kDa

    Exposure time: 3 minutes; ECL: K1801;
    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1703-58) at 1/5,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • Immunohistochemical analysis of paraffin-embedded human tonsil tissue with Rabbit anti-Claudin 5 antibody (<a href="/products/ET1703-58" style="font-weight: bold;text-decoration: underline;">ET1703-58</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ET1703-58" style="font-weight: bold;text-decoration: underline;">ET1703-58</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human tonsil tissue with Rabbit anti-Claudin 5 antibody (ET1703-58) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1703-58) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-Claudin 5 antibody (<a href="/products/ET1703-58" style="font-weight: bold;text-decoration: underline;">ET1703-58</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ET1703-58" style="font-weight: bold;text-decoration: underline;">ET1703-58</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-Claudin 5 antibody (ET1703-58) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1703-58) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded human lung tissue with Rabbit anti-Claudin 5 antibody (<a href="/products/ET1703-58" style="font-weight: bold;text-decoration: underline;">ET1703-58</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ET1703-58" style="font-weight: bold;text-decoration: underline;">ET1703-58</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human lung tissue with Rabbit anti-Claudin 5 antibody (ET1703-58) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1703-58) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded human lymph nodes tissue with Rabbit anti-Claudin 5 antibody (<a href="/products/ET1703-58" style="font-weight: bold;text-decoration: underline;">ET1703-58</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ET1703-58" style="font-weight: bold;text-decoration: underline;">ET1703-58</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human lymph nodes tissue with Rabbit anti-Claudin 5 antibody (ET1703-58) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1703-58) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
