ICC staining Fibulin 5 in JAR cells (green). The nuclear counter stain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilised with 0.25% Triton X100/PBS.
-
ICC staining Fibulin 5 in SiHa cells (green). The nuclear counter stain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilised with 0.25% Triton X100/PBS.
-
ICC staining Fibulin 5 in SKOV-3 cells (green). The nuclear counter stain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilised with 0.25% Triton X100/PBS.
-
Immunohistochemical analysis of paraffin-embedded rat testis tissue using anti-Fibulin 5 antibody. Counter stained with hematoxylin.
-
Immunohistochemical analysis of paraffin-embedded mouse ovary tissue using anti-Fibulin 5 antibody. Counter stained with hematoxylin.
-
Immunocytochemistry analysis of Hela cells labeling Fibulin 5 with Rabbit anti-Fibulin 5 antibody (ER1802-95) at 1/100 dilution.
Cells were fixed in 4% paraformaldehyde for 10 minutes at 37 ℃, permeabilized with 0.05% Triton X-100 in PBS for 20 minutes, and then blocked with 2% negative goat serum for 30 minutes at room temperature. Cells were then incubated with Rabbit anti-Fibulin 5 antibody (ER1802-95) at 1/100 dilution in 2% negative goat serum overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) was used as the secondary antibody at 1/1,000 dilution. Nuclear DNA was labelled in blue with DAPI.
Beta tubulin (M1305-2, red) was stained at 1/200 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (Alexa Fluor® 647) were used as the secondary antibody at 1/1,000 dilution.
-
Western blot analysis of Fibulin 5 on different lysates with Rabbit anti-Fibulin 5 antibody (ER1802-95) at 1/1,000 dilution.
Lane 1: Rat testis tissue lysate
Lysates/proteins at 40 µg/Lane.
Exposure time: 1 minutes; ECL: K1801
Blocking: 5% NFDM/TBST, 1 hour at room temperature
Primary antibody: ER1802-95, 1/1,000 in primary antibody dilution buffer (K1803), overnight at 4 ℃
Secondary antibody: Goat anti-Rabbit IgG-HRP (HA1001), 1/50,000 in 5% NFDM/TBST, 1 hour at room temperature
Predicted band size: 50.2 kDa
Observed band size: 50 kDa
-

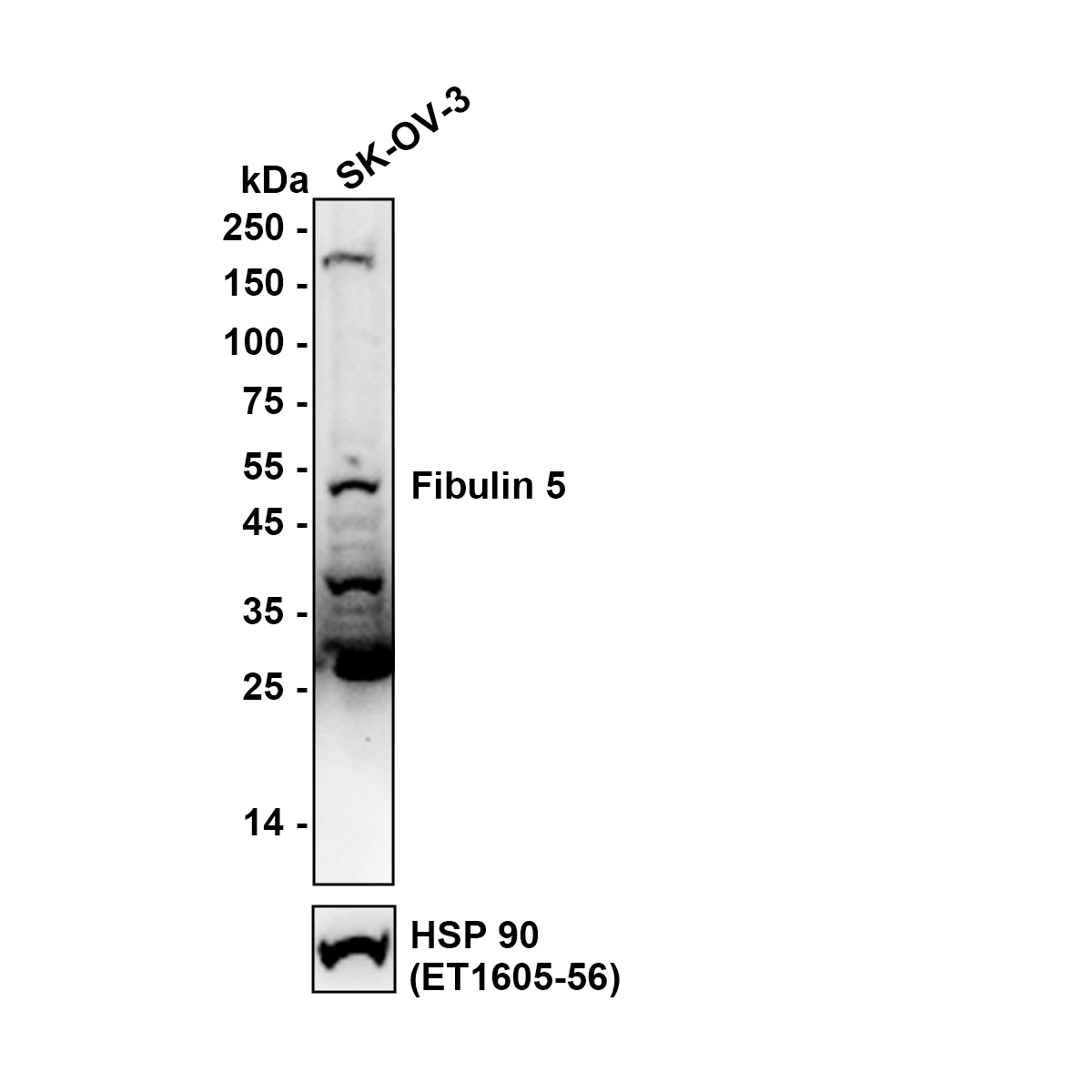

Western blot analysis of Fibulin 5 on different lysates with Rabbit anti-Fibulin 5 antibody (ER1802-95) at 1/1,000 dilution.
Lane 1: SK-OV-3 (human ovarian cancer cells) cell tissue lysate
Lysates/proteins at 20 µg/Lane.
Exposure time: 1 minutes; ECL: K1801
Blocking: 5% NFDM/TBST, 1 hour at room temperature
Primary antibody: ER1802-95, 1/1,000 in primary antibody dilution buffer (K1803), overnight at 4 ℃
Secondary antibody: Goat anti-Rabbit IgG-HRP (HA1001), 1/50,000 in 5% NFDM/TBST, 1 hour at room temperature
Predicted band size: 50.2 kDa
Observed band size: 50 kDa
-

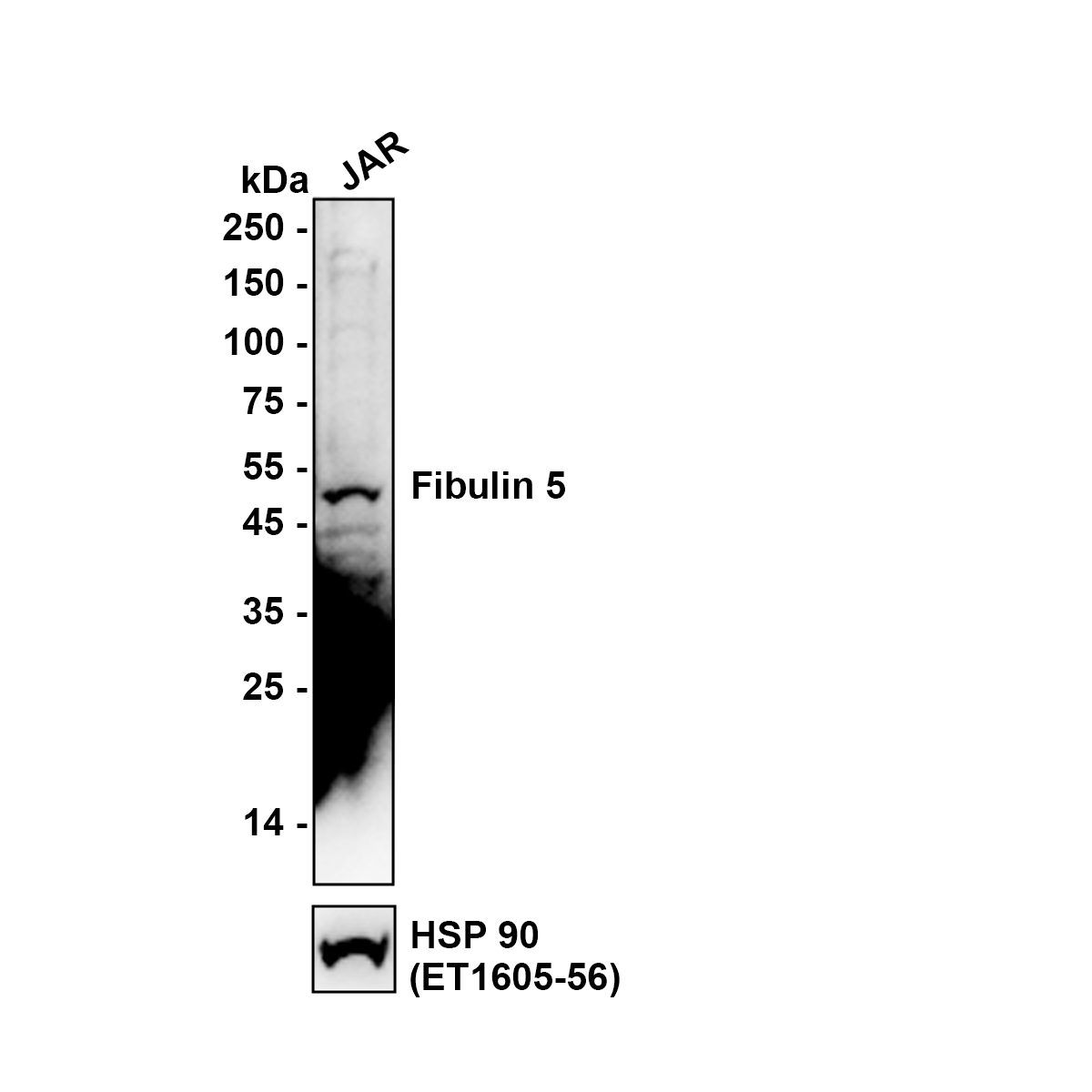

Western blot analysis of Fibulin 5 on different lysates with Rabbit anti-Fibulin 5 antibody (ER1802-95) at 1/1,000 dilution.
Lane 1: JAR (human choriocarcinoma cells) cell tissue lysate
Lysates/proteins at 20 µg/Lane.
Exposure time: 1 minutes; ECL: K1801
Blocking: 5% NFDM/TBST, 1 hour at room temperature
Primary antibody: ER1802-95, 1/1,000 in primary antibody dilution buffer (K1803), overnight at 4 ℃
Secondary antibody: Goat anti-Rabbit IgG-HRP (HA1001), 1/50,000 in 5% NFDM/TBST, 1 hour at room temperature
Predicted band size: 50.2 kDa
Observed band size: 50 kDa
Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
