Glypican 5 Rabbit Polyclonal Antibody

Usd: 315

Specification

Bulk Order Quote | Customization Request

Catalog# HA500040

Glypican 5 Rabbit Polyclonal Antibody

Application

  • WB

  • IF-Cell

  • IHC-P

  • FC

Reactivity

  • Human

  • Mouse

  • Rat

Conjugation

  • unconjugated

Overview

Product Name

Glypican 5 Rabbit Polyclonal Antibody

Antibody Type

Rabbit Polyclonal Antibody

Immunogen

Synthetic peptide within human Glypican 5 aa 20-70.

Species Reactivity

Human, Mouse, Rat

Validated Applications

WB, IF-Cell, IHC-P, FC

Target Molecular Weight

Predicted band size: 64 kDa

Positive Control

HepG2 cell lysate, A549 cell lysate, Hela, rat kidney tissue, human lung tissue, mouse brain tissue, Hela.

Conjugation

unconjugated

RRID

AB_3071140

Product Features

Form

Liquid

Concentration

1 mg/mL.(The concentration of this product may be batch-dependent)

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Storage Buffer

1*TBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG

Purification Method

Immunogen affinity purified.

Application Dilution

  • WB

  • 1:500-1:1,000

  • IF-Cell

  • 1:50-1:200

  • IHC-P

  • 1:50-1:200

  • FC

  • 1:500-1:1,000

Target

Function

Glypican-5 is a protein that in humans is encoded by the GPC5 gene.Cell surface heparan sulfate proteoglycans are composed of a membrane-associated protein core substituted with a variable number of heparan sulfate chains. Members of the glypican-related integral membrane proteoglycan family (GRIPS) contain a core protein anchored to the cytoplasmic membrane via a glycosyl phosphatidylinositol linkage. These proteins may play a role in the control of cell division and growth regulation.

Background References

1. Veugelers M. et. al. Characterization of glypican-5 and chromosomal localization of human GPC5, a new member of the glypican gene family. Genomics 40:24-30(1997).

Subcellular Location

Cell membrane, Membrane, Secreted.

UNIPROT

SwissProt: P78333 Human

SwissProt: Q8CAL5 Mouse

Synonyms

bA93M14.1 antibody

glypican 5 antibody

Glypican 5 precursor antibody

glypican proteoglycan 5 antibody

Glypican-5 antibody

GPC5 antibody

GPC5_HUMAN antibody

Secreted glypican-5 antibody

Images

  • Western blot analysis of Glypican 5 on A549 (Human lung adenocarcinoma cell) cell lysate with Rabbit anti-Glypican 5 antibody (<a href="/products/HA500040" style="font-weight: bold;text-decoration: underline;">HA500040</a>) at 1/1,000 dilution.<br /> <br />Lysates/proteins at 10 µg/Lane.<br />Exposure time: 110 seconds; ECL: K1801<br /><br />Blocking: 5% NFDM/TBST, 1 hour at room temperature<br />Primary antibody: <a href="/products/HA500040" style="font-weight: bold;text-decoration: underline;">HA500040</a>, 1/1,000 in 5% NFDM/TBST, overnight at 4°<br />Secondary antibody: Goat anti-Rabbit IgG-HRP (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>), 1/50,000 in 5% NFDM/TBST, 1 hour at room temperature<br /><br />Predicted band size: 64 kDa<br />Observed band size: 64 kDa

    Western blot analysis of Glypican 5 on A549 (Human lung adenocarcinoma cell) cell lysate with Rabbit anti-Glypican 5 antibody (HA500040) at 1/1,000 dilution.

    Lysates/proteins at 10 µg/Lane.
    Exposure time: 110 seconds; ECL: K1801

    Blocking: 5% NFDM/TBST, 1 hour at room temperature
    Primary antibody: HA500040, 1/1,000 in 5% NFDM/TBST, overnight at 4°
    Secondary antibody: Goat anti-Rabbit IgG-HRP (HA1001), 1/50,000 in 5% NFDM/TBST, 1 hour at room temperature

    Predicted band size: 64 kDa
    Observed band size: 64 kDa

  • Western blot analysis of Glypican 5 on Hep G2 (Human hepatocellular carcinoma cell) cell lysate with Rabbit anti-Glypican 5 antibody (<a href="/products/HA500040" style="font-weight: bold;text-decoration: underline;">HA500040</a>) at 1/1,000 dilution.<br /><br />Lysates/proteins at 10 µg/Lane.<br />Exposure time: 25 seconds; ECL: K1801<br /><br />Blocking: 5% NFDM/TBST, 1 hour at room temperature<br />Primary antibody: <a href="/products/HA500040" style="font-weight: bold;text-decoration: underline;">HA500040</a>, 1/1,000 in 5% NFDM/TBST, overnight at 4°<br />Secondary antibody: Goat anti-Rabbit IgG-HRP (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>), 1/50,000 in 5% NFDM/TBST, 1 hour at room temperature<br /><br />Predicted band size: 64 kDa<br />Observed band size: 64 kDa

    Western blot analysis of Glypican 5 on Hep G2 (Human hepatocellular carcinoma cell) cell lysate with Rabbit anti-Glypican 5 antibody (HA500040) at 1/1,000 dilution.

    Lysates/proteins at 10 µg/Lane.
    Exposure time: 25 seconds; ECL: K1801

    Blocking: 5% NFDM/TBST, 1 hour at room temperature
    Primary antibody: HA500040, 1/1,000 in 5% NFDM/TBST, overnight at 4°
    Secondary antibody: Goat anti-Rabbit IgG-HRP (HA1001), 1/50,000 in 5% NFDM/TBST, 1 hour at room temperature

    Predicted band size: 64 kDa
    Observed band size: 64 kDa

  • ICC staining of Glypican 5 in Hela cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (<a href="/products/HA500040" style="font-weight: bold;text-decoration: underline;">HA500040</a>, 1/100) for 1 hour at room temperature, washed with PBS. Alexa Fluor&reg;488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

    ICC staining of Glypican 5 in Hela cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (HA500040, 1/100) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

  • Immunohistochemical analysis of paraffin-embedded rat kidney tissue using anti-Glypican 5 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA500040" style="font-weight: bold;text-decoration: underline;">HA500040</a>, 1/100) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat kidney tissue using anti-Glypican 5 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA500040, 1/100) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded human lung tissue using anti-Glypican 5 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA500040" style="font-weight: bold;text-decoration: underline;">HA500040</a>, 1/100) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human lung tissue using anti-Glypican 5 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA500040, 1/100) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse brain tissue using anti-Glypican 5 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA500040" style="font-weight: bold;text-decoration: underline;">HA500040</a>, 1/100) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse brain tissue using anti-Glypican 5 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA500040, 1/100) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Flow cytometric analysis of Hela cells labeling Glypican 5.<br /><br />Cells were fixed and permeabilized. Then stained with the primary antibody (<a href="/products/HA500040" style="font-weight: bold;text-decoration: underline;">HA500040</a>, 1ug/ml) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor&trade; 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (<a href="/products/HA1121" style="font-weight: bold;text-decoration: underline;">HA1121</a>) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

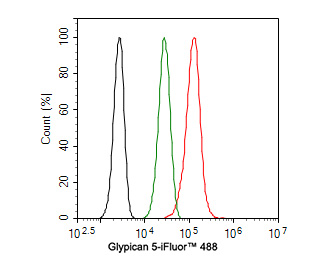

    Flow cytometric analysis of Hela cells labeling Glypican 5.

    Cells were fixed and permeabilized. Then stained with the primary antibody (HA500040, 1ug/ml) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
