Ephrin A1 Mouse Monoclonal Antibody [A7B10]

Usd: 350

Specification

Bulk Order Quote | Customization Request

Catalog# HA601038

Ephrin A1 Mouse Monoclonal Antibody [A7B10]

Application

  • WB

  • IF-Cell

  • IHC-P

Reactivity

  • Human

  • Mouse

  • Rat

Conjugation

  • unconjugated

Overview

Product Name

Ephrin A1 Mouse Monoclonal Antibody [A7B10]

Antibody Type

Mouse Monoclonal Antibody

Immunogen

Recombinant protein within Human Ephrin A1 aa 13-190 / 205.

Species Reactivity

Human, Mouse, Rat

Validated Applications

WB, IF-Cell, IHC-P

Molecular Weight

Predicted band size: 24 kDa

Positive Control

HUVEC cell lysates, SK-Br-3 cell lysates, HUVEC, SK-Br-3, human breast cancer tissue, mouse brain tissue, rat brain tissue.

Conjugation

unconjugated

Clone Number

A7B10

RRID

AB_3071762

Product Features

Form

Liquid

Concentration

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). Store at -20℃ long term.

Storage Buffer

PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG1

Purification Method

Protein A affinity purified.

Application Dilution

  • WB

  • 1:1,000-1:2,000

  • IF-Cell

  • 1:100

  • IHC-P

  • 1:500

Target

Function

Ephrin A1 is a protein that in humans is encoded by the EFNA1 gene. This gene encodes a member of the ephrin (EPH) family. The ephrins and EPH-related receptors comprise the largest subfamily of receptor protein-tyrosine kinases and have been implicated in mediating developmental events, especially in the nervous system and in erythropoiesis. Based on their structures and sequence relationships, ephrins are divided into the ephrin-A (EFNA) class, which are anchored to the membrane by a glycosylphosphatidylinositol linkage, and the ephrin-B (EFNB) class, which are transmembrane proteins. This gene encodes an EFNA class ephrin which binds to the EPHA2, EPHA4, EPHA5, EPHA6, and EPHA7 receptors. Two transcript variants that encode different isoforms were identified through sequence analysis. Model organisms have been used in the study of EFNA1 function.

Background References

1. Hao YP. et. al. EFNA1 is a potential key gene that correlates with immune infiltration in low-grade glioma. Medicine (Baltimore). 2021 Jun

2. Hao Y. et. al. Role of EFNA1 in tumorigenesis and prospects for cancer therapy. Biomed Pharmacother. 2020 Oct

Subcellular Location

Cell membrane, Secreted.

UNIPROT

SwissProt: P20827 Human

SwissProt: P52793 Mouse

SwissProt: P97553 Rat

Synonyms

B61 antibody

ECKLG antibody

EFL 1 antibody

EFL1 antibody

EFNA 1 antibody

Efna1 antibody

EFNA1_HUMAN antibody

EPH related receptor tyrosine kinase ligand 1 antibody

EPH-related receptor tyrosine kinase ligand 1 antibody

Ephrin-A1 antibody

Expand

Images

  • Western blot analysis of Ephrin A1 on HUVEC cell lysates with Mouse anti-Ephrin A1 antibody (<a href="/products/HA601038" style="font-weight: bold;text-decoration: underline;">HA601038</a>) at 1/2,000 dilution.<br /><br />Lysates/proteins at 20 µg/Lane.<br /><br />Predicted band size: 24 kDa<br />Observed band size: 25 kDa<br /><br />Exposure time: 3 minutes;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA601038" style="font-weight: bold;text-decoration: underline;">HA601038</a>) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Anti-Mouse IgG for IP Nano-secondary antibody (<a href="/products/NBI02H" style="font-weight: bold;text-decoration: underline;">NBI02H</a>) at 1/5,000 dilution was used for 1 hour at room temperature.

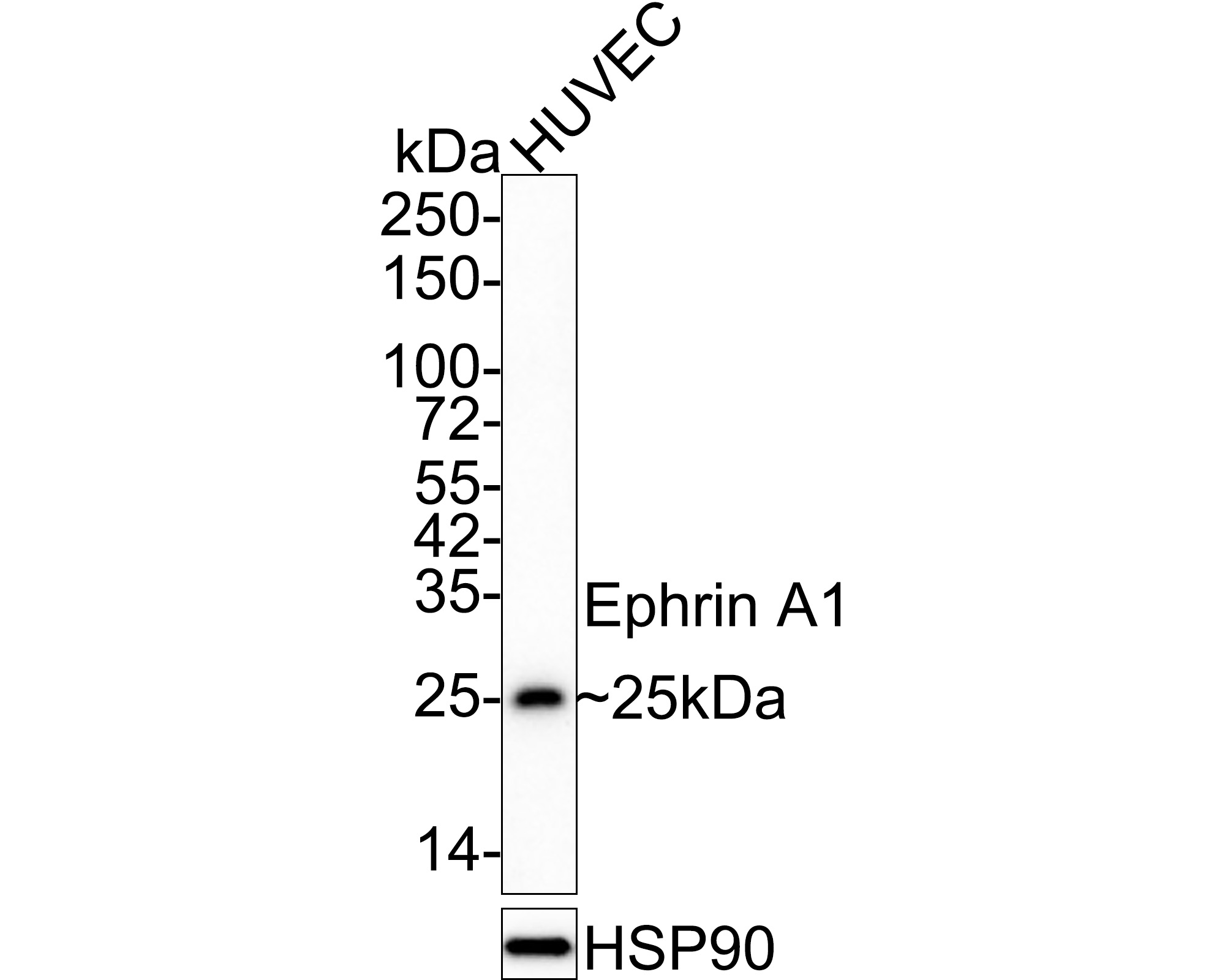

    Western blot analysis of Ephrin A1 on HUVEC cell lysates with Mouse anti-Ephrin A1 antibody (HA601038) at 1/2,000 dilution.

    Lysates/proteins at 20 µg/Lane.

    Predicted band size: 24 kDa
    Observed band size: 25 kDa

    Exposure time: 3 minutes;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA601038) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Anti-Mouse IgG for IP Nano-secondary antibody (NBI02H) at 1/5,000 dilution was used for 1 hour at room temperature.

  • Western blot analysis of Ephrin A1 on SK-Br-3 cell lysates with Mouse anti-Ephrin A1 antibody (<a href="/products/HA601038" style="font-weight: bold;text-decoration: underline;">HA601038</a>) at 1/1,000 dilution.<br /><br />Lysates/proteins at 20 µg/Lane.<br /><br />Predicted band size: 24 kDa<br />Observed band size: 24 kDa<br /><br />Exposure time: 6 seconds; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA601038" style="font-weight: bold;text-decoration: underline;">HA601038</a>) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Mouse IgG - HRP Secondary Antibody (<a href="/products/HA1006" style="font-weight: bold;text-decoration: underline;">HA1006</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

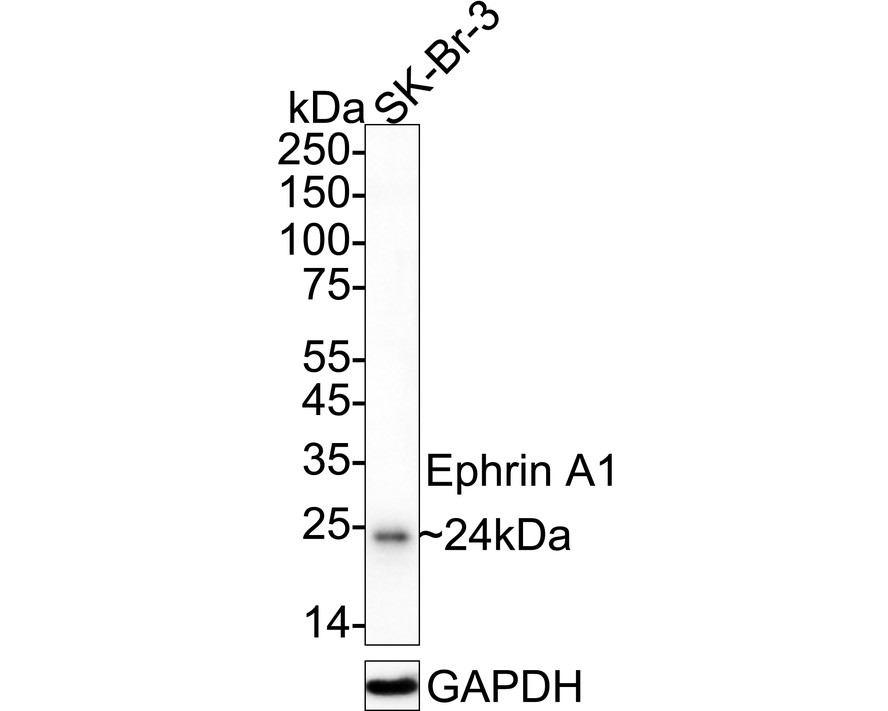

    Western blot analysis of Ephrin A1 on SK-Br-3 cell lysates with Mouse anti-Ephrin A1 antibody (HA601038) at 1/1,000 dilution.

    Lysates/proteins at 20 µg/Lane.

    Predicted band size: 24 kDa
    Observed band size: 24 kDa

    Exposure time: 6 seconds; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA601038) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Mouse IgG - HRP Secondary Antibody (HA1006) at 1/50,000 dilution was used for 1 hour at room temperature.

  • Immunocytochemistry analysis of HUVEC cells labeling Ephrin A1 with Mouse anti-Ephrin A1 antibody (<a href="/products/HA601038" style="font-weight: bold;text-decoration: underline;">HA601038</a>) at 1/100 dilution.<br /><br />Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Mouse anti-Ephrin A1 antibody (<a href="/products/HA601038" style="font-weight: bold;text-decoration: underline;">HA601038</a>) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Mouse IgG H&L (iFluor&trade; 488, <a href="/products/HA1125" style="font-weight: bold;text-decoration: underline;">HA1125</a>) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.<br /><br />beta Tubulin (<a href="/products/ET1602-4" style="font-weight: bold;text-decoration: underline;">ET1602-4</a>, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Rabbit IgG H&L (iFluor&trade; 594, <a href="/products/HA1122" style="font-weight: bold;text-decoration: underline;">HA1122</a>) were used as the secondary antibody at 1/1,000 dilution.

    Immunocytochemistry analysis of HUVEC cells labeling Ephrin A1 with Mouse anti-Ephrin A1 antibody (HA601038) at 1/100 dilution.

    Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Mouse anti-Ephrin A1 antibody (HA601038) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Mouse IgG H&L (iFluor™ 488, HA1125) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

    beta Tubulin (ET1602-4, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Rabbit IgG H&L (iFluor™ 594, HA1122) were used as the secondary antibody at 1/1,000 dilution.

  • Immunocytochemistry analysis of SK-Br-3 cells labeling Ephrin A1 with Mouse anti-Ephrin A1 antibody (<a href="/products/HA601038" style="font-weight: bold;text-decoration: underline;">HA601038</a>) at 1/100 dilution.<br /><br />Cells were fixed in 4% paraformaldehyde for 30 minutes, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes, and then blocked with 2% BSA for 30 minutes at room temperature. Cells were then incubated with Mouse anti-Ephrin A1 antibody (<a href="/products/HA601038" style="font-weight: bold;text-decoration: underline;">HA601038</a>) at 1/100 dilution in 2% BSA overnight at 4 ℃. Goat Anti-Mouse IgG H&L (iFluor&trade; 488, <a href="/products/HA1125" style="font-weight: bold;text-decoration: underline;">HA1125</a>) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

    Immunocytochemistry analysis of SK-Br-3 cells labeling Ephrin A1 with Mouse anti-Ephrin A1 antibody (HA601038) at 1/100 dilution.

    Cells were fixed in 4% paraformaldehyde for 30 minutes, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes, and then blocked with 2% BSA for 30 minutes at room temperature. Cells were then incubated with Mouse anti-Ephrin A1 antibody (HA601038) at 1/100 dilution in 2% BSA overnight at 4 ℃. Goat Anti-Mouse IgG H&L (iFluor™ 488, HA1125) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

  • Immunohistochemical analysis of paraffin-embedded human breast cancer tissue with Mouse anti-Ephrin A1 antibody (<a href="/products/HA601038" style="font-weight: bold;text-decoration: underline;">HA601038</a>) at 1/500 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA601038" style="font-weight: bold;text-decoration: underline;">HA601038</a>) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human breast cancer tissue with Mouse anti-Ephrin A1 antibody (HA601038) at 1/500 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA601038) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Mouse anti-Ephrin A1 antibody (<a href="/products/HA601038" style="font-weight: bold;text-decoration: underline;">HA601038</a>) at 1/500 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA601038" style="font-weight: bold;text-decoration: underline;">HA601038</a>) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Mouse anti-Ephrin A1 antibody (HA601038) at 1/500 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA601038) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat brain tissue with Mouse anti-Ephrin A1 antibody (<a href="/products/HA601038" style="font-weight: bold;text-decoration: underline;">HA601038</a>) at 1/500 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA601038" style="font-weight: bold;text-decoration: underline;">HA601038</a>) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat brain tissue with Mouse anti-Ephrin A1 antibody (HA601038) at 1/500 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA601038) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
