MAG Recombinant Antibody [PSH02-41] - Rat IgG1 (Chimeric) - BSA and Azide free

Usd: 649

Specification

Bulk Order Quote | Customization Request

Catalog# HA610254

MAG Recombinant Antibody [PSH02-41] - Rat IgG1 (Chimeric) - BSA and Azide free

Application

  • IHC-Fr

  • IHC-P

  • WB

  • IF-Tissue

Reactivity

  • Human

  • Mouse

  • Rat

With BSA and Azide
Predicted reactivity

  • Cynomolgus monkey

  • Pig

Predicted species support after-sales service
Conjugation

  • unconjugated

Overview

Product Name

MAG Recombinant Antibody [PSH02-41] - Rat IgG1 (Chimeric) - BSA and Azide free

Antibody Type

Recombinant Chimeric Antibody

Immunogen

Recombinant protein within human MAG aa 1-536 / 626.

Species Reactivity

Human, Mouse, Rat (Predicted: Cynomolgus monkey, Pig)

Predicted species support after-sales service

Validated Applications

IHC-Fr, IHC-P, WB, IF-Tissue

Molecular Weight

Predicted band size: 69 kDa

Positive Control

Human cerebellum tissue, mouse cerebellum tissue, rat cerebellum tissue, Mouse cerebellum tissue lysate, Rat cerebellum tissue lysate.

Conjugation

unconjugated

Clone Number

PSH02-41

Product Features

Form

Liquid

Concentration

1mg/ml

Storage Instructions

Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles.

Storage Buffer

1*PBS (pH7.4).

Purification Method

Protein A affinity purified.

Application Dilution

  • IHC-Fr

  • 1:500-1:1,000

  • IHC-P

  • 1:500

  • WB

  • 1:2,000

  • IF-Tissue

  • 1:500-1:1,000

Target

Function

Adhesion molecule that mediates interactions between myelinating cells and neurons by binding to neuronal sialic acid-containing gangliosides and to the glycoproteins RTN4R and RTN4RL2 (By similarity). Not required for initial myelination, but seems to play a role in the maintenance of normal axon myelination. Protects motoneurons against apoptosis, also after injury; protection against apoptosis is probably mediated via interaction with neuronal RTN4R and RTN4RL2. Required to prevent degeneration of myelinated axons in adults; this probably depends on binding to gangliosides on the axon cell membrane (By similarity). Negative regulator of neurite outgrowth; in dorsal root ganglion neurons the inhibition is mediated primarily via binding to neuronal RTN4R or RTN4RL2 and to a lesser degree via binding to neuronal gangliosides. In cerebellar granule cells the inhibition is mediated primarily via binding to neuronal gangliosides. In sensory neurons, inhibition of neurite extension depends only partially on RTN4R, RTN4RL2 and gangliosides. Inhibits axon longitudinal growth (By similarity). Inhibits axon outgrowth by binding to RTN4R (By similarity). Preferentially binds to alpha-2,3-linked sialic acid. Binds ganglioside Gt1b (By similarity).

Background References

1. Latov N et al. Anti-MAG neuropathy: historical aspects, clinical-pathological correlations, and considerations for future therapeutical trials. Arq Neuropsiquiatr. 2024 Jun

2. Steck AJ. Anti-MAG neuropathy: From biology to clinical management. J Neuroimmunol. 2021 Dec

Subcellular Location

Cell membrane, Membrane raft.

UNIPROT

SwissProt: P20916 Human

SwissProt: P20917 Mouse

SwissProt: P07722 Rat

Synonyms

GMA antibody

MAG antibody

MAG_HUMAN antibody

Myelin associated glycoprotein antibody

Myelin-associated glycoprotein antibody

S MAG antibody

S-MAG antibody

Sialic acid binding Ig like lectin 4A antibody

Sialic acid binding immunoglobulin like lectin 4A antibody

Siglec 4a antibody

Expand

Images

  • Application: IHC-Fr<br /><br />Species: Mouse<br /><br />Site: Cerebellum <br /><br />Sample: Frozen section<br /><br />Antibody concentration: 1/500<br /><br />Antigen retrieval: Not required

    Application: IHC-Fr

    Species: Mouse

    Site: Cerebellum

    Sample: Frozen section

    Antibody concentration: 1/500

    Antigen retrieval: Not required

  • Application: IF-tissue<br /><br />Species: Mouse<br /><br />Site: Cerebellum <br /><br />Sample: Paraffin-embedded section<br /><br />Antibody concentration: 1/500

    Application: IF-tissue

    Species: Mouse

    Site: Cerebellum

    Sample: Paraffin-embedded section

    Antibody concentration: 1/500

  • Immunohistochemical analysis of paraffin-embedded mouse cerebellum tissue with Rat anti-MAG antibody (<a href="/products/HA610254" style="font-weight: bold;text-decoration: underline;">HA610254</a>) at 1/500 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA610254" style="font-weight: bold;text-decoration: underline;">HA610254</a>) at 1/500dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse cerebellum tissue with Rat anti-MAG antibody (HA610254) at 1/500 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA610254) at 1/500dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded human cerebellum tissue with Rat anti-MAG antibody (<a href="/products/HA610254" style="font-weight: bold;text-decoration: underline;">HA610254</a>) at 1/500 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA610254" style="font-weight: bold;text-decoration: underline;">HA610254</a>) at 1/500dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human cerebellum tissue with Rat anti-MAG antibody (HA610254) at 1/500 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA610254) at 1/500dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat cerebellum tissue with Rat anti-MAG antibody (<a href="/products/HA610254" style="font-weight: bold;text-decoration: underline;">HA610254</a>) at 1/500 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA610254" style="font-weight: bold;text-decoration: underline;">HA610254</a>) at 1/500dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat cerebellum tissue with Rat anti-MAG antibody (HA610254) at 1/500 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA610254) at 1/500dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

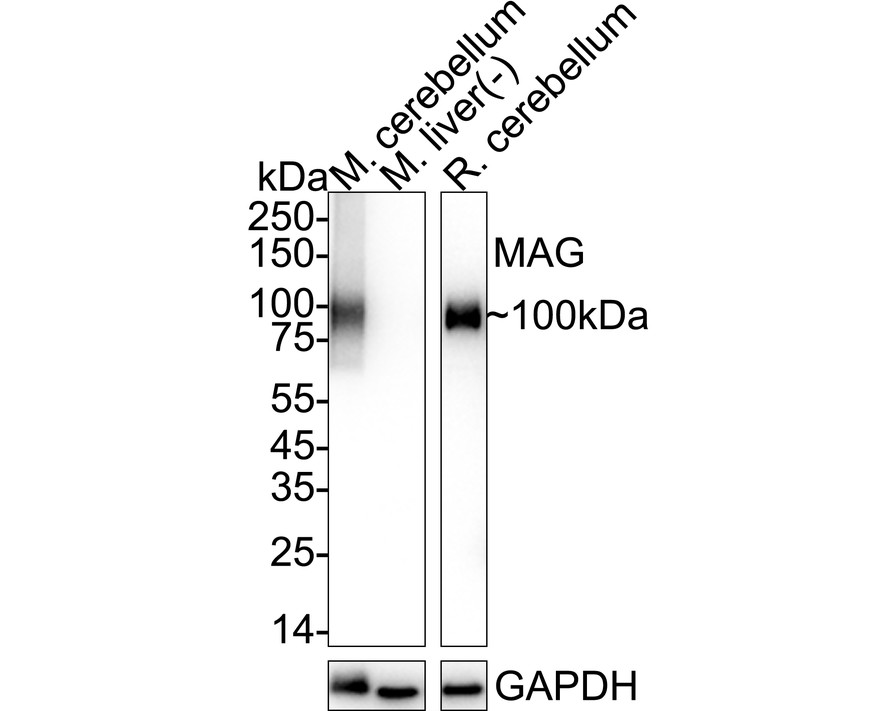

  • <span style="font-weight: bold;">☑ Relative expression (RE)</span><br /><br />Western blot analysis of MAG on different lysates with Rat anti-MAG antibody (<a href="/products/HA610254" style="font-weight: bold;text-decoration: underline;">HA610254</a>) at 1/2,000 dilution.<br /><br />Lane 1: Mouse cerebellum tissue lysate<br />Lane 2: Mouse liver tissue lysate (negative)<br />Lane 3: Rat cerebellum tissue lysate<br /><br />Lysates/proteins at 20 µg/Lane.<br /><br />Predicted band size: 69 kDa<br />Observed band size: 100 kDa<br /><br />Exposure time: Lane 1-2: 13 seconds; Lane 3: 21 seconds; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA610254" style="font-weight: bold;text-decoration: underline;">HA610254</a>) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rat IgG H&L - HRP Secondary Antibody (<a href="/products/HA1023" style="font-weight: bold;text-decoration: underline;">HA1023</a>) at 1/5,000 dilution was used for 1 hour at room temperature.

    ☑ Relative expression (RE)

    Western blot analysis of MAG on different lysates with Rat anti-MAG antibody (HA610254) at 1/2,000 dilution.

    Lane 1: Mouse cerebellum tissue lysate
    Lane 2: Mouse liver tissue lysate (negative)
    Lane 3: Rat cerebellum tissue lysate

    Lysates/proteins at 20 µg/Lane.

    Predicted band size: 69 kDa
    Observed band size: 100 kDa

    Exposure time: Lane 1-2: 13 seconds; Lane 3: 21 seconds; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA610254) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rat IgG H&L - HRP Secondary Antibody (HA1023) at 1/5,000 dilution was used for 1 hour at room temperature.

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
