PDGFR beta Recombinant Antibody [SY10-08] - Rat IgG1 (Chimeric) - BSA and Azide free

Usd: 649

Specification

Bulk Order Quote | Customization Request

Catalog# HA610391

PDGFR beta Recombinant Antibody [SY10-08] - Rat IgG1 (Chimeric) - BSA and Azide free

Application

  • WB

  • IHC-Fr

  • IHC-P

Reactivity

  • Human

  • Mouse

  • Rat

With BSA and Azide
Conjugation

  • unconjugated

Overview

Product Name

PDGFR beta Recombinant Antibody [SY10-08] - Rat IgG1 (Chimeric) - BSA and Azide free

Antibody Type

Recombinant Chimeric Antibody

Immunogen

Recombinant protein within Human PDGFR beta aa 961-1,106 / 1,106.

Species Reactivity

Human, Mouse, Rat

Validated Applications

WB, IHC-Fr, IHC-P

Target Molecular Weight

Predicted band size: 124 kDa

Positive Control

SH-SY5Y cell lysate, C2C12 cell lysate, Mouse brain tissue lysate, Rat brain tissue lysate, human spleen tissue, mouse spleen tissue, rat spleen tissue.

Conjugation

unconjugated

Clone Number

SY10-08

Product Features

Form

Liquid

Concentration

1mg/ml

Storage Instructions

Store at 2-8℃. Avoid freeze.

Storage Buffer

1*PBS (pH7.4).

Purification Method

Protein A affinity purified.

Application Dilution

Target

Function

Platelet-derived growth factor (PDGF) is a mitogen for mesenchyme- and glia-derived cells. PDGF consists of two chains, A and B, which dimerize to form functionally distinct isoforms, PGDF-AA, PDGF-AB and PDGF-BB. These three isoforms bind with different affinities to two receptor types, PDGFR-α and –β, which are endowed with protein tyrosine kinase domains. PDGFR-α can bind to both A and B subunits of PDGF, while PDGFR-β can only bind the B subunit. Ligand binding promotes either homo- or heterodimerization of the PDGF receptors in a specific manner. PDGF-AA induces the dimerization of two α receptors, PDGF-AB induces dimerization of αα and αβ and PDGF-BB induces the formation of three types of dimers, αα, αβ and ββ. Translocation of the PDGFR-∫ gene with the Tel gene is linked to chronic myelomonocytic leukemia (CMML), a myelodysplastic syndrome, and demonstrates the oncogenic potential of the PDGF receptors.

Background References

1. Cui Z et al. Endothelial PDGF-BB/PDGFR-beta signaling promotes osteoarthritis by enhancing angiogenesis-dependent abnormal subchondral bone formation. Bone Res. 2022 Aug

2. Hu G et al. PDGFR-beta(+) fibroblasts deteriorate survival in human solid tumors: a meta-analysis. Aging (Albany NY). 2021 May

Subcellular Location

Cell membrane, Cytoplasmic vesicle, Lysosome lumen.

UNIPROT

SwissProt: P09619 Human

SwissProt: P05622 Mouse

SwissProt: Q05030 Rat

Synonyms

Beta platelet derived growth factor receptor antibody

Beta-type platelet-derived growth factor receptor antibody

CD 140B antibody

CD140 antigen-like family member B antibody

CD140b antibody

CD140b antigen antibody

IBGC4 antibody

IMF1 antibody

JTK12 antibody

OTTHUMP00000160528 antibody

Expand

Images

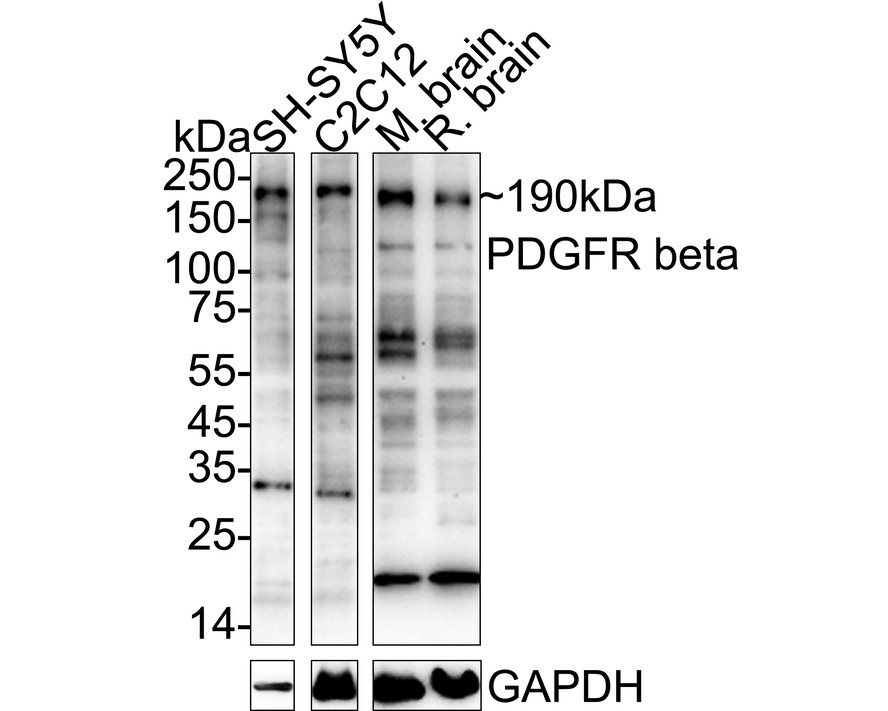

  • This data was developed using <a href="/products/HA601577" style="font-weight: bold;text-decoration: underline;">HA601577</a>, the same antibody clone in a different buffer formulation.<br />Western blot analysis of PDGFR beta on different lysates with Rat anti-PDGFR beta antibody (<a href="/products/HA601577" style="font-weight: bold;text-decoration: underline;">HA601577</a>) at 1/10,000 dilution.<br /><br />Lane 1: SH-SY5Y cell lysate (10 µg/Lane)<br />Lane 2: C2C12 cell lysate (10 µg/Lane)<br />Lane 3: Mouse brain tissue lysate (20 µg/Lane)<br />Lane 4: Rat brain tissue lysate (20 µg/Lane)<br /><br />Predicted band size: 124 kDa<br />Observed band size: 190 kDa<br /><br />Exposure time: 1 minute 34 seconds; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA601577" style="font-weight: bold;text-decoration: underline;">HA601577</a>) at 1/10,000 dilution was used in primary antibody dilution (<a href="/products/K1803" style="font-weight: bold;text-decoration: underline;">K1803</a>) at 4℃ overnight. Goat Anti-Rat IgG H&L - HRP Secondary Antibody (<a href="/products/HA1023" style="font-weight: bold;text-decoration: underline;">HA1023</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

    This data was developed using HA601577, the same antibody clone in a different buffer formulation.
    Western blot analysis of PDGFR beta on different lysates with Rat anti-PDGFR beta antibody (HA601577) at 1/10,000 dilution.

    Lane 1: SH-SY5Y cell lysate (10 µg/Lane)
    Lane 2: C2C12 cell lysate (10 µg/Lane)
    Lane 3: Mouse brain tissue lysate (20 µg/Lane)
    Lane 4: Rat brain tissue lysate (20 µg/Lane)

    Predicted band size: 124 kDa
    Observed band size: 190 kDa

    Exposure time: 1 minute 34 seconds; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA601577) at 1/10,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rat IgG H&L - HRP Secondary Antibody (HA1023) at 1/50,000 dilution was used for 1 hour at room temperature.

  • This data was developed using <a href="/products/HA601577" style="font-weight: bold;text-decoration: underline;">HA601577</a>, the same antibody clone in a different buffer formulation.<br />Application: IHC-Fr<br /><br />Species: Mouse<br /><br />Site: brain<br /><br />Sample: Frozen section<br /><br />Antibody concentration: 1/200<br /><br />Antigen retrieval: Not required

    This data was developed using HA601577, the same antibody clone in a different buffer formulation.
    Application: IHC-Fr

    Species: Mouse

    Site: brain

    Sample: Frozen section

    Antibody concentration: 1/200

    Antigen retrieval: Not required

  • This data was developed using <a href="/products/HA601577" style="font-weight: bold;text-decoration: underline;">HA601577</a>, the same antibody clone in a different buffer formulation.<br />Application: IHC-Fr<br /><br />Species: Mouse<br /><br />Site: brain<br /><br />Sample: Frozen section<br /><br />Antibody concentration: 1/200<br /><br />Antigen retrieval: Not required

    This data was developed using HA601577, the same antibody clone in a different buffer formulation.
    Application: IHC-Fr

    Species: Mouse

    Site: brain

    Sample: Frozen section

    Antibody concentration: 1/200

    Antigen retrieval: Not required

  • This data was developed using <a href="/products/HA601577" style="font-weight: bold;text-decoration: underline;">HA601577</a>, the same antibody clone in a different buffer formulation.<br />Application: IHC-Fr<br /><br />Species: Mouse<br /><br />Site: spleen<br /><br />Sample: Frozen section<br /><br />Antibody concentration: 1/200<br /><br />Antigen retrieval: Not required

    This data was developed using HA601577, the same antibody clone in a different buffer formulation.
    Application: IHC-Fr

    Species: Mouse

    Site: spleen

    Sample: Frozen section

    Antibody concentration: 1/200

    Antigen retrieval: Not required

  • This data was developed using <a href="/products/HA601577" style="font-weight: bold;text-decoration: underline;">HA601577</a>, the same antibody clone in a different buffer formulation.<br />Immunohistochemical analysis of paraffin-embedded human spleen tissue with Rat anti-PDGFR beta antibody (<a href="/products/HA601577" style="font-weight: bold;text-decoration: underline;">HA601577</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA601577" style="font-weight: bold;text-decoration: underline;">HA601577</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    This data was developed using HA601577, the same antibody clone in a different buffer formulation.
    Immunohistochemical analysis of paraffin-embedded human spleen tissue with Rat anti-PDGFR beta antibody (HA601577) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA601577) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • This data was developed using <a href="/products/HA601577" style="font-weight: bold;text-decoration: underline;">HA601577</a>, the same antibody clone in a different buffer formulation.<br />Immunohistochemical analysis of paraffin-embedded mouse spleen tissue with Rat anti-PDGFR beta antibody (<a href="/products/HA601577" style="font-weight: bold;text-decoration: underline;">HA601577</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA601577" style="font-weight: bold;text-decoration: underline;">HA601577</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    This data was developed using HA601577, the same antibody clone in a different buffer formulation.
    Immunohistochemical analysis of paraffin-embedded mouse spleen tissue with Rat anti-PDGFR beta antibody (HA601577) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA601577) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • This data was developed using <a href="/products/HA601577" style="font-weight: bold;text-decoration: underline;">HA601577</a>, the same antibody clone in a different buffer formulation.<br />Immunohistochemical analysis of paraffin-embedded rat spleen tissue with Rat anti-PDGFR beta antibody (<a href="/products/HA601577" style="font-weight: bold;text-decoration: underline;">HA601577</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA601577" style="font-weight: bold;text-decoration: underline;">HA601577</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    This data was developed using HA601577, the same antibody clone in a different buffer formulation.
    Immunohistochemical analysis of paraffin-embedded rat spleen tissue with Rat anti-PDGFR beta antibody (HA601577) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA601577) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
