ORP1 Recombinant Rabbit Monoclonal Antibody [JE60-99]

Usd: 385

Specification

Bulk Order Quote | Customization Request

Catalog# HA720053

ORP1 Recombinant Rabbit Monoclonal Antibody [JE60-99]

Application

  • WB

  • IHC-P

Reactivity

  • Human

  • Mouse

  • Rat

Conjugation

  • unconjugated

Overview

Product Name

ORP1 Recombinant Rabbit Monoclonal Antibody [JE60-99]

Antibody Type

Recombinant Rabbit monoclonal Antibody

Immunogen

Synthetic peptide within human ORP1 aa 900-950/950.

Species Reactivity

Human, Mouse, Rat

Validated Applications

WB, IHC-P

Target Molecular Weight

Predicted band size: 108 kDa

Positive Control

Mouse heart tissue lysate, Rat brain tissue lysate, A549 cell lysate, PC-3 cell lysate, human testis tissue, mouse testis tissue.

Conjugation

unconjugated

Clone Number

JE60-99

RRID

AB_3071993

Product Features

Form

Liquid

Concentration

1 mg/mL.(The concentration of this product may be batch-dependent)

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). Store at -20℃ long term.

Storage Buffer

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG

Purification Method

Protein A affinity purified.

Application Dilution

  • WB

  • 1:1,000

  • IHC-P

  • 1:1,000

Target

Function

This gene encodes a member of the oxysterol-binding protein (OSBP) family, a group of intracellular lipid receptors. Most members contain an N-terminal pleckstrin homology domain and a highly conserved C-terminal OSBP-like sterol-binding domain, although some members contain only the sterol-binding domain. Transcript variants derived from alternative promoter usage and/or alternative splicing exist; they encode different isoforms.

Background References

1. Tong J. et. al. Structural basis of human ORP1-Rab7 interaction for the late-endosome and lysosome targeting. PLoS One. 2019 Feb

2. Dong J. et. al. Allosteric enhancement of ORP1-mediated cholesterol transport by PI(4,5)P(2)/PI(3,4)P(2). Nat Commun. 2019 Feb

Subcellular Location

Late endosome.

UNIPROT

SwissProt: Q9BXW6 Human

SwissProt: Q91XL9 Mouse

SwissProt: Q8K4M9 Rat

Synonyms

FLJ10217 antibody

ORP 1 antibody

ORP-1 antibody

ORP1 antibody

OSBL1_HUMAN antibody

OSBP 8 antibody

OSBP L1 antibody

OSBP related protein 1 antibody

OSBP-related protein 1 antibody

OSBP8 antibody

Expand

Images

  • <span style="font-weight: bold;">☑ Knockdown (KD)</span><br /><br />Western blot analysis of ORP1 on different lysates with Rabbit anti-ORP1 antibody (<a href="/products/HA720053" style="font-weight: bold;text-decoration: underline;">HA720053</a>) at 1/1,000 dilution.<br /><br />Lane 1: HAP1-parental cell lysate<br />Lane 2: HAP1-ORP1 KD cell lysate<br /><br />Lysates/proteins at 10 µg/Lane.<br /><br />Predicted band size: 108 kDa<br />Observed band size: 108,50 kDa<br /><br />Exposure time: 21 seconds; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA720053" style="font-weight: bold;text-decoration: underline;">HA720053</a>) at 1/1,000 dilution was used in <a href="/products/K1803" style="font-weight: bold;text-decoration: underline;">K1803</a> at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

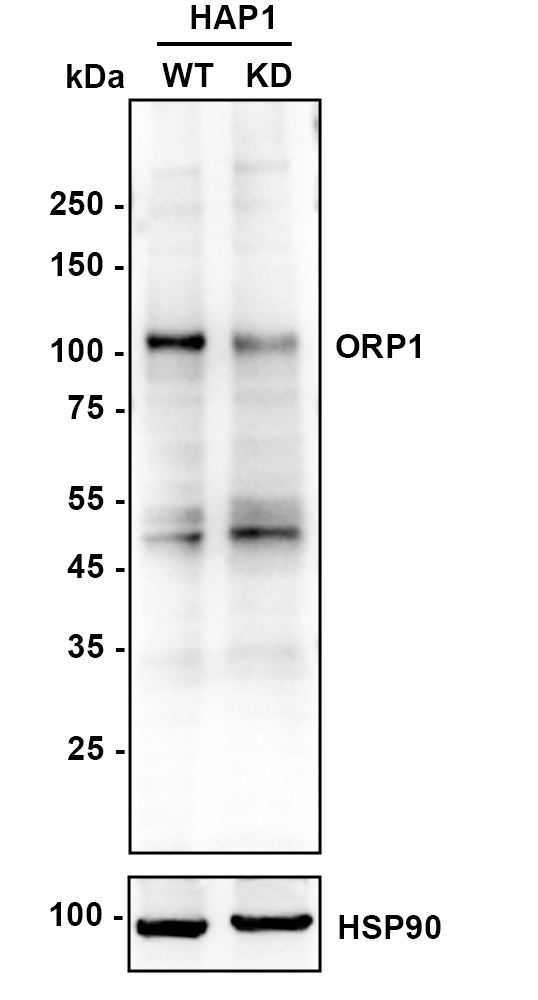

    ☑ Knockdown (KD)

    Western blot analysis of ORP1 on different lysates with Rabbit anti-ORP1 antibody (HA720053) at 1/1,000 dilution.

    Lane 1: HAP1-parental cell lysate
    Lane 2: HAP1-ORP1 KD cell lysate

    Lysates/proteins at 10 µg/Lane.

    Predicted band size: 108 kDa
    Observed band size: 108,50 kDa

    Exposure time: 21 seconds; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA720053) at 1/1,000 dilution was used in K1803 at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

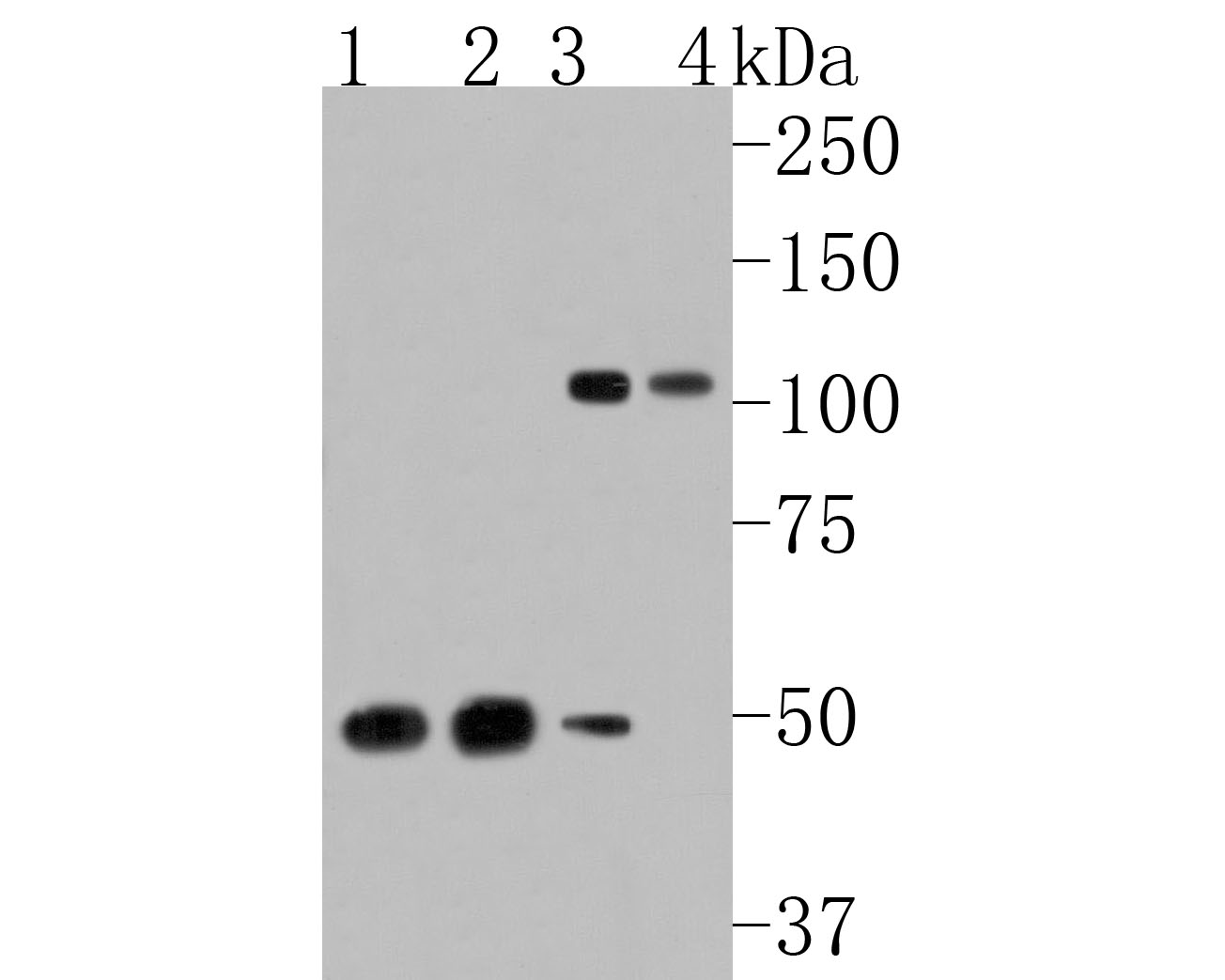

  • Western blot analysis of ORP1 on different lysates. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA720053" style="font-weight: bold;text-decoration: underline;">HA720053</a>, 1/500) was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1:200,000 dilution was used for 1 hour at room temperature.<br /><span style="font-weight: bold;">Positive control:</span> <br />Lane 1: Mouse heart tissue lysate<br />Lane 2: Rat brain tissue lysate<br />Lane 3: A549 cell lysate<br />Lane 4: PC-3 cell lysate

    Western blot analysis of ORP1 on different lysates. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA720053, 1/500) was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:200,000 dilution was used for 1 hour at room temperature.
    Positive control:
    Lane 1: Mouse heart tissue lysate
    Lane 2: Rat brain tissue lysate
    Lane 3: A549 cell lysate
    Lane 4: PC-3 cell lysate

  • Immunohistochemical analysis of paraffin-embedded human testis tissue with Rabbit anti-ORP1 antibody (<a href="/products/HA720053" style="font-weight: bold;text-decoration: underline;">HA720053</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA720053" style="font-weight: bold;text-decoration: underline;">HA720053</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human testis tissue with Rabbit anti-ORP1 antibody (HA720053) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA720053) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse testis tissue with Rabbit anti-ORP1 antibody (<a href="/products/HA720053" style="font-weight: bold;text-decoration: underline;">HA720053</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA720053" style="font-weight: bold;text-decoration: underline;">HA720053</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse testis tissue with Rabbit anti-ORP1 antibody (HA720053) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA720053) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
