SIRP alpha Recombinant Rabbit Monoclonal Antibody [JE36-20]
Catalog# HA721316
SIRP alpha Recombinant Rabbit Monoclonal Antibody [JE36-20]
-
WB
-
IHC-P
-
FC
-
Human
-
Mouse
-
Rat
-
unconjugated
Overview
Product Name
SIRP alpha Recombinant Rabbit Monoclonal Antibody [JE36-20]
Antibody Type
Recombinant Rabbit monoclonal Antibody
Immunogen
Recombinant protein within Human SIRP alpha aa 395-504 (Cytoplasmic).
Species Reactivity
Human, Mouse, Rat
Validated Applications
WB, IHC-P, FC
Target Molecular Weight
Predicted band size: 55 kDa
Positive Control
THP-1 cell lysate, HL-60 cell lysate, mouse brain tissue lysate, human lymph node tissue, human spleen tissue.
Conjugation
unconjugated
Clone Number
JE36-20
RRID
Reactivity Data
Verified (internally validated)
Reported in literature (not internally validated)
Predicted reactive (based on sequence homology)
Not recommended (failed internal validation)
| WB | IHC-P | FC | IF-Cell | |
|---|---|---|---|---|
| human |
|
|
|
|
| mouse |
|
|
|
|
| rat |
|
|
|
|
Product Features
Form
Liquid
Concentration
1 mg/ml(The concentration of this product may be batch-dependent)
Storage Instructions
Shipped at 4℃. Store at +4℃ short term (1-2 weeks). Store at -20℃ long term.
Storage Buffer
1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.
Isotype
IgG
Purification Method
Protein A affinity purified.
Application Dilution
-
WB
-
1:1,000
-
IHC-P
-
1:1,000
-
FC
-
1:1,000
Target
Function
Immunoglobulin-like cell surface receptor for CD47. Acts as docking protein and induces translocation of PTPN6, PTPN11 and other binding partners from the cytosol to the plasma membrane. Supports adhesion of cerebellar neurons, neurite outgrowth and glial cell attachment. May play a key role in intracellular signaling during synaptogenesis and in synaptic function. Involved in the negative regulation of receptor tyrosine kinase-coupled cellular responses induced by cell adhesion, growth factors or insulin. Mediates negative regulation of phagocytosis, mast cell activation and dendritic cell activation. CD47 binding prevents maturation of immature dendritic cells and inhibits cytokine production by mature dendritic cells. Ubiquitous. Highly expressed in brain. Detected on myeloid cells, but not T-cells. Detected at lower levels in heart, placenta, lung, testis, ovary, colon, liver, small intestine, prostate, spleen, kidney, skeletal muscle and pancreas. Binds PTPN11 when tyrosine-phosphorylated, except in macrophages, where it primarily binds PTPN6. Binds GRB2 in vitro. Binds FGR. Binds JAK2 irrespective of its phosphorylation status and forms a stable complex. Binds SCAP1 and/or SCAP2. The resulting complex recruits FYB1. Binds PTK2B.
Background References
1. Timms J.F., Swanson K.D., Marie-Cardine A., Raab M., Rudd C.E., Schraven B., Neel B.G. SHPS-1 is a scaffold for assembling distinct adhesion-regulated multi- protein complexes in macrophages. Curr. Biol. 9:927-930 (1999).
2. Latour S., Tanaka H., Demeure C., Mateo V., Rubio M., Brown E.J., Maliszewski C., Lindberg F.P., Oldenborg A., Sarfati M. Bidirectional negative regulation of human T and dendritic cells by CD47 and its cognate receptor signal-regulator protein-alpha: down-regulation of IL-12 responsiveness and inhibition of dendritic cell activation. J. Immunol. 167:2547-2554 (2001)
Subcellular Location
Membrane
Synonyms
Signal regulatory protein alpha type 1 antibody
Bit antibody
Brain Ig like molecule with tyrosine based activation motifs antibody
Brain Ig-like molecule with tyrosine-based activation motifs antibody
Brain immunoglobulin like molecule with tyrosine based activation motifs antibody
CD172 antigen like family member A antibody
CD172 antigen-like family member A antibody
CD172a antibody
CD172a antigen antibody
Inhibitory receptor SHPS-1 antibody
ExpandImages
-
☑ Knockdown (KD)
Western blot analysis of SIRP alpha on different lysates with Rabbit anti-SIRP alpha antibody (HA721316) at 1/1,000 dilution.
Lane 1: HAP1-parental cell lysate
Lane 2: HAP1-SIRP alpha KD cell lysate
Lysates/proteins at 10 µg/Lane.
Predicted band size: 55 kDa
Observed band size: 75-100 kDa
Exposure time: 9 seconds; ECL: K1801;
4-20% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721316) at 1/1,000 dilution was used in K1803 at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. -
Immunohistochemical analysis of paraffin-embedded human lymph node tissue with Rabbit anti-SIRP alpha antibody (HA721316) at 1/1,000 dilution.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721316) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -
Immunohistochemical analysis of paraffin-embedded human spleen tissue with Rabbit anti-SIRP alpha antibody (HA721316) at 1/1,000 dilution.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721316) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -

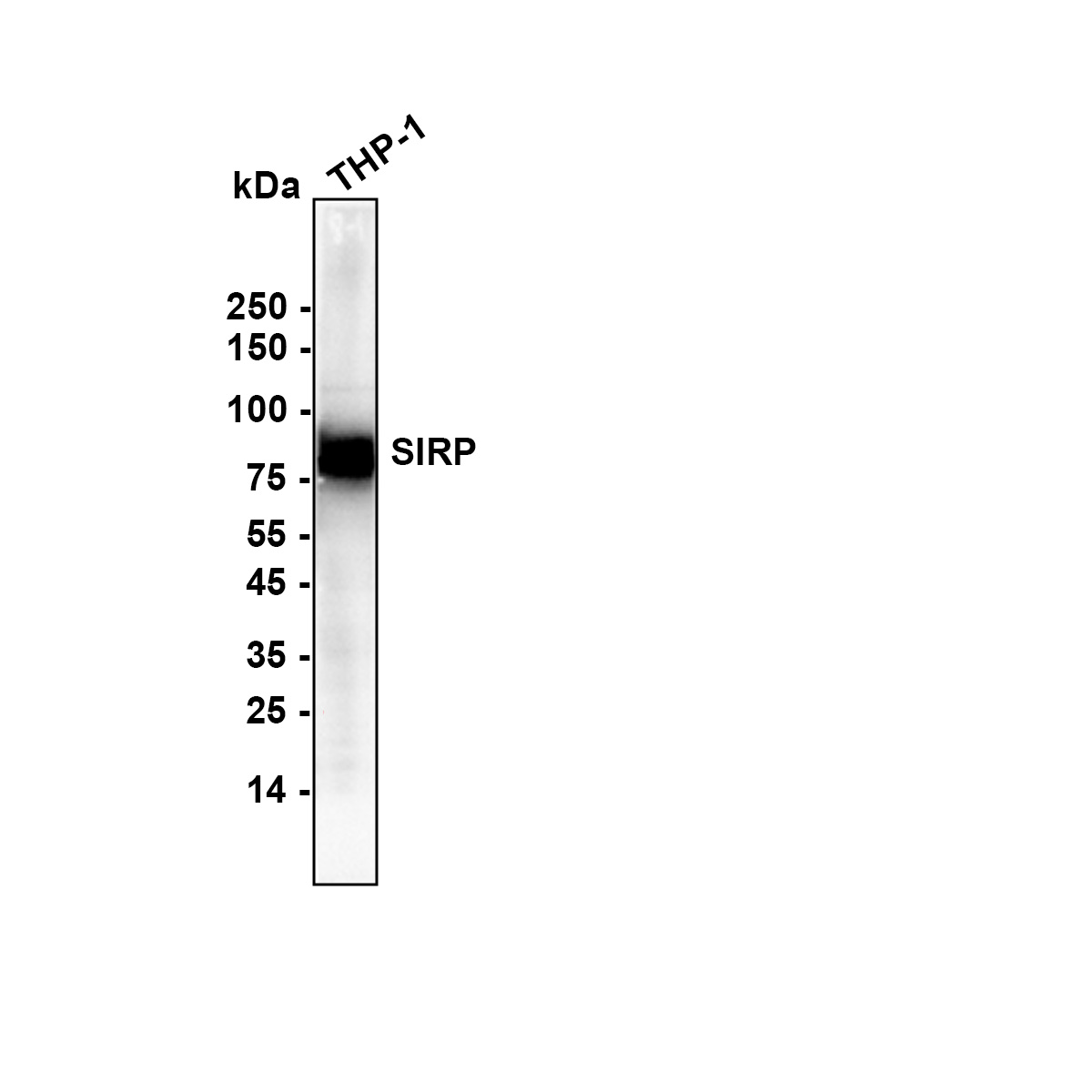

Western blot analysis of SIRP alpha on THP-1 lysates with Rabbit anti-SIRP alpha antibody (HA721316) at 1/1,000 dilution.
Lysates/proteins at 15 µg/Lane.
Exposure time: 16 seconds; ECL: K1801
Blocking: 5% NFDM/TBST, 1 hour at room temperature
Primary antibody: HA721316, 1/1,000 in primary antibody dilution buffer (K1803), overnight at 4 ℃
Secondary antibody: Goat anti-Rabbit IgG-HRP (HA1001), 1/50,000 in 5% NFDM/TBST, 1 hour at room temperature
Predicted band size: 55 kDa
Observed band size: 75-100 kDa -

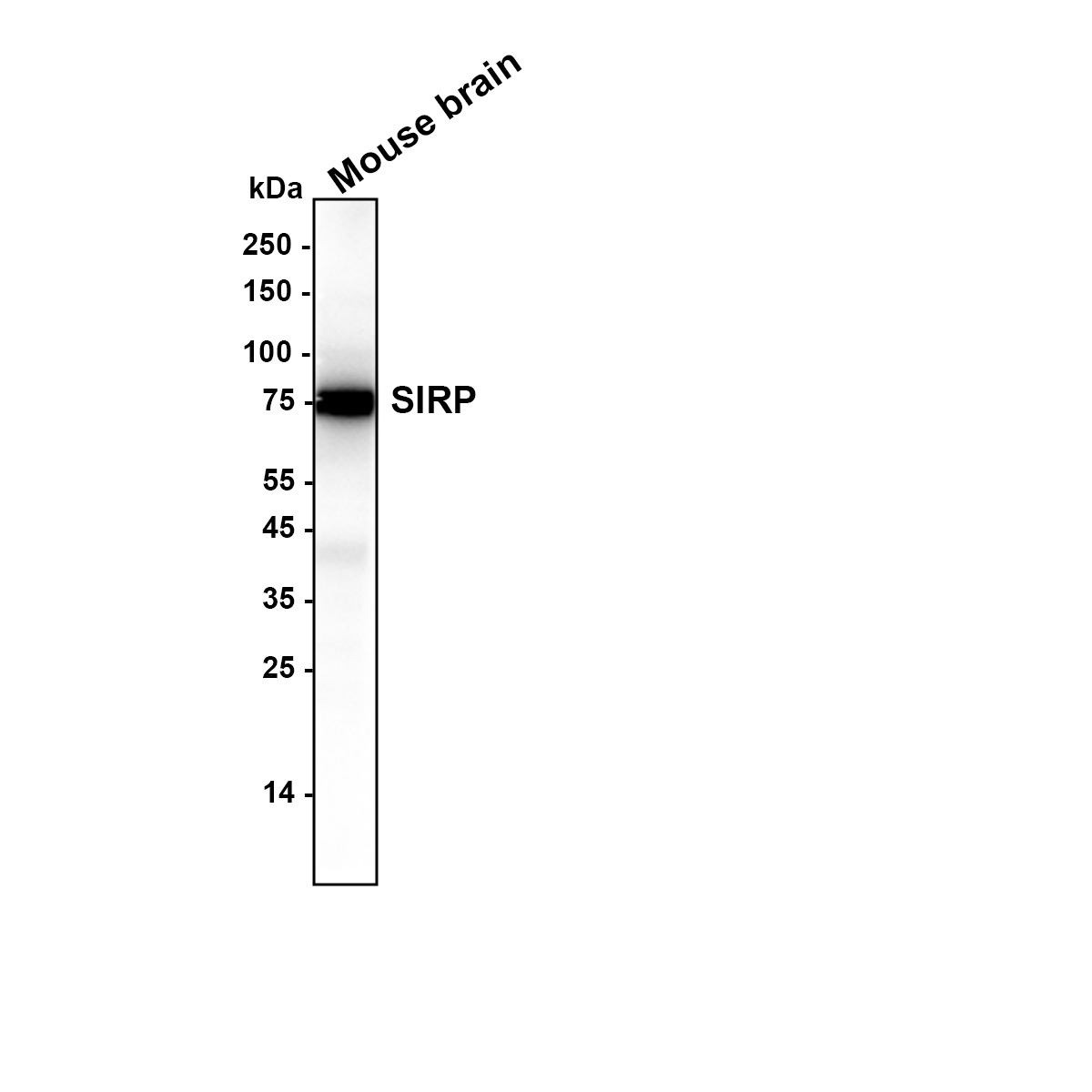

Western blot analysis of SIRP alpha on Mouse brain lysates with Rabbit anti-SIRP alpha antibody (HA721316) at 1/5,000 dilution.
Lysates/proteins at 15 µg/Lane.
Exposure time: 29 seconds; ECL: K1801
Blocking: 5% NFDM/TBST, 1 hour at room temperature
Primary antibody: HA721316, 1/5,000 in primary antibody dilution buffer (K1803), overnight at 4 ℃
Secondary antibody: Goat anti-Rabbit IgG-HRP (HA1001), 1/50,000 in 5% NFDM/TBST, 1 hour at room temperature
Predicted band size: 55 kDa
Observed band size: 75-100 kDa -
Western blot analysis of SIRP alpha on THP-1 lysates with Rabbit anti-SIRP alpha antibody (HA721316) at 1/5,000 dilution.
Lysates/proteins at 15 µg/Lane.
Exposure time: 29 seconds; ECL: K1801
Blocking: 5% NFDM/TBST, 1 hour at room temperature
Primary antibody: HA721316, 1/5,000 in primary antibody dilution buffer (K1803), overnight at 4 ℃
Secondary antibody: Goat anti-Rabbit IgG-HRP (HA1001), 1/50,000 in 5% NFDM/TBST, 1 hour at room temperature
Predicted band size: 55 kDa
Observed band size: 75-100 kDa -

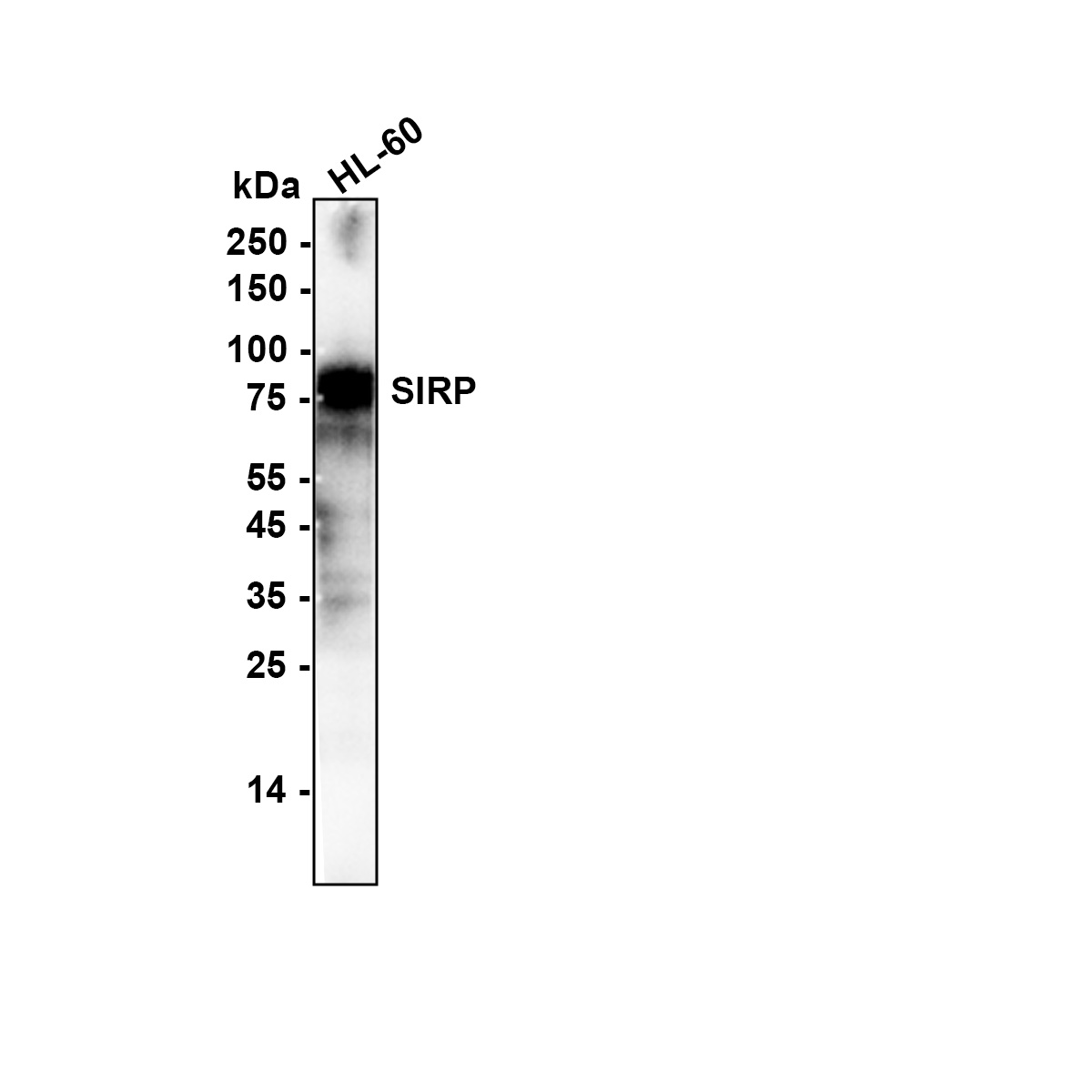

Western blot analysis of SIRP alpha on HL-60 lysates with Rabbit anti-SIRP alpha antibody (HA721316) at 1/5,000 dilution.
Lysates/proteins at 15 µg/Lane.
Exposure time: 29 seconds; ECL: K1801
Blocking: 5% NFDM/TBST, 1 hour at room temperature
Primary antibody: HA721316, 1/5,000 in primary antibody dilution buffer (K1803), overnight at 4 ℃
Secondary antibody: Goat anti-Rabbit IgG-HRP (HA1001), 1/50,000 in 5% NFDM/TBST, 1 hour at room temperature
Predicted band size: 55 kDa
Observed band size: 75-100 kDa
Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
