Aquaporin 4 Recombinant Rabbit Monoclonal Antibody [JE59-76]

Usd: 385

Specification

Bulk Order Quote | Customization Request

Catalog# HA721954

Aquaporin 4 Recombinant Rabbit Monoclonal Antibody [JE59-76]

Application

  • WB

  • IHC-P

  • IF-Tissue

Reactivity

  • Human

  • Mouse

  • Rat

Conjugation

  • unconjugated

This product has been cited in peer reviewed publications, see list HERE

Overview

Product Name

Aquaporin 4 Recombinant Rabbit Monoclonal Antibody [JE59-76]

Antibody Type

Recombinant Rabbit monoclonal Antibody

Immunogen

Synthetic peptide within Human Aquaporin 4 aa 274-323 / 323.

Species Reactivity

Human, Mouse, Rat

Validated Applications

WB, IHC-P, IF-Tissue

Molecular Weight

Predicted band size: 35 kDa

Positive Control

Mouse brain tissue lysate, rat brain tissue lysate, human kidney tissue, human skeletal muscle tissue, mouse brain tissue, mouse hippocampus tissue, rat brain tissue, rat hippocampus tissue.

Conjugation

unconjugated

Clone Number

JE59-76

RRID

AB_3096742

Product Features

Form

Liquid

Concentration

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). Store at -20℃ long term.

Storage Buffer

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG

Purification Method

Protein A affinity purified.

Application Dilution

  • WB

  • 1:2,000

  • IHC-P

  • 1:2,000-1:10,000

  • IF-Tissue

  • 1:200

Target

Function

This gene encodes a member of the aquaporin family of intrinsic membrane proteins that function as water-selective channels in the plasma membranes of many cells. This protein is the predominant aquaporin found in brain and has an important role in brain water homeostasis. Alternatively spliced transcript variants encoding different isoforms have been described for this gene. Additional isoforms, resulting from the use of alternative in-frame translation initiation codons, have also been described. Recent studies provided evidence for translational readthrough in this gene, and expression of C-terminally extended isoforms via the use of an alternative in-frame translation termination codon.

Background References

1. Kitchen P et al. Targeting Aquaporin-4 Subcellular Localization to Treat Central Nervous System Edema. Cell. 2020 May

2. Pittock SJ et al. Ravulizumab in Aquaporin-4-Positive Neuromyelitis Optica Spectrum Disorder. Ann Neurol. 2023 Jun

Subcellular Location

Cell membrane, Basolateral cell membrane, Endosome membrane, Cell membrane, sarcolemma, Cell projection.

UNIPROT

SwissProt: P55087 Human

SwissProt: P55088 Mouse

SwissProt: P47863 Rat

Synonyms

AQP 4 antibody

AQP-4 antibody

AQP4 antibody

AQP4_HUMAN antibody

Aquaporin type 4 antibody

Aquaporin-4 antibody

Aquaporin4 antibody

HMIWC 2 antibody

HMIWC2 antibody

Mercurial insensitive water channel antibody

Expand

Images

  • <span style="font-weight: bold;">☑ Relative expression (RE)</span><br /><br />Western blot analysis of Aquaporin 4 on different lysates with Rabbit anti-Aquaporin 4 antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/2,000 dilution.<br /><br />Lane 1: Mouse brain tissue lysate (40 µg/Lane)<br />Lane 2: Mouse liver tissue lysate (negative) (40 µg/Lane)<br />Lane 3: Rat brain tissue lysate (40 µg/Lane)<br /><br />Predicted band size: 35 kDa<br />Observed band size: 28/52 kDa<br /><br />Exposure time: Lane 1: 31 seconds; Lane 2-3: 5 seconds;<br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

    ☑ Relative expression (RE)

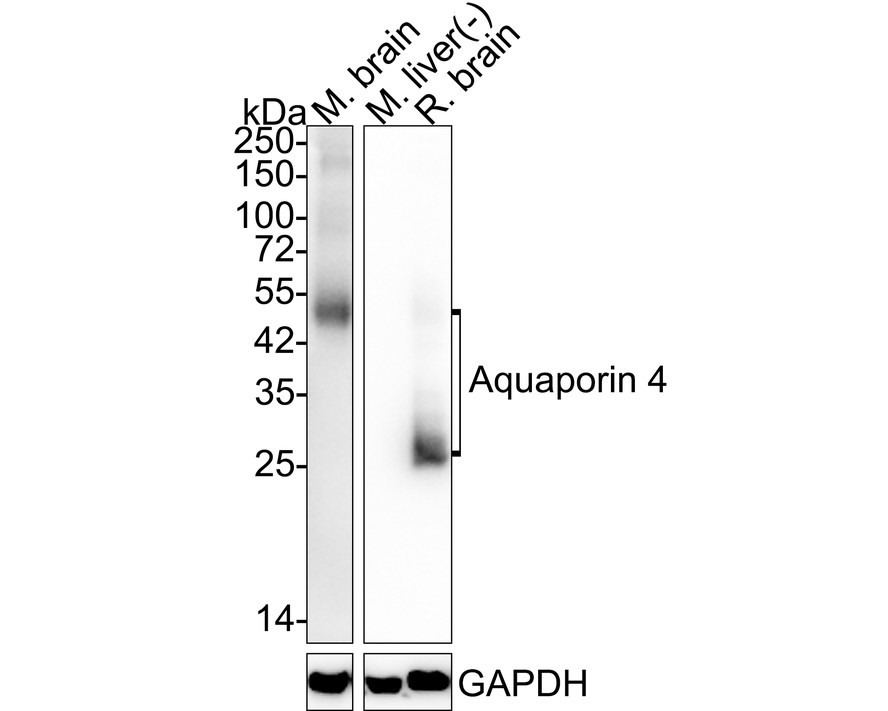

    Western blot analysis of Aquaporin 4 on different lysates with Rabbit anti-Aquaporin 4 antibody (HA721954) at 1/2,000 dilution.

    Lane 1: Mouse brain tissue lysate (40 µg/Lane)
    Lane 2: Mouse liver tissue lysate (negative) (40 µg/Lane)
    Lane 3: Rat brain tissue lysate (40 µg/Lane)

    Predicted band size: 35 kDa
    Observed band size: 28/52 kDa

    Exposure time: Lane 1: 31 seconds; Lane 2-3: 5 seconds;
    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721954) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-Aquaporin 4 antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/2,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-Aquaporin 4 antibody (HA721954) at 1/2,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721954) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded human skeletal muscle tissue with Rabbit anti-Aquaporin 4 antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/2,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human skeletal muscle tissue with Rabbit anti-Aquaporin 4 antibody (HA721954) at 1/2,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721954) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-Aquaporin 4 antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/10,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-Aquaporin 4 antibody (HA721954) at 1/10,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721954) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse hippocampus tissue with Rabbit anti-Aquaporin 4 antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/10,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

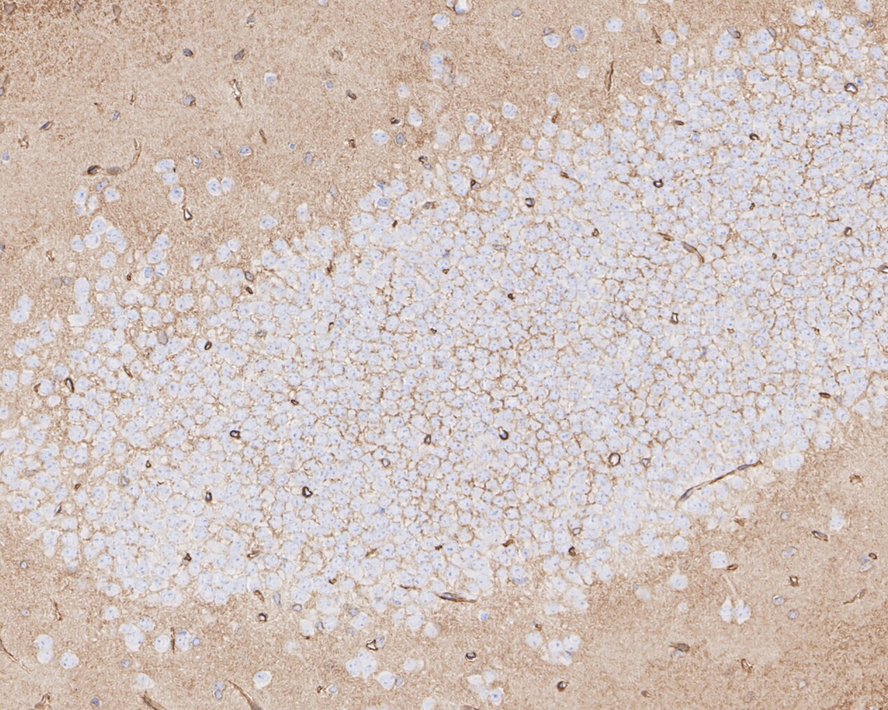

    Immunohistochemical analysis of paraffin-embedded mouse hippocampus tissue with Rabbit anti-Aquaporin 4 antibody (HA721954) at 1/10,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721954) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse retina <br />tissue with Rabbit anti-Aquaporin 4 antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/10,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse retina
    tissue with Rabbit anti-Aquaporin 4 antibody (HA721954) at 1/10,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721954) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-Aquaporin 4 antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/10,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-Aquaporin 4 antibody (HA721954) at 1/10,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721954) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat hippocampus tissue with Rabbit anti-Aquaporin 4 antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/10,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat hippocampus tissue with Rabbit anti-Aquaporin 4 antibody (HA721954) at 1/10,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721954) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • <span style="font-weight: bold;">☑ Relative expression (RE)</span><br /><br />Immunohistochemical analysis of paraffin-embedded human liver tissue (negative) with Rabbit anti-Aquaporin 4 antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/2,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    ☑ Relative expression (RE)

    Immunohistochemical analysis of paraffin-embedded human liver tissue (negative) with Rabbit anti-Aquaporin 4 antibody (HA721954) at 1/2,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721954) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunofluorescence analysis of paraffin-embedded mouse brain tissue labeling Aquaporin 4 with Rabbit anti-Aquaporin 4 antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (<a href="/products/HA721954" style="font-weight: bold;text-decoration: underline;">HA721954</a>, green) at 1/200 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor&trade; 488, <a href="/products/HA1121" style="font-weight: bold;text-decoration: underline;">HA1121</a>) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

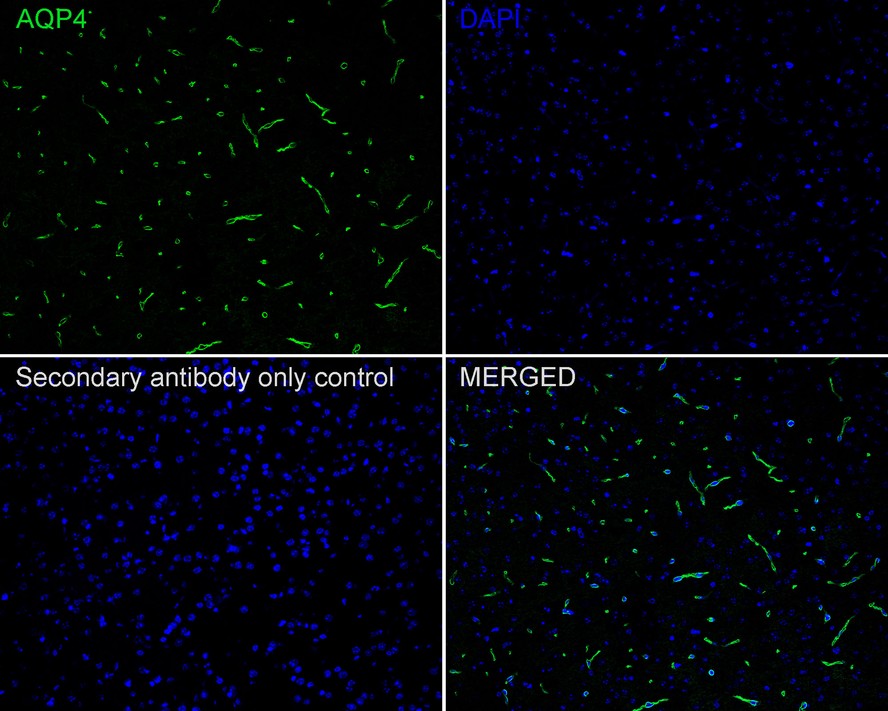

    Immunofluorescence analysis of paraffin-embedded mouse brain tissue labeling Aquaporin 4 with Rabbit anti-Aquaporin 4 antibody (HA721954) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (HA721954, green) at 1/200 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
