SDHC Recombinant Rabbit Monoclonal Antibody [JE77-46]

Usd: 385

Specification

Bulk Order Quote | Customization Request

Catalog# HA722584

SDHC Recombinant Rabbit Monoclonal Antibody [JE77-46]

Application

  • WB

  • IHC-P

Reactivity

  • Human

  • Mouse

  • Rat

Conjugation

  • unconjugated

Overview

Product Name

SDHC Recombinant Rabbit Monoclonal Antibody [JE77-46]

Antibody Type

Recombinant Rabbit monoclonal Antibody

Immunogen

Synthetic peptide within human SDHC aa 30-65 / 169.

Species Reactivity

Human, Mouse, Rat

Validated Applications

WB, IHC-P

Molecular Weight

Predicted band size: 19 kDa

Positive Control

HeLa cell lysate, THP-1 cell lysate, 293T cell lysate, Mouse liver tissue lysate, Mouse kidney tissue lysate, Rat liver tissue lysate, Rat kidney tissue lysate, human kidney tissue, mouse kidney tissue, rat kidney tissue.

Conjugation

unconjugated

Clone Number

JE77-46

Product Features

Form

Liquid

Concentration

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). Store at -20℃ long term.

Storage Buffer

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG

Purification Method

Protein A affinity purified.

Application Dilution

  • WB

  • 1:1,000

  • IHC-P

  • 1:5,000

Target

Function

Succinate dehydrogenase complex subunit C, also known as succinate dehydrogenase cytochrome b560 subunit, mitochondrial, is a protein that in humans is encoded by the SDHC gene. This gene encodes one of four nuclear-encoded subunits that comprise succinate dehydrogenase, also known as mitochondrial complex II, a key enzyme complex of the tricarboxylic acid cycle and aerobic respiratory chains of mitochondria. The encoded protein is one of two integral membrane proteins that anchor other subunits of the complex, which form the catalytic core, to the inner mitochondrial membrane. There are several related pseudogenes for this gene on different chromosomes. Mutations in this gene have been associated with pheochromocytomas and paragangliomas. Alternatively spliced transcript variants have been described.

Background References

1. Daumova M et al. SDHC Methylation Pattern in Patients With Carney Triad. Appl Immunohistochem Mol Morphol. 2021 Sep

2. Williams ST et al. SDHC phaeochromocytoma and paraganglioma: A UK-wide case series. Clin Endocrinol (Oxf). 2022 Apr

Subcellular Location

Mitochondrion inner membrane.

UNIPROT

SwissProt: Q99643 Human

SwissProt: Q9CZB0 Mouse

Entrez Gene: 289217 Rat

Synonyms

CYB560 antibody

C560_HUMAN antibody

CYBL antibody

Cytochrome B large subunit of complex II antibody

Integral membrane protein CII-3 antibody

mitochondrial antibody

PGL3 antibody

QPs-1 antibody

QPs1 antibody

SDH3 antibody

Expand

Images

  • Western blot analysis of SDHC on different lysates with Rabbit anti-SDHC antibody (<a href="/products/HA722584" style="font-weight: bold;text-decoration: underline;">HA722584</a>) at 1/1,000 dilution.<br /><br />Lane 1: HeLa cell lysate<br />Lane 2: THP-1 cell lysate<br />Lane 3: 293T cell lysate<br />Lane 4: Mouse liver tissue lysate<br />Lane 5: Mouse kidney tissue lysate<br />Lane 6: Rat liver tissue lysate<br />Lane 7: Rat kidney tissue lysate<br /><br />Lysates/proteins at 20 µg/Lane.<br /><br />Predicted band size: 19 kDa<br />Observed band size: 15 kDa<br /><br />Exposure time: 20 seconds; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA722584" style="font-weight: bold;text-decoration: underline;">HA722584</a>) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

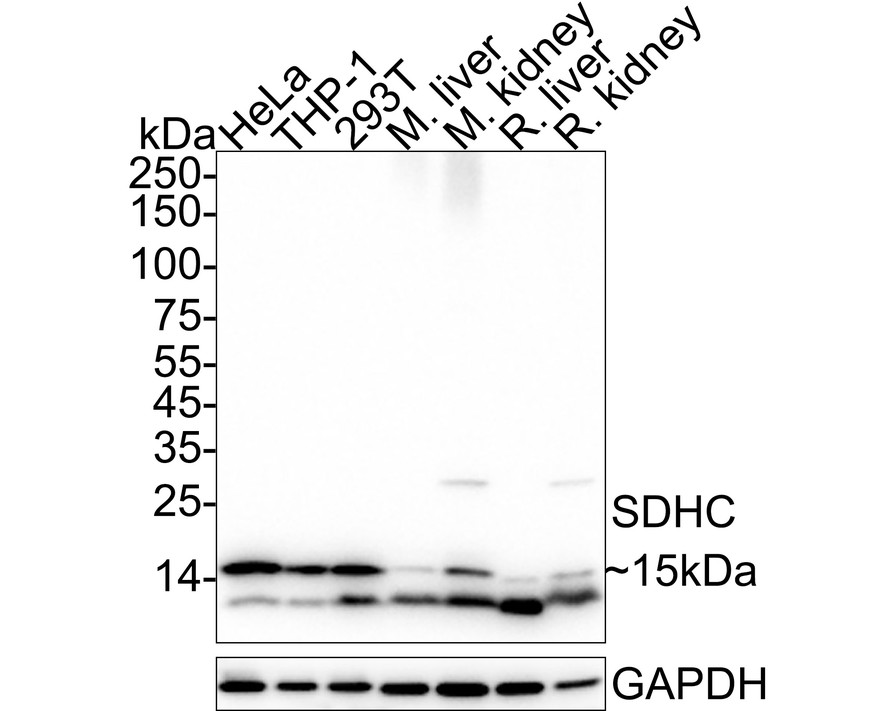

    Western blot analysis of SDHC on different lysates with Rabbit anti-SDHC antibody (HA722584) at 1/1,000 dilution.

    Lane 1: HeLa cell lysate
    Lane 2: THP-1 cell lysate
    Lane 3: 293T cell lysate
    Lane 4: Mouse liver tissue lysate
    Lane 5: Mouse kidney tissue lysate
    Lane 6: Rat liver tissue lysate
    Lane 7: Rat kidney tissue lysate

    Lysates/proteins at 20 µg/Lane.

    Predicted band size: 19 kDa
    Observed band size: 15 kDa

    Exposure time: 20 seconds; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA722584) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-SDHC antibody (<a href="/products/HA722584" style="font-weight: bold;text-decoration: underline;">HA722584</a>) at 1/5,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA722584" style="font-weight: bold;text-decoration: underline;">HA722584</a>) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-SDHC antibody (HA722584) at 1/5,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722584) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-SDHC antibody (<a href="/products/HA722584" style="font-weight: bold;text-decoration: underline;">HA722584</a>) at 1/5,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA722584" style="font-weight: bold;text-decoration: underline;">HA722584</a>) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-SDHC antibody (HA722584) at 1/5,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722584) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-SDHC antibody (<a href="/products/HA722584" style="font-weight: bold;text-decoration: underline;">HA722584</a>) at 1/5,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA722584" style="font-weight: bold;text-decoration: underline;">HA722584</a>) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-SDHC antibody (HA722584) at 1/5,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722584) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
