Platelet Derived Growth Factor (PDGF) is a mitogen for mesenchyme- and glia-derived cells. PDGF consists of two chains, A and B, which dimerize to form functionally distinct isoforms, PDGF-AA, PDGF-AB, and PDGF-BB. These three isoforms bind with different affinities to two receptor types, a and b, which are endowed with protein tyrosine kinase domains and undergo either homo- or heterodimerization as a consequence of ligand binding. Ligand stimulation of PDGFR-b leads to autophosphorylation at Tyr-857, which is the major autophosphorylation site, and Tyr-751, which is the major in vitro phosphorylation site. Autophosphorylation of Tyr-751, which lies in the kinase insert region, is required for binding of phosphatidylinositol-3 kinase to the receptor. These auto-phosphorylation events largely contribute to signal transduction through the PDGF receptor. Mutations in PDGFRB are mainly associated with the clonal eosinophilia class of malignancies.
Background References
1. Kumar, A. et al. 2010. Platelet-derived growth factor-DD targeting arrests pathological angiogenesis by modulating glycogen synthase kinase-3beta phosphorylation. J. Biol. Chem. 285: 15500-15510.
2. Siegbahn, A. et al. 2008. TF/FVIIa transactivate PDGFRbeta to regulate PDGF-BB-induced chemotaxis in different cell types: involvement of Src and PLC. Arterioscler. Thromb. Vasc. Biol. 28: 135-141.

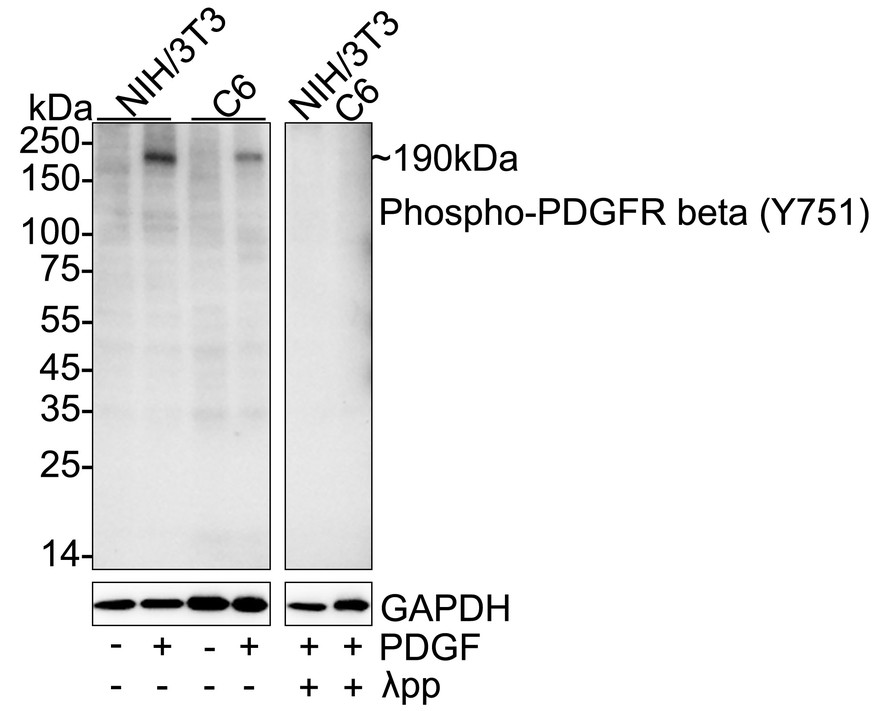

Western blot analysis of Phospho-PDGFR beta (Y751) on different lysates with Rabbit anti-Phospho-PDGFR beta (Y751) antibody (HA723550) at 1/5,000 dilution.
Lane 1: NIH/3T3 cell lysate Lane 2: NIH/3T3 treated with 100ng/mL PDGF for 5 minutes cell lysate Lane 3: C6 cell lysate Lane 4: C6 treated with 100ng/mL PDGF for 5 minutes cell lysate Lane 5: NIH/3T3 treated with 100ng/mL PDGF for 5 minutes cell lysate, then the membrane treated with λpp for 1 hour Lane 6: C6 treated with 100ng/mL PDGF for 5 minutes cell lysate, then the membrane treated with λpp for 1 hour
Lysates/proteins at 20 µg/Lane.
Predicted band size: 124 kDa Observed band size: 190 kDa
Exposure time: 3 minutes; ECL: K1801;
4-20% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA723550) at 1/5,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.
Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
