CTGF Recombinant Rabbit Monoclonal Antibody [PSH15-64] - BSA and Azide free

Usd: 649

Specification

Bulk Order Quote | Customization Request

Catalog# HA751575

CTGF Recombinant Rabbit Monoclonal Antibody [PSH15-64] - BSA and Azide free

Application

  • WB

  • IHC-P

  • IF-Cell

Reactivity

  • Human

  • Mouse

  • Rat

With BSA and Azide
Conjugation

  • unconjugated

Overview

Product Name

CTGF Recombinant Rabbit Monoclonal Antibody [PSH15-64] - BSA and Azide free

Antibody Type

Recombinant Rabbit monoclonal Antibody

Immunogen

Recombinant protein within human CTGF aa 1-349.

Species Reactivity

Human, Mouse, Rat

Validated Applications

WB, IHC-P, IF-Cell

Target Molecular Weight

Predicted band size: 38 kDa

Positive Control

PANC-1 cell lysate, HepG2 cell lysate, HFF-1 cell lysate, Mouse heart tissue lysate, Rat heart tissue lysate, human heart tissue, human kidney tissue, mouse heart tissue, mouse kidney tissue, rat heart tissue, rat kidney tissue, HepG2.

Conjugation

unconjugated

Clone Number

PSH15-64

Product Features

Form

Liquid

Concentration

1mg/ml

Storage Instructions

Store at 2-8℃. Avoid freeze.

Storage Buffer

1*PBS (pH7.4).

Isotype

IgG

Purification Method

Protein A affinity purified.

Application Dilution

  • WB

  • 1:5,000

  • IHC-P

  • 1:200-1:1,000

  • IF-Cell

  • 1:2,000

Target

Function

CTGF, also known as CCN2 or connective tissue growth factor, is a matricellular protein of the CCN family of extracellular matrix-associated heparin-binding proteins (see also CCN intercellular signaling protein). CTGF has important roles in many biological processes, including cell adhesion, migration, proliferation, angiogenesis, skeletal development, and tissue wound repair, and is critically involved in fibrotic disease and several forms of cancers.

Background References

1. Chen B et al. H. pylori-induced NF-kappaB-PIEZO1-YAP1-CTGF axis drives gastric cancer progression and cancer-associated fibroblast-mediated tumour microenvironment remodelling. Clin Transl Med. 2023 Nov

2. Makino Y et al. STAT3 is Activated by CTGF-mediated Tumor-stroma Cross Talk to Promote HCC Progression. Cell Mol Gastroenterol Hepatol. 2023

Subcellular Location

Secreted, extracellular space, extracellular matrix.

UNIPROT

SwissProt: P29279 Human

SwissProt: P29268 Mouse

SwissProt: Q9R1E9 Rat

Synonyms

CCN 2 antibody

CCN family member 2 antibody

CCN2 antibody

Connective tissue growth factor antibody

Ctgf antibody

CTGF_HUMAN antibody

Hcs 24 antibody

Hcs24 antibody

Hypertrophic chondrocyte specific protein 24 antibody

Hypertrophic chondrocyte-specific gene product 24 antibody

Expand

Images

  • <span style="font-weight: bold;">☑ Relative expression (RE)</span><br /><br />Western blot analysis of CTGF on different lysates with Rabbit anti-CTGF antibody (<a href="/products/HA751575" style="font-weight: bold;text-decoration: underline;">HA751575</a>) at 1/5,000 dilution.<br /><br />Lane 1: PANC-1 cell lysate (20 µg/Lane)<br />Lane 2: HepG2 cell lysate (20 µg/Lane)<br />Lane 3: HEK-293 cell lysate (negative) (20 µg/Lane)<br />Lane 4: HFF-1 cell lysate (20 µg/Lane)<br />Lane 5: Mouse heart tissue lysate (40 µg/Lane)<br />Lane 6: Rat heart tissue lysate (40 µg/Lane)<br /><br />Predicted band size: 38 kDa<br />Observed band size: 35 kDa<br />Exposure time: 25 seconds; ECL: K1801;<br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA751575" style="font-weight: bold;text-decoration: underline;">HA751575</a>) at 1/5,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

    ☑ Relative expression (RE)

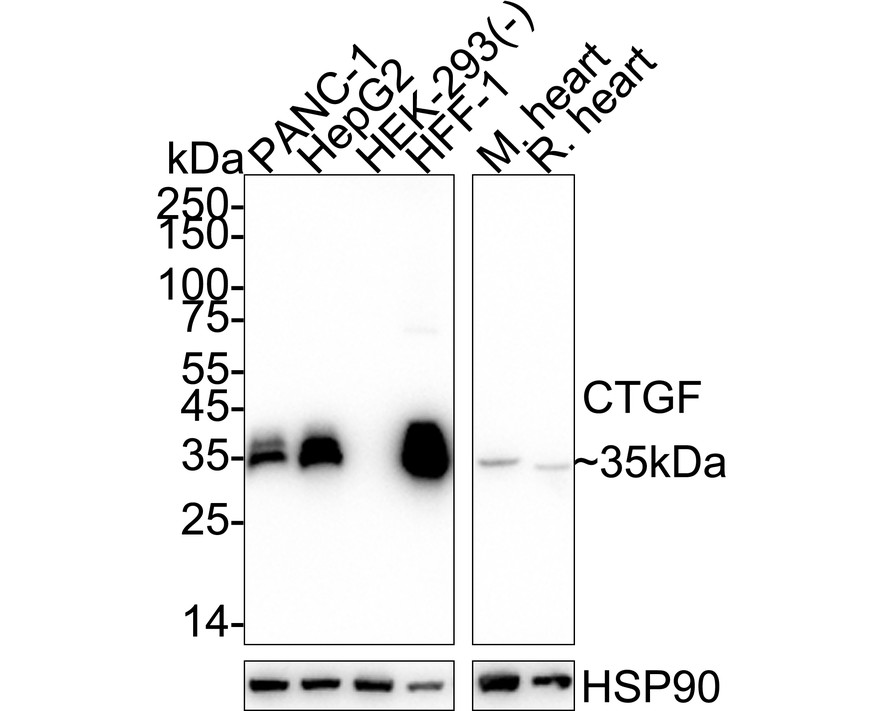

    Western blot analysis of CTGF on different lysates with Rabbit anti-CTGF antibody (HA751575) at 1/5,000 dilution.

    Lane 1: PANC-1 cell lysate (20 µg/Lane)
    Lane 2: HepG2 cell lysate (20 µg/Lane)
    Lane 3: HEK-293 cell lysate (negative) (20 µg/Lane)
    Lane 4: HFF-1 cell lysate (20 µg/Lane)
    Lane 5: Mouse heart tissue lysate (40 µg/Lane)
    Lane 6: Rat heart tissue lysate (40 µg/Lane)

    Predicted band size: 38 kDa
    Observed band size: 35 kDa
    Exposure time: 25 seconds; ECL: K1801;
    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA751575) at 1/5,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • Immunohistochemical analysis of paraffin-embedded human heart tissue with Rabbit anti-CTGF antibody (<a href="/products/HA751575" style="font-weight: bold;text-decoration: underline;">HA751575</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA751575" style="font-weight: bold;text-decoration: underline;">HA751575</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human heart tissue with Rabbit anti-CTGF antibody (HA751575) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751575) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-CTGF antibody (<a href="/products/HA751575" style="font-weight: bold;text-decoration: underline;">HA751575</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA751575" style="font-weight: bold;text-decoration: underline;">HA751575</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-CTGF antibody (HA751575) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751575) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse heart tissue with Rabbit anti-CTGF antibody (<a href="/products/HA751575" style="font-weight: bold;text-decoration: underline;">HA751575</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA751575" style="font-weight: bold;text-decoration: underline;">HA751575</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse heart tissue with Rabbit anti-CTGF antibody (HA751575) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751575) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-CTGF antibody (<a href="/products/HA751575" style="font-weight: bold;text-decoration: underline;">HA751575</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA751575" style="font-weight: bold;text-decoration: underline;">HA751575</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-CTGF antibody (HA751575) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751575) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat heart tissue with Rabbit anti-CTGF antibody (<a href="/products/HA751575" style="font-weight: bold;text-decoration: underline;">HA751575</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA751575" style="font-weight: bold;text-decoration: underline;">HA751575</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat heart tissue with Rabbit anti-CTGF antibody (HA751575) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751575) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-CTGF antibody (<a href="/products/HA751575" style="font-weight: bold;text-decoration: underline;">HA751575</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA751575" style="font-weight: bold;text-decoration: underline;">HA751575</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-CTGF antibody (HA751575) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751575) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • <span style="font-weight: bold;">☑ Relative expression (RE)</span><br /><br />Immunocytochemistry analysis of HepG2 (positive) and MCF7 (low expression) labeling CTGF with Rabbit anti-CTGF antibody (<a href="/products/HA751575" style="font-weight: bold;text-decoration: underline;">HA751575</a>) at 1/2,000 dilution.<br /><br />Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-CTGF antibody (<a href="/products/HA751575" style="font-weight: bold;text-decoration: underline;">HA751575</a>) at 1/2,000 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor&trade; 488, <a href="/products/HA1121" style="font-weight: bold;text-decoration: underline;">HA1121</a>) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.<br /><br />Beta tubulin (<a href="/products/HA601187" style="font-weight: bold;text-decoration: underline;">HA601187</a>, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor&trade; 594, <a href="/products/HA1126" style="font-weight: bold;text-decoration: underline;">HA1126</a>) was used as the secondary antibody at 1/1,000 dilution.

    ☑ Relative expression (RE)

    Immunocytochemistry analysis of HepG2 (positive) and MCF7 (low expression) labeling CTGF with Rabbit anti-CTGF antibody (HA751575) at 1/2,000 dilution.

    Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-CTGF antibody (HA751575) at 1/2,000 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

    Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
