SV2A Recombinant Antibody [PSH10-69] - Rat IgG1 (Chimeric)

Usd: 315

Specification

Bulk Order Quote | Customization Request

Catalog# HA601421

SV2A Recombinant Antibody [PSH10-69] - Rat IgG1 (Chimeric)

Application

  • IHC-Fr

  • IHC-P

  • WB

Reactivity

  • Mouse

  • Rat

BSA and Azide free
Predicted reactivity

  • Cynomolgus monkey

  • Pig

Conjugation

  • unconjugated

Overview

Product Name

SV2A Recombinant Antibody [PSH10-69] - Rat IgG1 (Chimeric)

Antibody Type

Recombinant Chimeric Antibody

Immunogen

Recombinant protein within N terminal Human SV2A.

Species Reactivity

Mouse, Rat (Predicted: Cynomolgus monkey, Pig)

Predicted species support after-sales service

Validated Applications

IHC-Fr, IHC-P, WB

Target Molecular Weight

Predicted band size: 83 kDa

Positive Control

Mouse cerebellum tissue, mouse pancreas tissue, rat cerebellum tissue, Mouse brain tissue lysate, Rat brain tissue lysate.

Conjugation

unconjugated

Clone Number

PSH10-69

Reactivity Data

IHC-Fr IHC-P WB
Mouse
Tested Tested
Tested Tested
Tested Tested
Rat
Tested Tested
Tested Tested
Cynomolgus Monkey
Published
Published
Published
Pig
Published
Published
Published

Product Features

Form

Liquid

Concentration

1 mg/mL.(The concentration of this product may be batch-dependent)

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). Store at -20℃ long term.

Storage Buffer

1*PBS (pH7.4), 0.1% BSA, 40% Glycerol, 0.2% Proclean 950.

Purification Method

Protein A affinity purified.

Application Dilution

  • IHC-Fr

  • 1:500

  • IHC-P

  • 1:200-1:500

  • WB

  • 1:5,000

Target

Function

Synaptic vesicle glycoprotein 2A (SV2A) is a transmembrane protein belonging to a family of keratan sulfate proteoglycans, located on the synaptic vesicles of mammalian neuronal and endocrine cells. It's encoded by the SV2A gene. SV2A is the most widely expressed isoform of the SV2 family (which also includes the SV2B and SV2C proteins) found in all brain regions. The role of the SV2 proteins is not well understood, however they are thought to be involved in regulating vesicular processes. The SV2A protein is a target of the anti-epileptic drugs (anticonvulsants) levetiracetam and brivaracetam but it is not clear how these drug affect SV2A activity.

Background References

1. Bavarsad MS et al. SV2A PET imaging in human neurodegenerative diseases. Front Aging Neurosci. 2024 Apr

2. Wu PP et al. Development of SV2A Ligands for Epilepsy Treatment: A Review of Levetiracetam, Brivaracetam, and Padsevonil. Neurosci Bull. 2024 May

Subcellular Location

Presynapse, Cytoplasmic vesicle, secretory vesicle, synaptic vesicle membrane.

UNIPROT

SwissProt: Q9JIS5 Mouse

SwissProt: Q02563 Rat

Synonyms

KIAA0736 antibody

OTTHUMP00000014065 antibody

SV2 antibody

Sv2a antibody

SV2A_HUMAN antibody

Synaptic vesicle glycoprotein 2 antibody

Synaptic vesicle glycoprotein 2A antibody

Synaptic vesicle protein 2a antibody

Images

  • Application: IHC-Fr<br /><br />Species: Mouse<br /><br />Site: Cerebellum<br /><br />Sample: Frozen section<br /><br />Antibody concentration: 1:500<br /><br />Antigen retrieval: Recommend. The section was pre-treated using 1% SDS buffer (in PBS, pH 7.4) for 5 minutes at room temperature.

    Application: IHC-Fr

    Species: Mouse

    Site: Cerebellum

    Sample: Frozen section

    Antibody concentration: 1:500

    Antigen retrieval: Recommend. The section was pre-treated using 1% SDS buffer (in PBS, pH 7.4) for 5 minutes at room temperature.

  • Immunohistochemical analysis of paraffin-embedded mouse cerebellum tissue with Rat anti-SV2A antibody (<a href="/products/HA601421" style="font-weight: bold;text-decoration: underline;">HA601421</a>) at 1/500 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA601421" style="font-weight: bold;text-decoration: underline;">HA601421</a>) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse cerebellum tissue with Rat anti-SV2A antibody (HA601421) at 1/500 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA601421) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse pancreas tissue with Rat anti-SV2A antibody (<a href="/products/HA601421" style="font-weight: bold;text-decoration: underline;">HA601421</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA601421" style="font-weight: bold;text-decoration: underline;">HA601421</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse pancreas tissue with Rat anti-SV2A antibody (HA601421) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA601421) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat cerebellum tissue with Rat anti-SV2A antibody (<a href="/products/HA601421" style="font-weight: bold;text-decoration: underline;">HA601421</a>) at 1/500 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA601421" style="font-weight: bold;text-decoration: underline;">HA601421</a>) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat cerebellum tissue with Rat anti-SV2A antibody (HA601421) at 1/500 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA601421) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • <span style="font-weight: bold;">☑ Relative expression (RE)</span><br /><br />Western blot analysis of SV2A on different lysates with Rat anti-SV2A antibody (<a href="/products/HA601421" style="font-weight: bold;text-decoration: underline;">HA601421</a>) at 1/5,000 dilution.<br /><br />Lane 1: Mouse brain tissue lysate<br />Lane 2: NIH/3T3 cell lysate (negative)<br />Lane 3: Rat brain tissue lysate<br /><br />Lysates/proteins at 20 µg/Lane.<br /><br />Predicted band size: 83 kDa<br />Observed band size: 83 kDa<br /><br />Exposure time: 6 seconds; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA601421" style="font-weight: bold;text-decoration: underline;">HA601421</a>) at 1/5,000 dilution was used in primary antibody dilution (<a href="/products/K1803" style="font-weight: bold;text-decoration: underline;">K1803</a>) at 4℃ overnight. Goat Anti-Rat IgG H&L - HRP Secondary Antibody (<a href="/products/HA1023" style="font-weight: bold;text-decoration: underline;">HA1023</a>) at 1/5,000 dilution was used for 1 hour at room temperature.

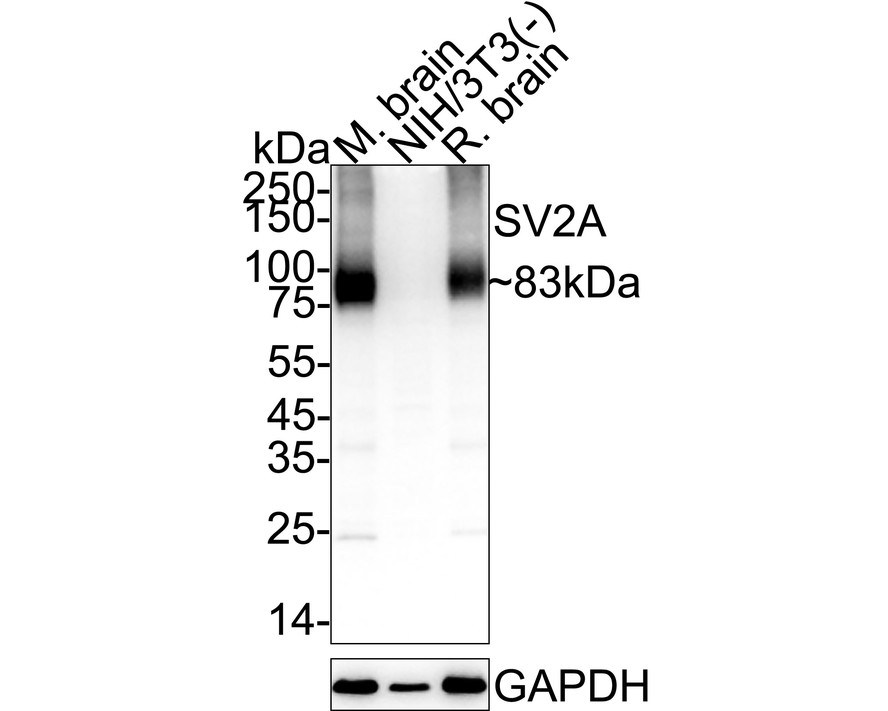

    ☑ Relative expression (RE)

    Western blot analysis of SV2A on different lysates with Rat anti-SV2A antibody (HA601421) at 1/5,000 dilution.

    Lane 1: Mouse brain tissue lysate
    Lane 2: NIH/3T3 cell lysate (negative)
    Lane 3: Rat brain tissue lysate

    Lysates/proteins at 20 µg/Lane.

    Predicted band size: 83 kDa
    Observed band size: 83 kDa

    Exposure time: 6 seconds; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA601421) at 1/5,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rat IgG H&L - HRP Secondary Antibody (HA1023) at 1/5,000 dilution was used for 1 hour at room temperature.

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
