TOM1 Recombinant Rabbit Monoclonal Antibody [PSH03-38]

Usd: 385

Specification

Bulk Order Quote | Customization Request

Catalog# HA721983

TOM1 Recombinant Rabbit Monoclonal Antibody [PSH03-38]

Application

  • WB

  • IF-Tissue

  • IHC-P

Reactivity

  • Human

  • Mouse

  • Rat

BSA and Azide free
Conjugation

  • unconjugated

Overview

Product Name

TOM1 Recombinant Rabbit Monoclonal Antibody [PSH03-38]

Antibody Type

Recombinant Rabbit monoclonal Antibody

Immunogen

Recombinant protein within human TOM1 aa 300-450.

Species Reactivity

Human, Mouse, Rat

Validated Applications

WB, IF-Tissue, IHC-P

Molecular Weight

Predicted band size: 54 kDa

Positive Control

293T cell lysate, U-2 OS cell lysate, A431 cell lysate, K-562 cell lysate, HepG2 cell lysate, HeLa cell lysate, JAR cell lysate, THP-1 cell lysate, C2C12 cell lysate, PC-12 cell lysate, mouse heart tissue lysate, mouse skeletal muscle tissue lysate, rat liver tissue lysate, human stomach carcinoma tissue, human kidney tissue, human liver tissue, human stomach tissue, mouse stomach tissue, rat stomach tissue.

Conjugation

unconjugated

Clone Number

PSH03-38

RRID

AB_3096694

Product Features

Form

Liquid

Concentration

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). Store at -20℃ long term.

Storage Buffer

PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG

Purification Method

Protein A affinity purified.

Application Dilution

  • WB

  • 1:2,000

  • IF-Tissue

  • 1:200

  • IHC-P

  • 1:200-1:1,000

Target

Function

Target of Myb protein 1 is a protein that in humans is encoded by the TOM1 gene. The specific function of this gene has not yet been determined, yet it may involve the translocation of growth factor receptor complexes to the lysosome for degradation. This gene is localized to 22q13.1, with HMOX1 and MCM5 distally and HMG2L1 proximally positioned. TOM1 has been shown to interact with TOLLIP and ZFYVE16.

Background References

1. Zhang H et al. TOM1 family conservation within the plant kingdom for tobacco mosaic virus accumulation. Mol Plant Pathol. 2023 Nov

2. Roach TG et al. Protein Trafficking or Cell Signaling: A Dilemma for the Adaptor Protein TOM1. Front Cell Dev Biol. 2021 Feb

Subcellular Location

Cytoplasm, Endosome membrane, Early endosome membrane.

UNIPROT

SwissProt: O60784 Human

SwissProt: O88746 Mouse

SwissProt: Q5XI21 Rat

Synonyms

FLJ33404 antibody

OTTHUMP00000028777 antibody

Target of myb 1 antibody

Target of Myb protein 1 antibody

Target of myb1 antibody

TOM 1 antibody

TOM1 antibody

TOM1_HUMAN antibody

Images

  • Western blot analysis of TOM1 on different lysates with Rabbit anti-TOM1 antibody (<a href="/products/HA721983" style="font-weight: bold;text-decoration: underline;">HA721983</a>) at 1/2,000 dilution.<br /><br />Lane 1: 293T cell lysate (20 µg/Lane)<br />Lane 2: U-2 OS cell lysate (20 µg/Lane)<br />Lane 3: A431 cell lysate (20 µg/Lane)<br />Lane 4: K-562 cell lysate (20 µg/Lane)<br />Lane 5: HepG2 cell lysate (20 µg/Lane)<br />Lane 6: HeLa cell lysate (20 µg/Lane)<br />Lane 7: JAR cell lysate (20 µg/Lane)<br />Lane 8: THP-1 cell lysate (20 µg/Lane)<br />Lane 9: C2C12 cell lysate (20 µg/Lane)<br />Lane 10: PC-12 cell lysate (20 µg/Lane)<br />Lane 11: Mouse heart tissue lysate (40 µg/Lane)<br />Lane 12: Mouse skeletal muscle tissue lysate (40 µg/Lane)<br />Lane 13: Rat liver tissue lysate (40 µg/Lane)<br /><br />Predicted band size: 54 kDa<br />Observed band size: 54 kDa<br /><br />Exposure time: 3 minutes;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA721983" style="font-weight: bold;text-decoration: underline;">HA721983</a>) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

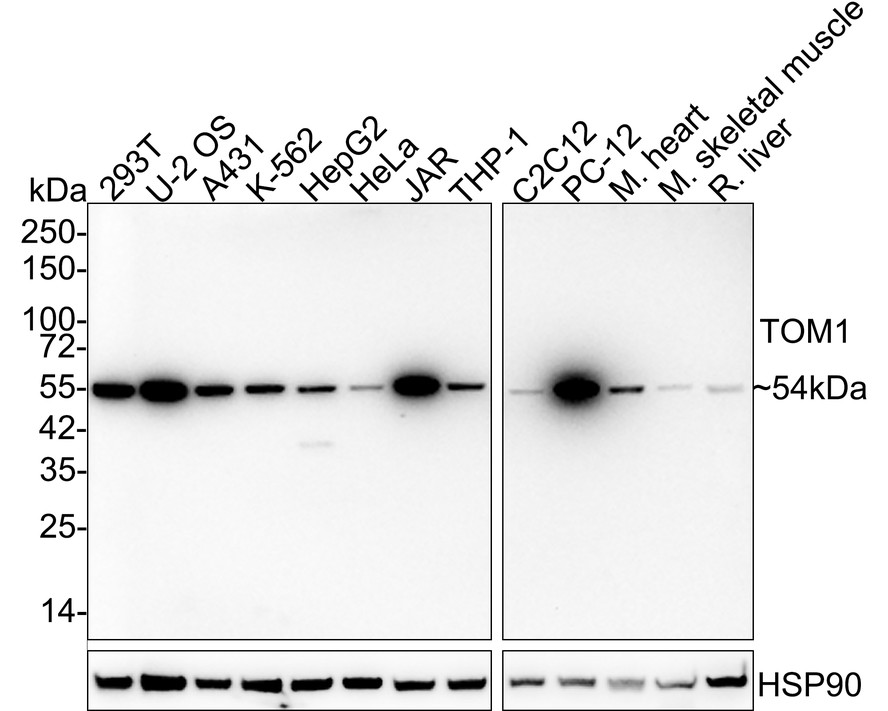

    Western blot analysis of TOM1 on different lysates with Rabbit anti-TOM1 antibody (HA721983) at 1/2,000 dilution.

    Lane 1: 293T cell lysate (20 µg/Lane)
    Lane 2: U-2 OS cell lysate (20 µg/Lane)
    Lane 3: A431 cell lysate (20 µg/Lane)
    Lane 4: K-562 cell lysate (20 µg/Lane)
    Lane 5: HepG2 cell lysate (20 µg/Lane)
    Lane 6: HeLa cell lysate (20 µg/Lane)
    Lane 7: JAR cell lysate (20 µg/Lane)
    Lane 8: THP-1 cell lysate (20 µg/Lane)
    Lane 9: C2C12 cell lysate (20 µg/Lane)
    Lane 10: PC-12 cell lysate (20 µg/Lane)
    Lane 11: Mouse heart tissue lysate (40 µg/Lane)
    Lane 12: Mouse skeletal muscle tissue lysate (40 µg/Lane)
    Lane 13: Rat liver tissue lysate (40 µg/Lane)

    Predicted band size: 54 kDa
    Observed band size: 54 kDa

    Exposure time: 3 minutes;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721983) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • Immunofluorescence analysis of paraffin-embedded human stomach carcinoma tissue labeling TOM1 with Rabbit anti-TOM1 antibody (<a href="/products/HA721983" style="font-weight: bold;text-decoration: underline;">HA721983</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (<a href="/products/HA721983" style="font-weight: bold;text-decoration: underline;">HA721983</a>, green) at 1/200 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor&trade; 488, <a href="/products/HA1121" style="font-weight: bold;text-decoration: underline;">HA1121</a>) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

    Immunofluorescence analysis of paraffin-embedded human stomach carcinoma tissue labeling TOM1 with Rabbit anti-TOM1 antibody (HA721983) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (HA721983, green) at 1/200 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

  • <span style="font-weight: bold;">☑ Knockdown (KD)</span><br /><br />Western blot analysis of TOM1 on different lysates with Rabbit anti-TOM1 antibody (<a href="/products/HA721983" style="font-weight: bold;text-decoration: underline;">HA721983</a>) at 1/5,000 dilution.<br /><br />Lane 1: HAP1-parental cell lysate<br />Lane 2: HAP1-TOM1 KD cell lysate<br /><br />Lysates/proteins at 10 µg/Lane.<br /><br />Predicted band size: 54 kDa<br />Observed band size: 54 kDa<br /><br />Exposure time: 3 minutes; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA721983" style="font-weight: bold;text-decoration: underline;">HA721983</a>) at 1/5,000 dilution was used in primary antibody dilution (<a href="/products/K1803" style="font-weight: bold;text-decoration: underline;">K1803</a>) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

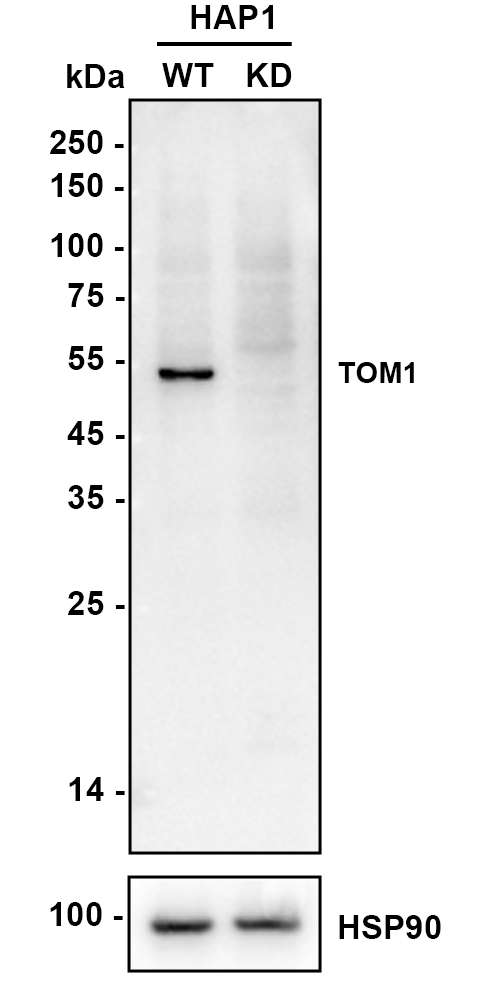

    ☑ Knockdown (KD)

    Western blot analysis of TOM1 on different lysates with Rabbit anti-TOM1 antibody (HA721983) at 1/5,000 dilution.

    Lane 1: HAP1-parental cell lysate
    Lane 2: HAP1-TOM1 KD cell lysate

    Lysates/proteins at 10 µg/Lane.

    Predicted band size: 54 kDa
    Observed band size: 54 kDa

    Exposure time: 3 minutes; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721983) at 1/5,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-TOM1 antibody (<a href="/products/HA721983" style="font-weight: bold;text-decoration: underline;">HA721983</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA721983" style="font-weight: bold;text-decoration: underline;">HA721983</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-TOM1 antibody (HA721983) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721983) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded human liver tissue with Rabbit anti-TOM1 antibody (<a href="/products/HA721983" style="font-weight: bold;text-decoration: underline;">HA721983</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA721983" style="font-weight: bold;text-decoration: underline;">HA721983</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human liver tissue with Rabbit anti-TOM1 antibody (HA721983) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721983) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded human stomach tissue with Rabbit anti-TOM1 antibody (<a href="/products/HA721983" style="font-weight: bold;text-decoration: underline;">HA721983</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA721983" style="font-weight: bold;text-decoration: underline;">HA721983</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human stomach tissue with Rabbit anti-TOM1 antibody (HA721983) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721983) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse stomach tissue with Rabbit anti-TOM1 antibody (<a href="/products/HA721983" style="font-weight: bold;text-decoration: underline;">HA721983</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA721983" style="font-weight: bold;text-decoration: underline;">HA721983</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse stomach tissue with Rabbit anti-TOM1 antibody (HA721983) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721983) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat stomach tissue with Rabbit anti-TOM1 antibody (<a href="/products/HA721983" style="font-weight: bold;text-decoration: underline;">HA721983</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA721983" style="font-weight: bold;text-decoration: underline;">HA721983</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat stomach tissue with Rabbit anti-TOM1 antibody (HA721983) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721983) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
